Product Description

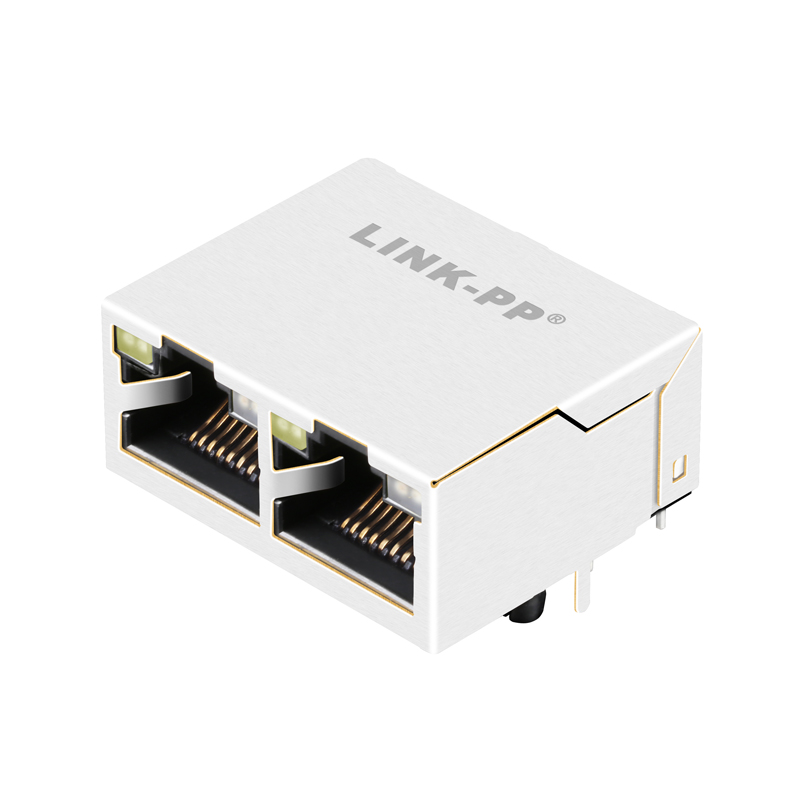

Shielded Magnetic dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

Shielded Magnetic Dual Ports RJ-45 Connector Banner

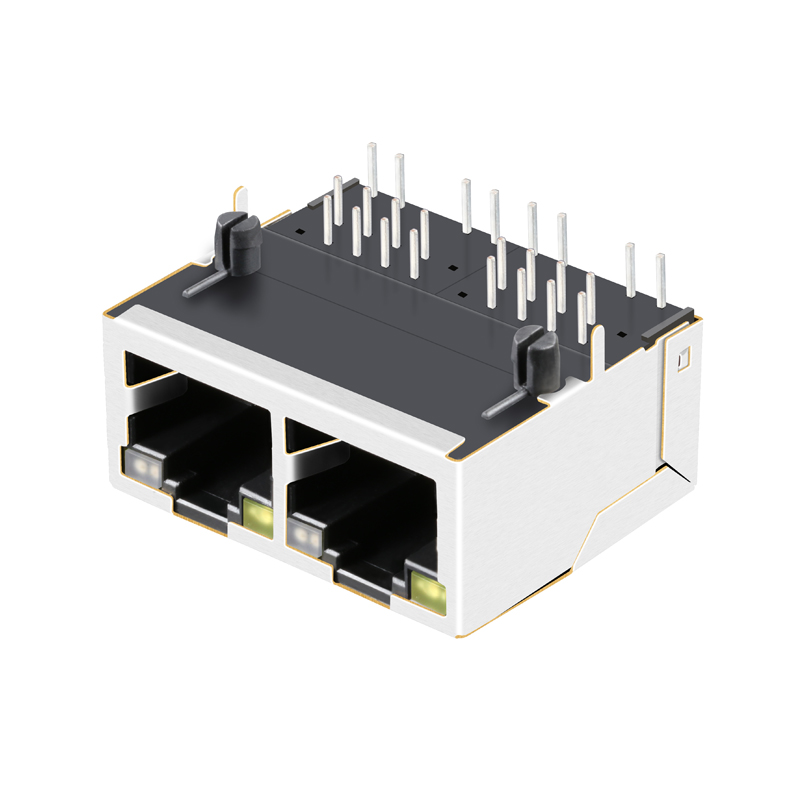

Shielded Magnetic Dual Ports RJ-45 Connector Front View Shielded Magnetic Dual Ports RJ-45 Connector Side View
10/100Base-T 8 Port RJ45 Magjack Division Banner
Part Number 1840538-3 6610128-1 1840538-4 1840538-2
Application-LAN ETHERNET(NoN POE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores Per Port 6
Diodes NO DIODES
LED Option GREEN/GREEN
Latch UP
Number of Ports 1x2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Shielding Shielded
Speed 10/100 Base-T
Temperature 0 ~ 70℃
Turns Ratio RX 1CT:1
Turns Ratio TX 1CT:1
