JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

Product Description

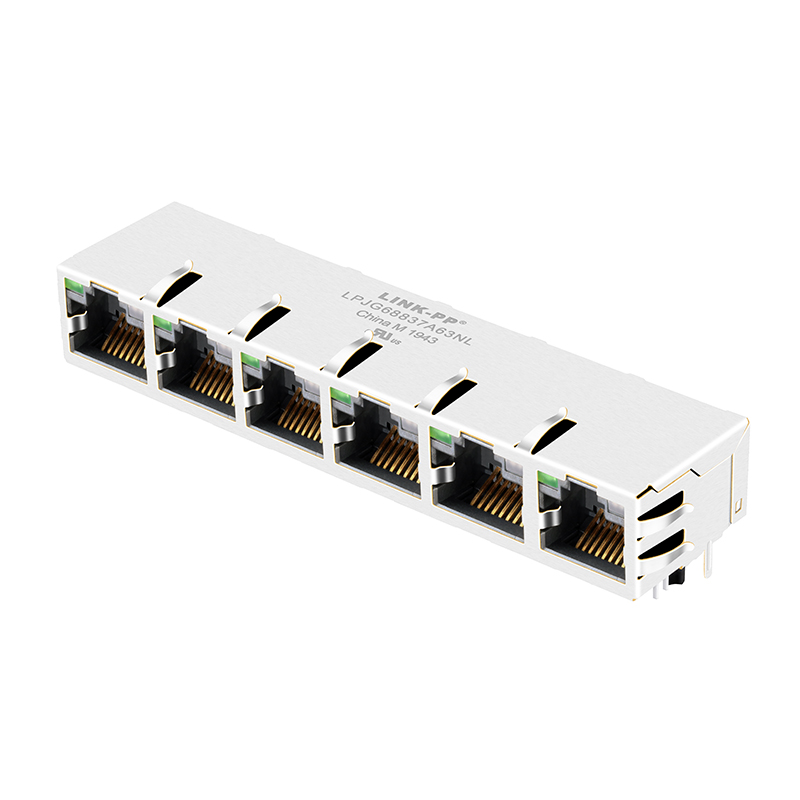

Product View 1

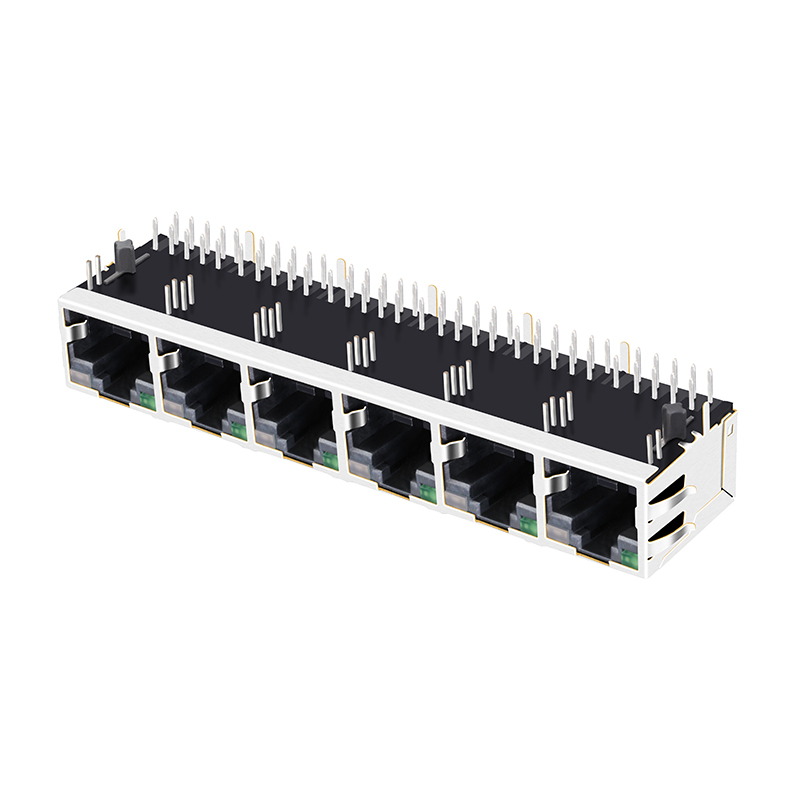

Product View 2
Specification
LINK-PP Part Number LPJG68837A63NL
Pulse Part Number JG0-0070NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Green&Orange Led
Number of Cores per Jack 8
Shielding Shielded, Emi Finger
Number of Ports 1x6 Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C

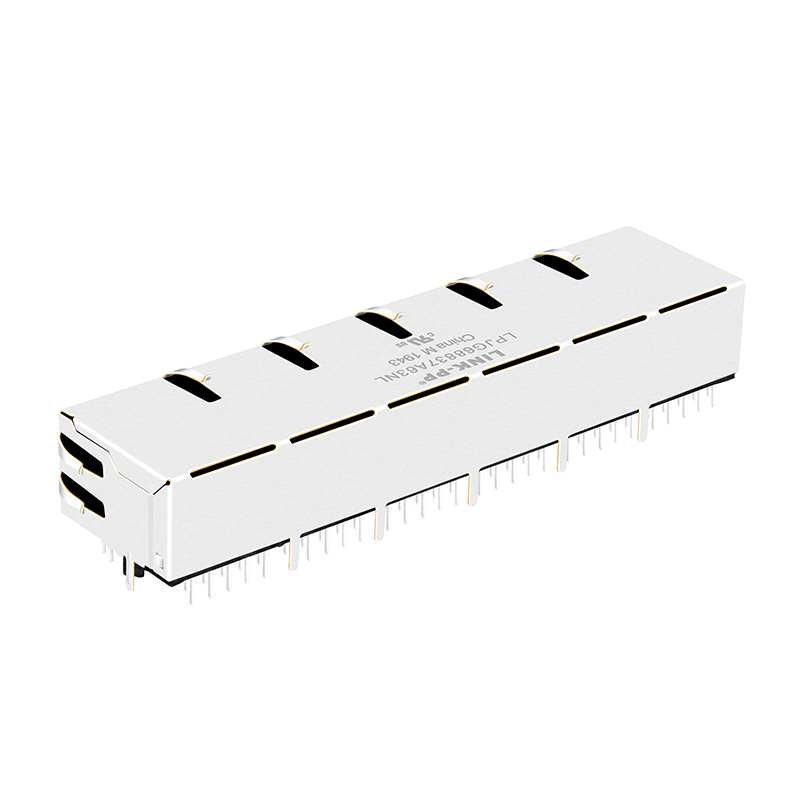

Details 1

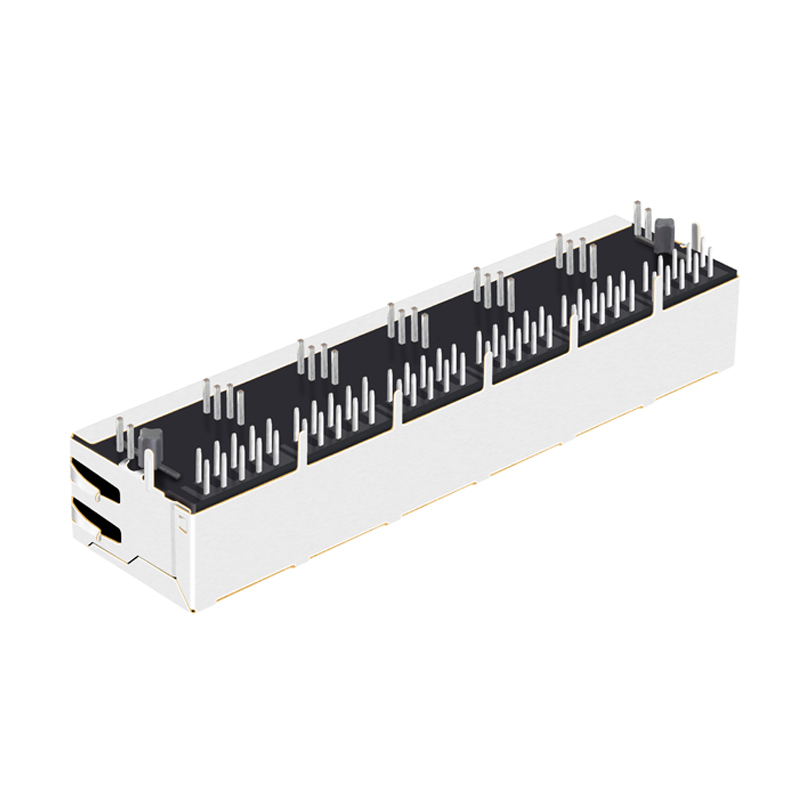

Details 2

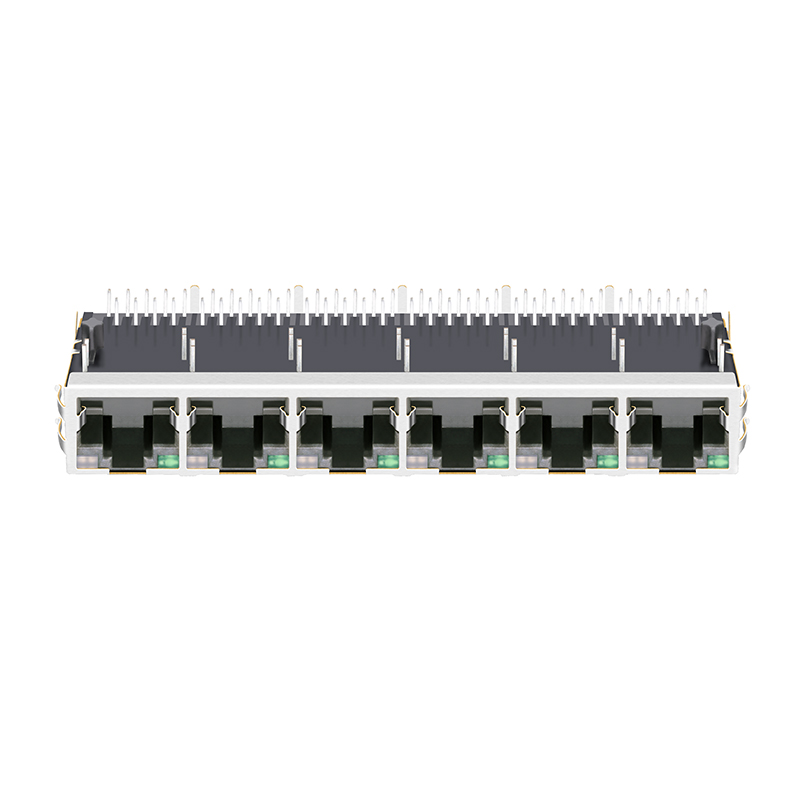

Details 3
Details 4
Details 5
Details 6
Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components as well as strong technical support. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
Main Products
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Factory 1
Factory 2
Factory 3
FAQ
Q1: Are you a manufacturer or trade company?
We are a manufacturer that specialized in RJ45 connectors and LAN Transformer for more than 23 years.
Q2: Can I get some samples?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3: Is OEM service available?
Yes. We have rich experience and good ability to put your design and idea into real products, and we can laser print your brand on the products.
Q4: How about the lead time?
We have a very professional team with high quality, usually we can ship within 30 days.
Q5: What certifications have the products achieved?
Our products are fully certified by ISO9001:2000, ROHS, REACH, CE, and UL.
Q6: What communication equipments are your products used in?
Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
