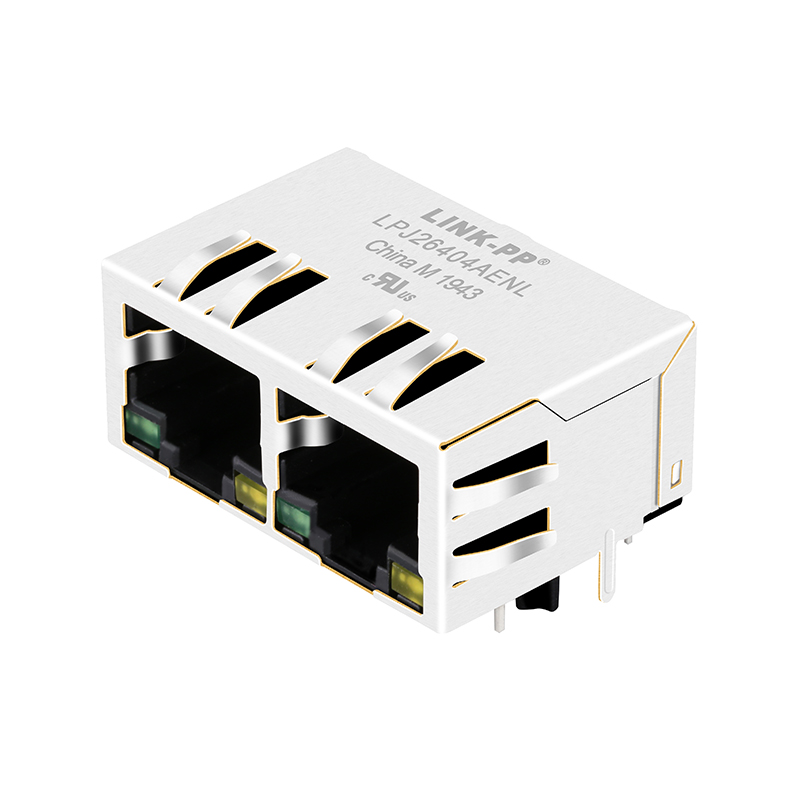

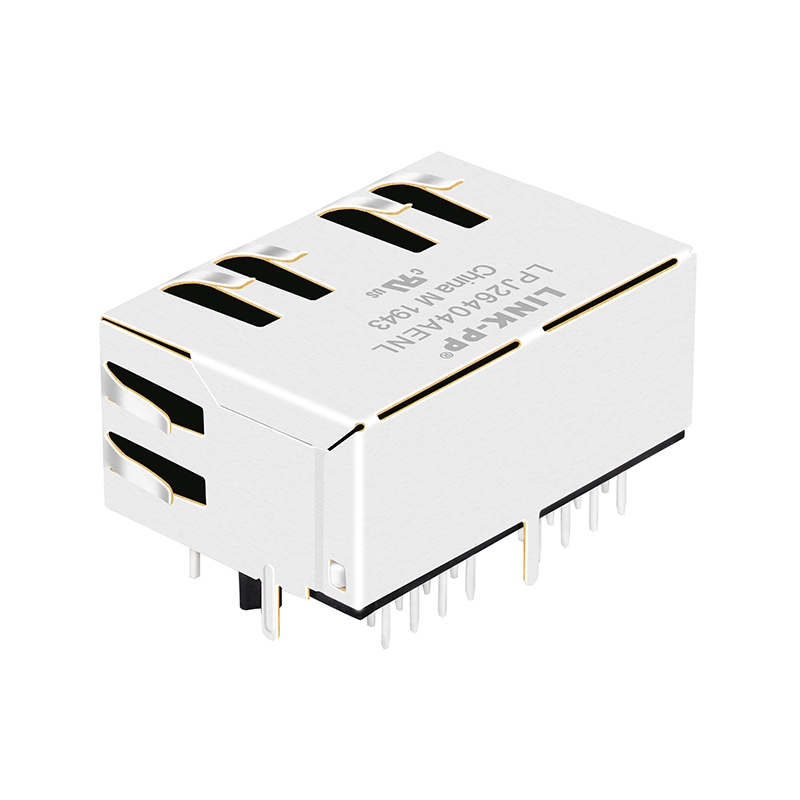

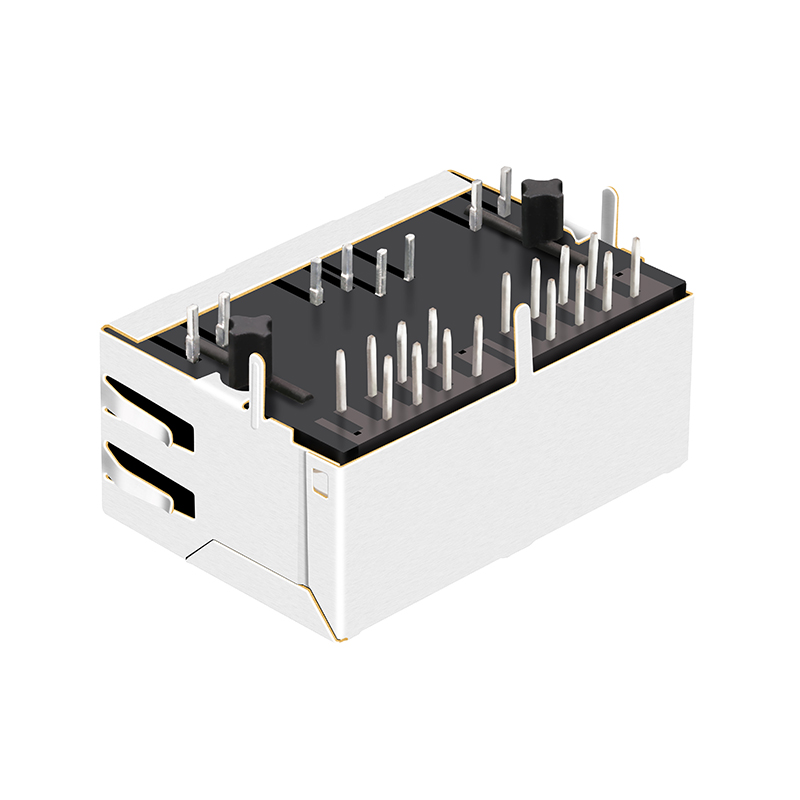

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
1 / 5
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

Send Inquiry

Product Description

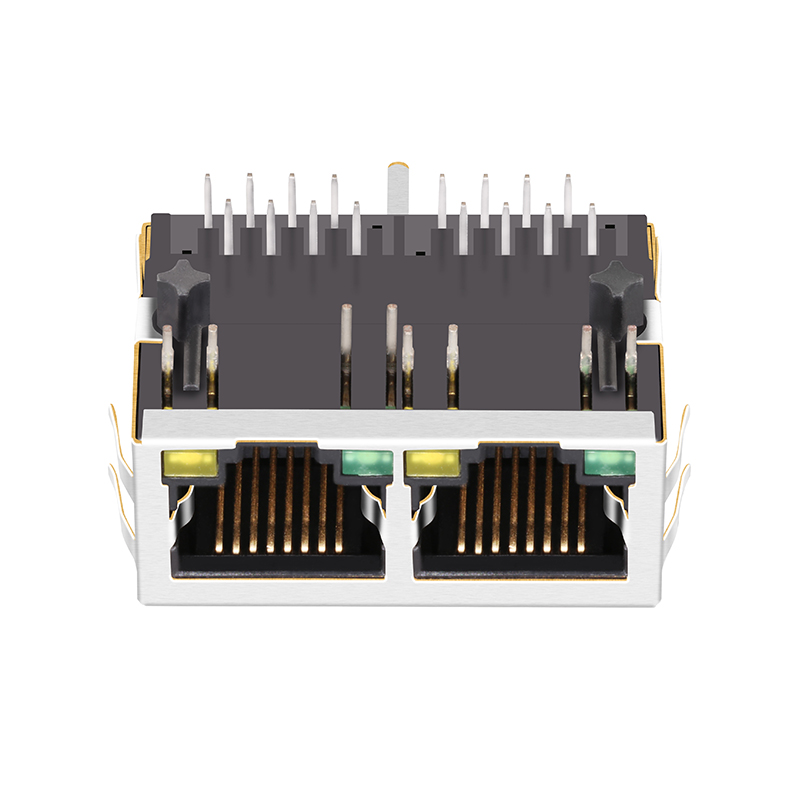

Product View 1

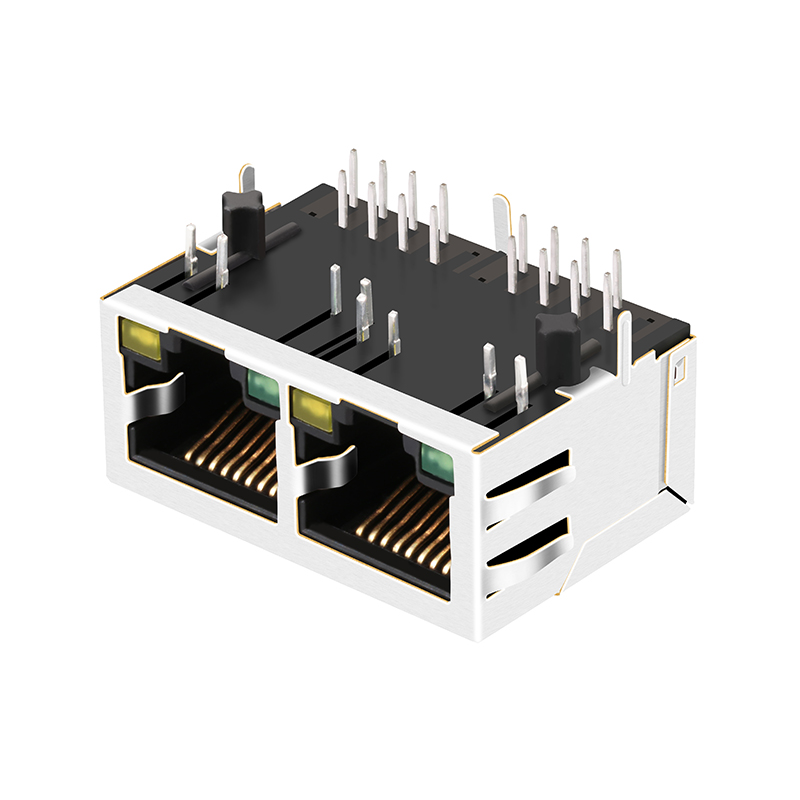

Product View 2
⚙️ Specification
Part NumberLPJ26404AENL
Cross ReferenceJXD0-2005NL / JXR8-1001NL
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(Non_PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen/Yellow Led
Number of Cores per Jack4
ShieldingShielded, Emi Finger
Number of Ports1x2 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C
Technical Drawing 1
Technical Drawing 2
Certification 1
Certification 2
🏢 Manufacturing Excellence

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We utilize advanced manufacturing facilities and test equipment imported from abroad to ensure the highest quality standards. With an abundant productive capacity of 3000K per month, we provide short delivery times and professional complete solutions for magnetic components alongside strong technical support.

Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.

📦 Main Products
✔ 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
✔ RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
✔ T1/E1, T3/DS3/E3/STS-1 interface line transformer
✔ ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Production Line
Quality Control
Testing Equipment
Warehouse
Laboratory
❓ Frequently Asked Questions
Q1: Are you a manufacturer or trade company?
We are a manufacturer that specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Q2: Can I get some samples?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3: Is OEM available?
Yes. We have rich experience and the ability to put your design and idea into a real product. We can laser print your brand on the products.
Q4: How about the lead time?
We have a professional production team. Usually, we can ship within 30 days. For specific order details, please contact our team.
Q5: What is the operating temperature range for these connectors?
Most of our industrial-grade components, including the RJ45 series, support an operating temperature range of -40°C to 85°C.
Q6: Are your products compliant with international standards?
Yes, our products are certified by ISO9001:2000, RoHS, REACH, CE, and UL, ensuring they meet global safety and environmental requirements.
