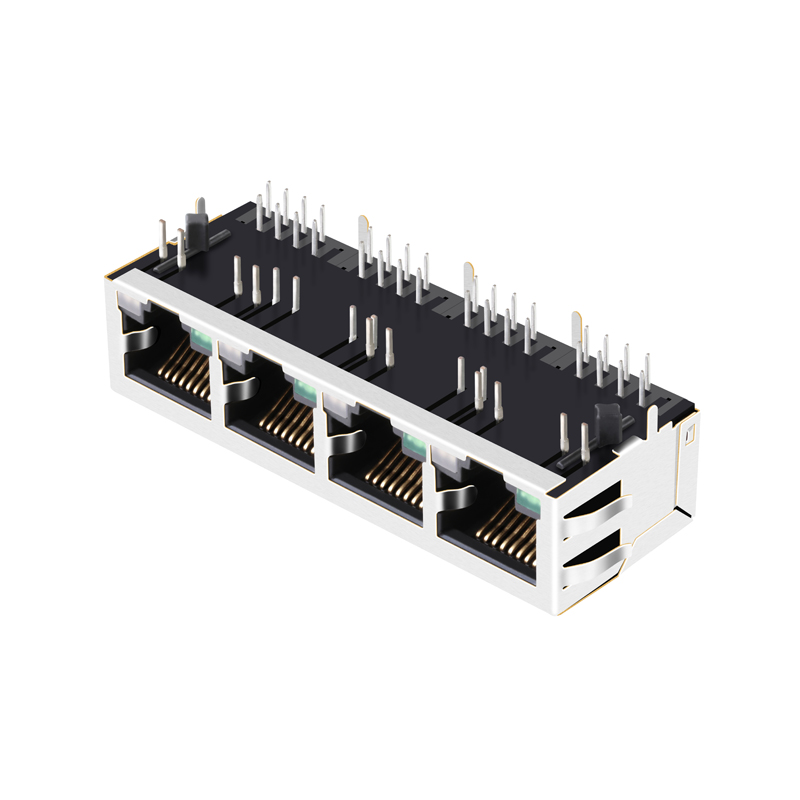

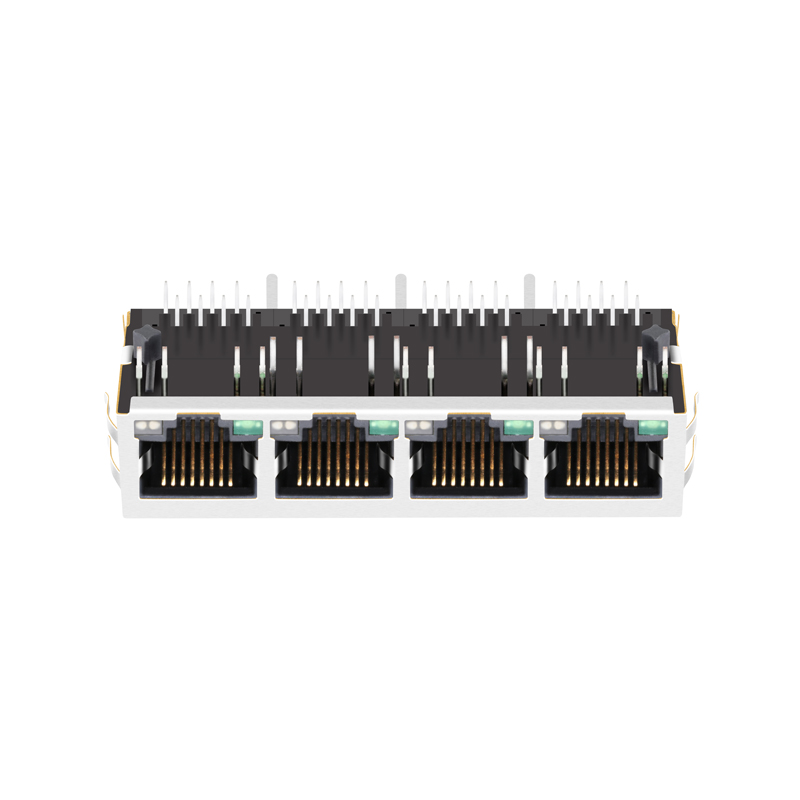

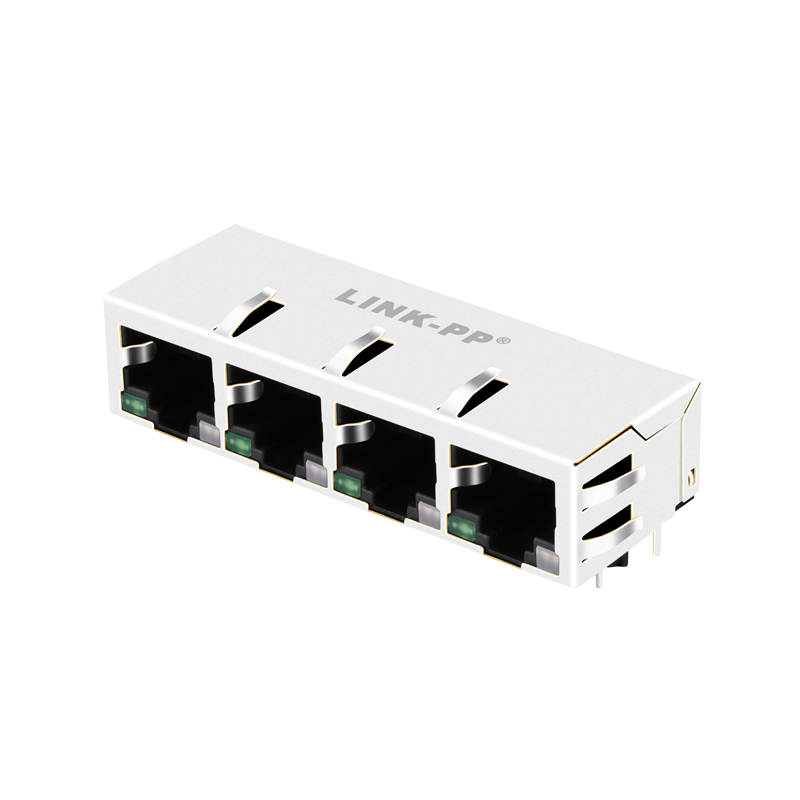

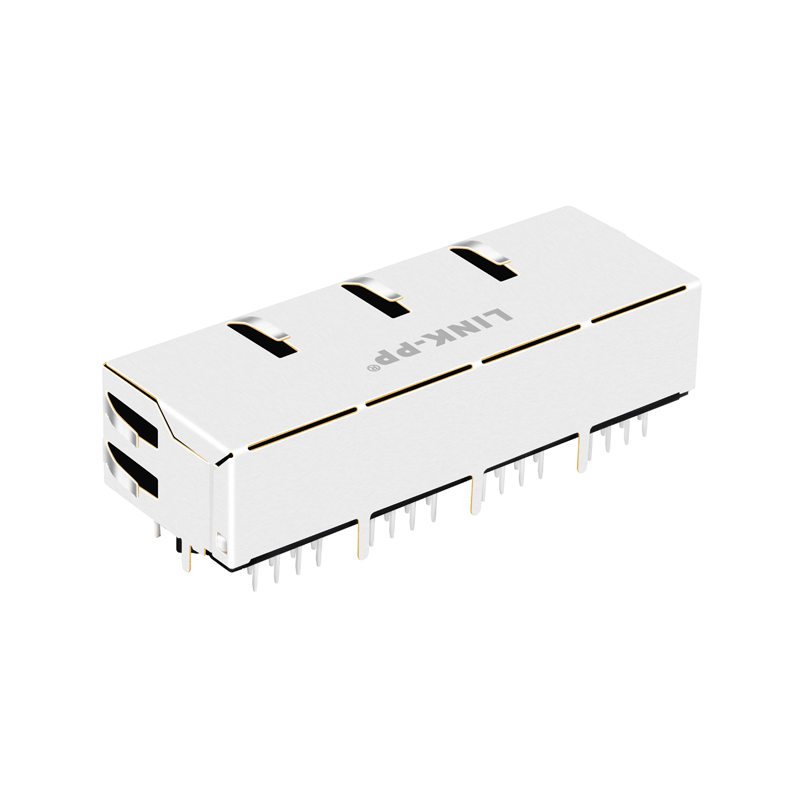

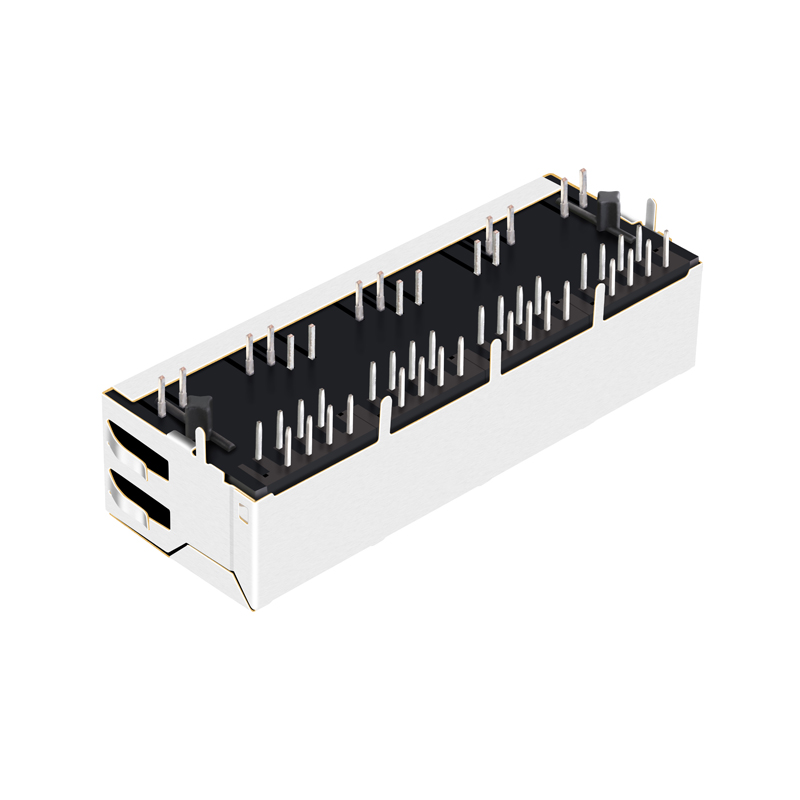

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
| Part Number |
5-6610068-7 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIDES41 |
| LED Option |
GREEN/GREEN&ORANGE |
| Latch |
UP |
| Number of Ports |
1X4 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C / -40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Our Solutions
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

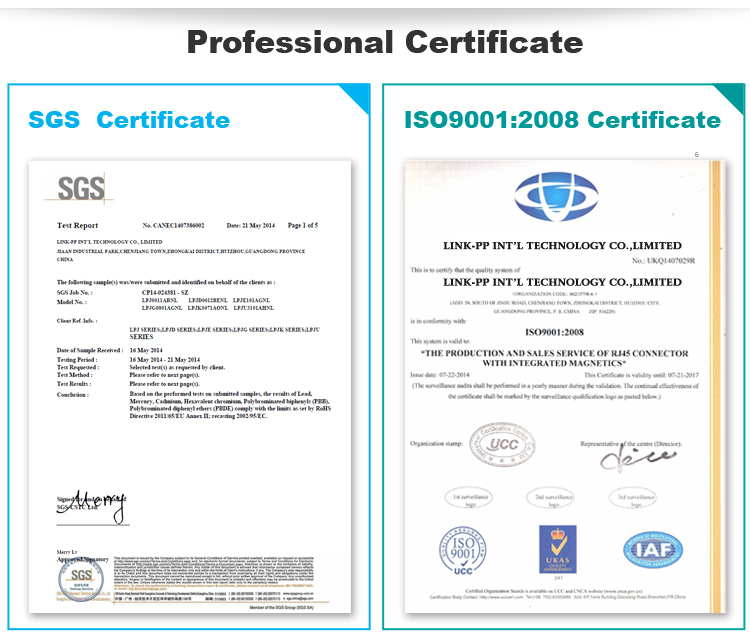

Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- OEM Excellence for Over 9 Years
- Successful Partnerships with Industry Leaders: Texas Instruments, Samsung, Cisco, Siemens, and Intel…
- Preferred Supplier of TI (Texas Instruments)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Major Market Competitors
- Fast Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Custom Requirements
- Highly Optimized Shipping Costs via Global Carriers
Technical Drawings & Dimensions
• Preferred Supplier Of TI Samsung Cisco Siemens …
Our components are featured on high-end development boards. You can find our quality-tested logos on BeagleBone Boards and other Tier-1 hardware.
Frequently Asked Questions
Q1: What is the transmission speed of the 5-6610068-7 connector?
A: This RJ45 modular jack supports 1000 BASE-T (Gigabit Ethernet) speeds, ensuring high-speed data transmission for network applications.
Q2: Does this product support industrial temperature ranges?
A: Yes, it is available in two temperature range options: standard 0 to 70°C and extended industrial -40 to 85°C.
Q3: What are the LED options available for this 1X4 RJ45 Jack?
A: The standard LED options are Green/Green or Green/Orange to indicate different network statuses.
Q4: Is the 5-6610068-7 connector RoHS compliant?
A: Yes, it is RoHS-5 compliant with lead in solder exemption, meeting international environmental safety standards.
Q5: What type of mounting does this connector use?
A: It uses THT (Through-Hole Technology) solder pins with a side-entry PCB mount angle and T-Post retaining posts for secure installation.
Q6: Can I get custom gold plating for the contact mating area?
A: Yes, we offer multiple gold plating thicknesses including 6u", 15u", 30u", and 50u" to meet your specific durability requirements.
