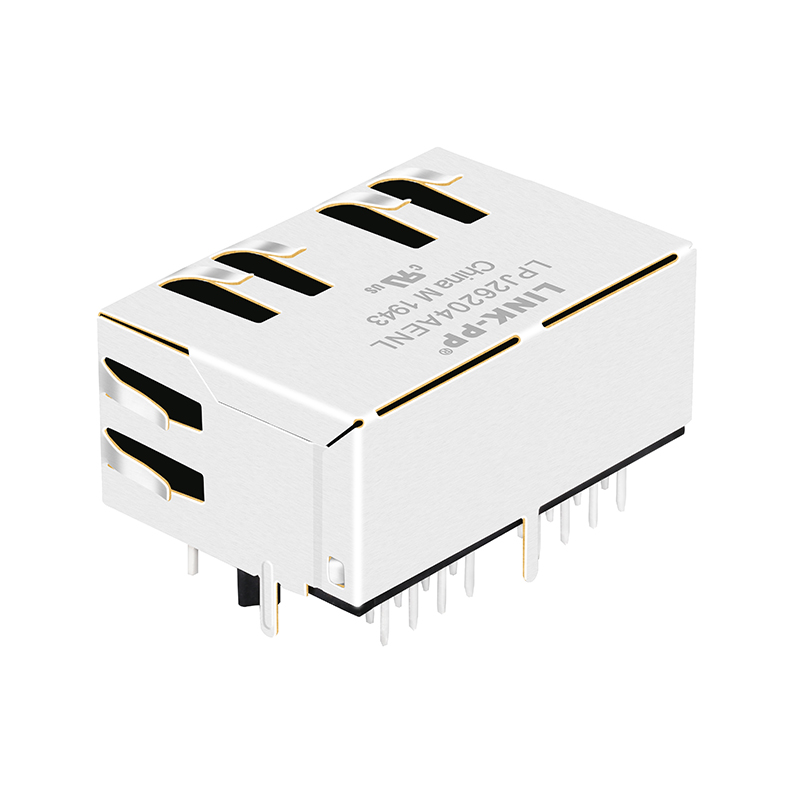

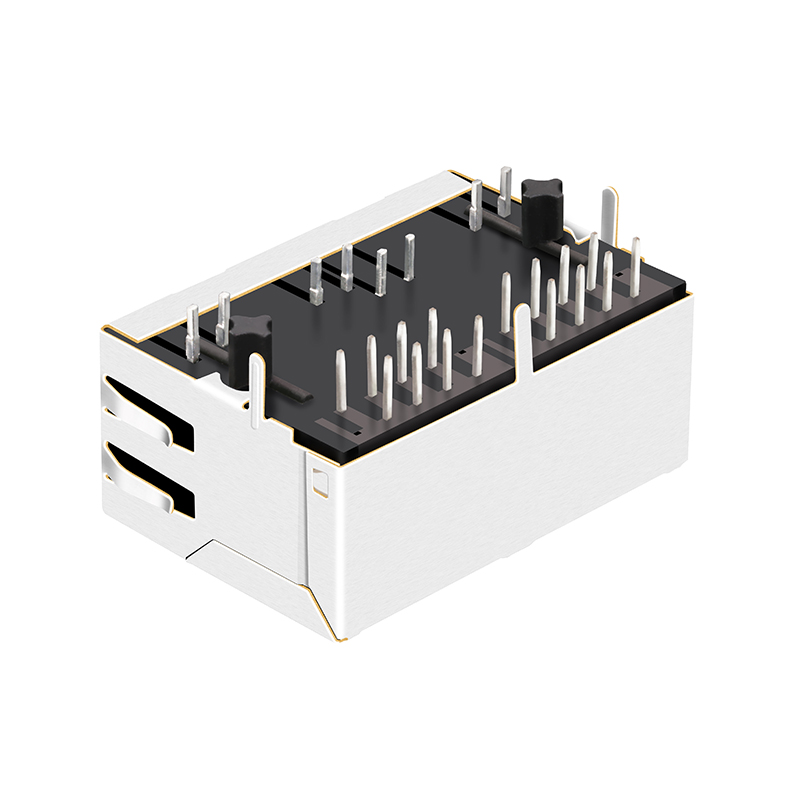

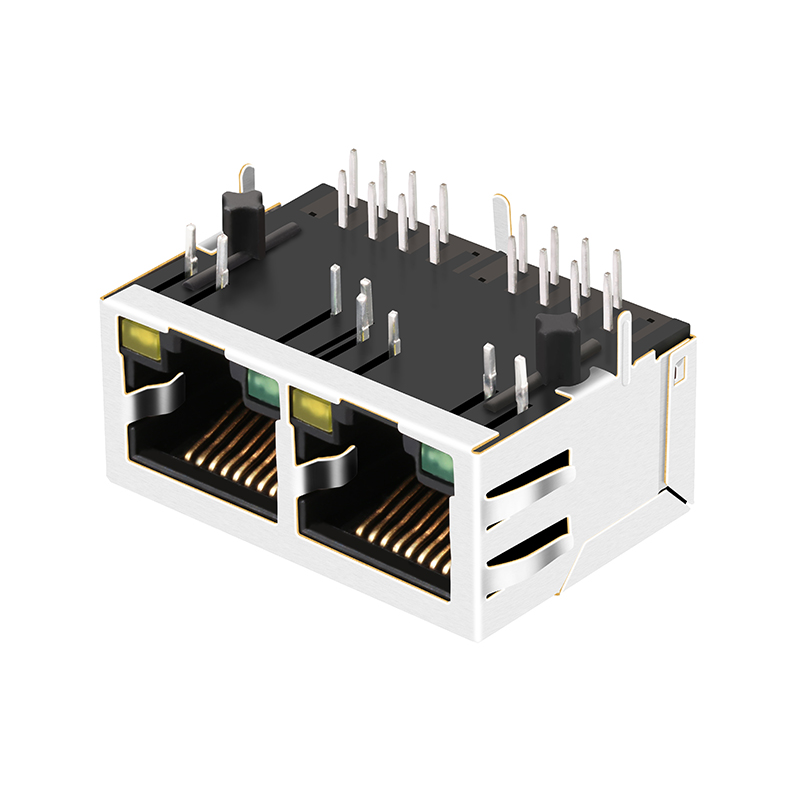

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
1 / 5
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Send Inquiry

Product Description

📦 Product Description

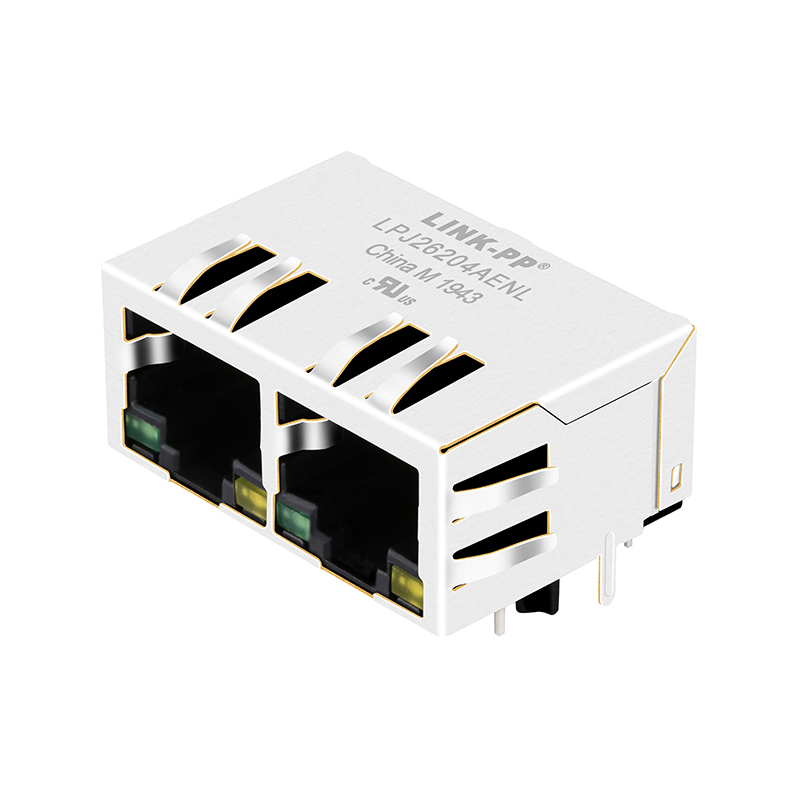

Product View 1

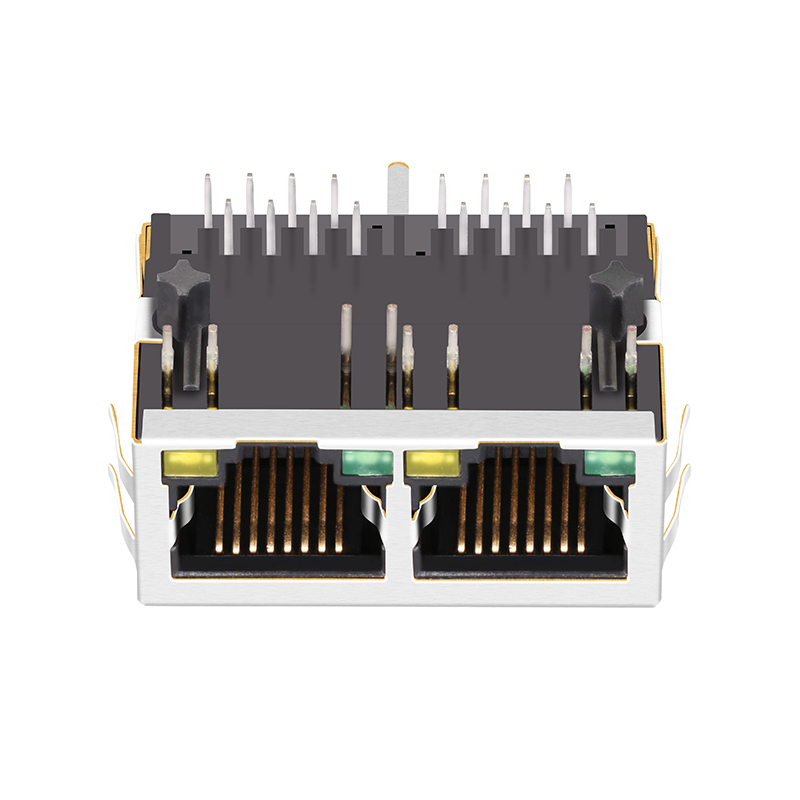

Product View 2
Product View 3
📋 Specification
Model NumberLPJ26204AENL
Part StatusActive
Connector TypeRJ45
Applications-Lan10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen / Yellow
Number of Cores per Jack4
ShieldingShielded, EMI Finger
Number of Ports1x2 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
🚚 Packing & Delivery
The Package Details:

Package: Tray, Carton size: 37*30*30cm, G.W./carton: 9kg, Qty/carton: 600pcs, SPQ: 30pcs, N.W/pcs: 0.015kg

Packaging
⚙️ Technical Features

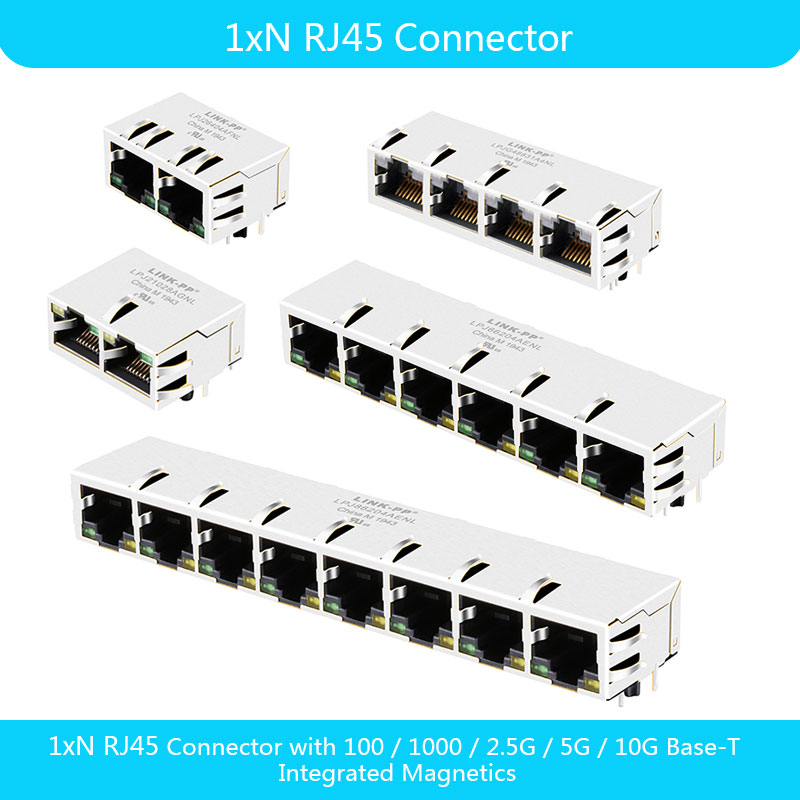

Technical Application
10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector

Applications: Suitable for industrial temperatures from –40 °C up to +85 °C. Compatible to Industrial Ethernet systems like EtherCAT or Profinet. Compliant with most IC’s for Ethernet applications such as Microchip, Broadcom, Marvell, Hubs, Routers, Switches, IP cameras, IoT applications.

🏢 Gallery
❓ FAQ
Q1: Are these RJ45 connectors compatible with Industrial Ethernet?
Yes, our connectors are fully compatible with Industrial Ethernet systems such as EtherCAT and Profinet, supporting rugged network environments.
Q2: What is the operating temperature range for these products?
The standard models operate between 0°C to 70°C, while industrial-grade versions can handle temperatures from -40°C up to +85°C.
Q3: Which Ethernet ICs are supported by your magnetic components?
Our components are compliant with most mainstream ICs for Ethernet applications, including those from Microchip, Broadcom, and Marvell.
Q4: Do the connectors meet international environmental standards?
Yes, our products are certificated by ISO9001:2000 and are fully compliant with RoHS, REACH, CE, and UL standards.
Q5: How do you ensure product quality before shipment?
We maintain strict quality control through pre-production samples and a rigorous final inspection before every shipment to ensure performance stability.
Q6: What types of networking components are available in your range?
We specialize in a wide range of magnetic telecom and networking components, including RJ45 Magnetics, Lan transformers, Modular Jacks, and RJ11 Connectors.
