Home > Multi Port RJ45 Connector > Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors

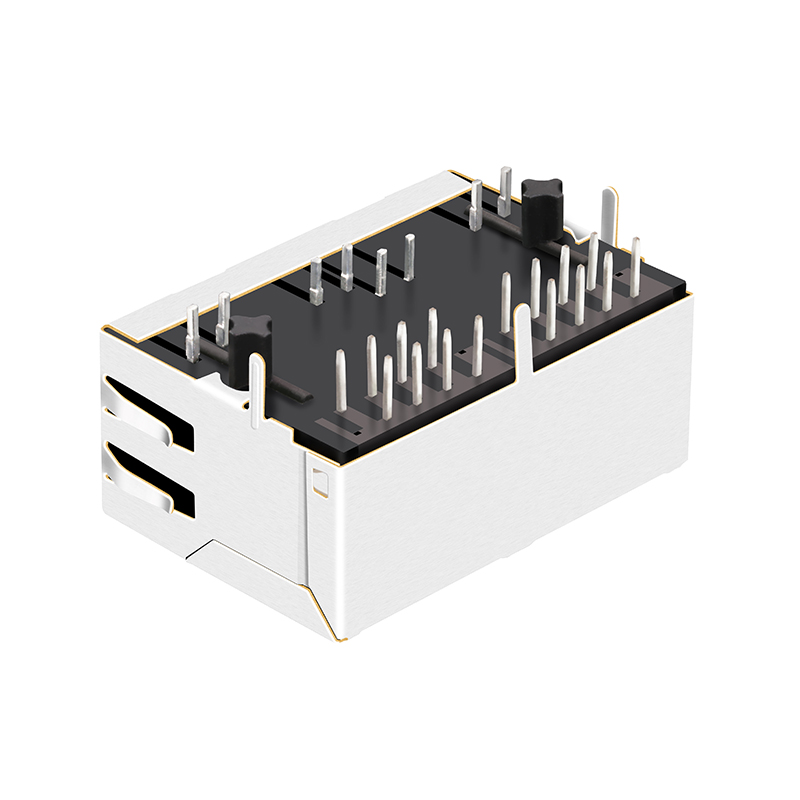

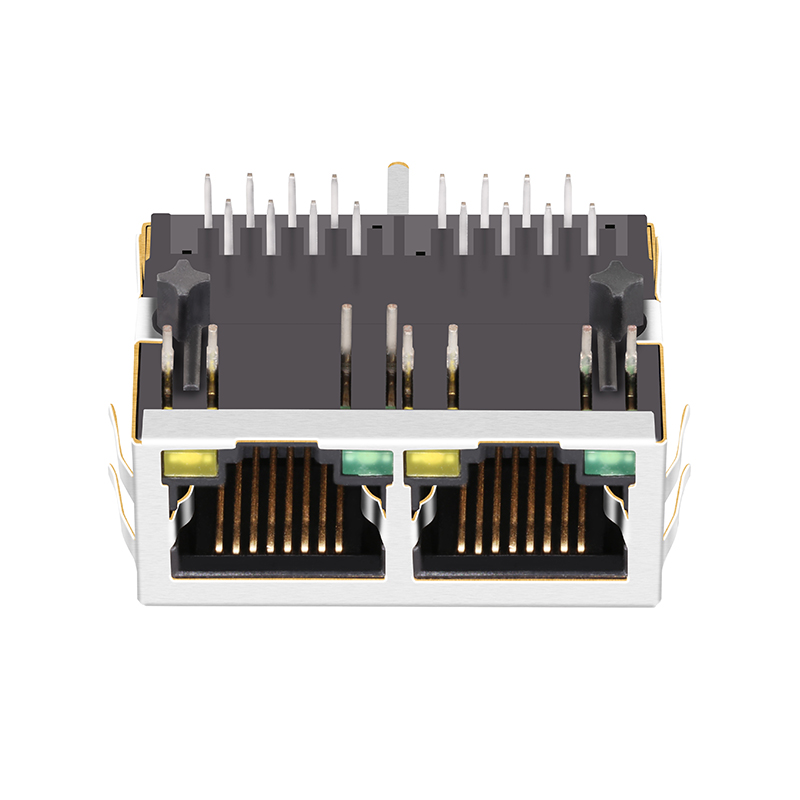

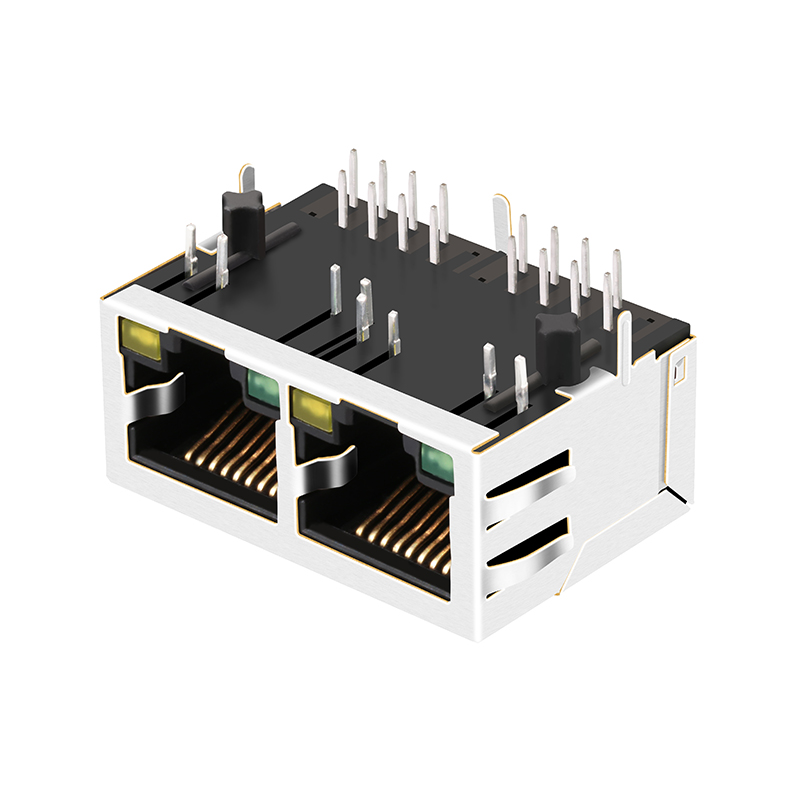

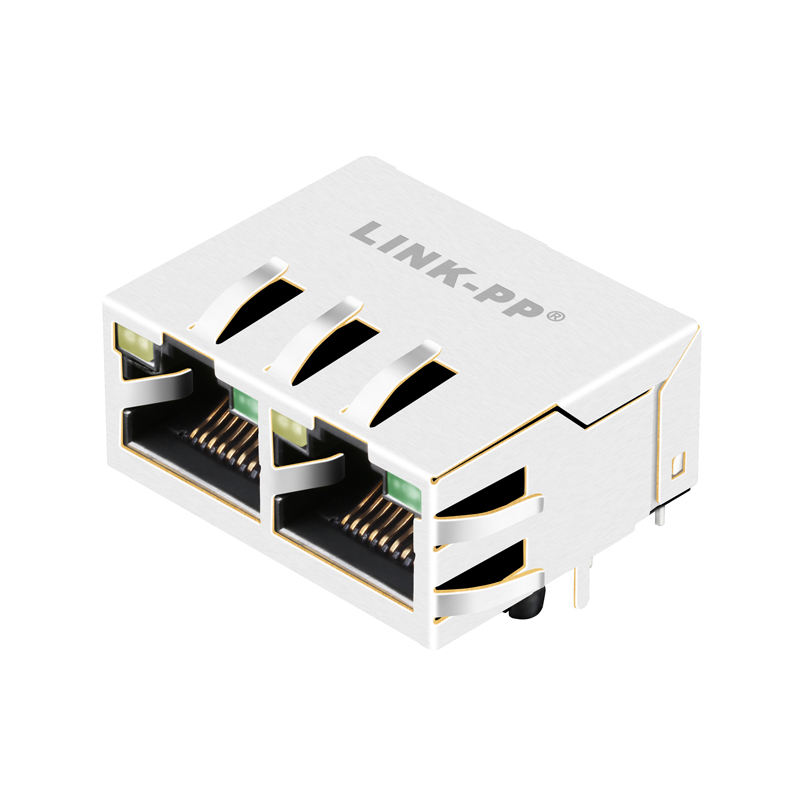

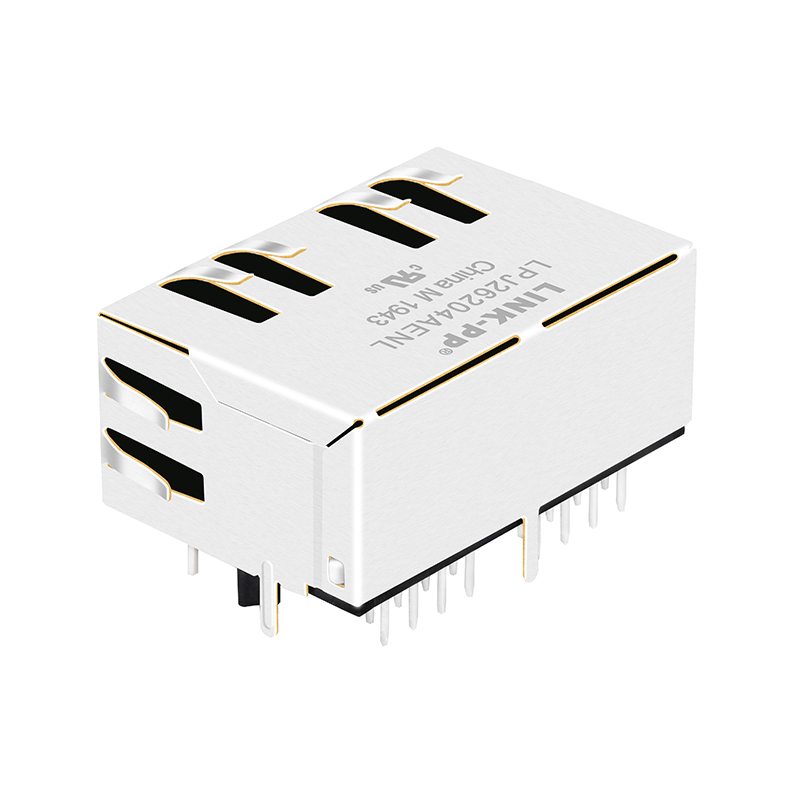

Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
1 / 5
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors

Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors

Send Inquiry

Product Description

Ethernet RJ45 Connectors
Industrial Tab Up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors
📋 Products Description
Item RJ45 Female Connector
Part Number LPJG25465ADNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x2 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product Specification Drawing
Product Categorization
Dimensions Profile
Product Detail View 1
Product Detail View 2
Product Detail View 3
Quality Standard Certificate
Production Facility Overview
🏢 Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading provider of Ethernet RJ45 connectors and LAN transformers worldwide.
Warehouse and Logistics
Precision Assembly Process
Automated Testing Equipment
❓ FAQ
Q1: Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2: Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping fees.
Q3: What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
Q4: What after-sales service do you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
Q5: Can you accept OEM/ODM orders?
Yes, please send your specific inquiries to us so that we can have a detailed discussion about your customization needs.
Q6: What is your main advantage?
We possess decades of specialized manufacturing experience and have maintained long-standing partnerships with leading global technology enterprises.
