IEEE 802.3 1000BASE-T LAN Magnetic Transformer HST-24002SAR / HST-24002SXAR

Product Description

LAN Magnetic Transformer
IEEE 802.3 1000BASE-T LAN Magnetic Transformer HST-24002SAR / HST-24002SXAR
Products Description
Item Lan Transformer
Replaceable Brand Model HST-24002SAR / HST-24002SXAR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1 Port
Speed 1000 Base-t
Cores per Port 8
Pin Number 24 Pin
Mounting Type SMT
Temperature 0℃ TO 70℃
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Package Tape & Reel

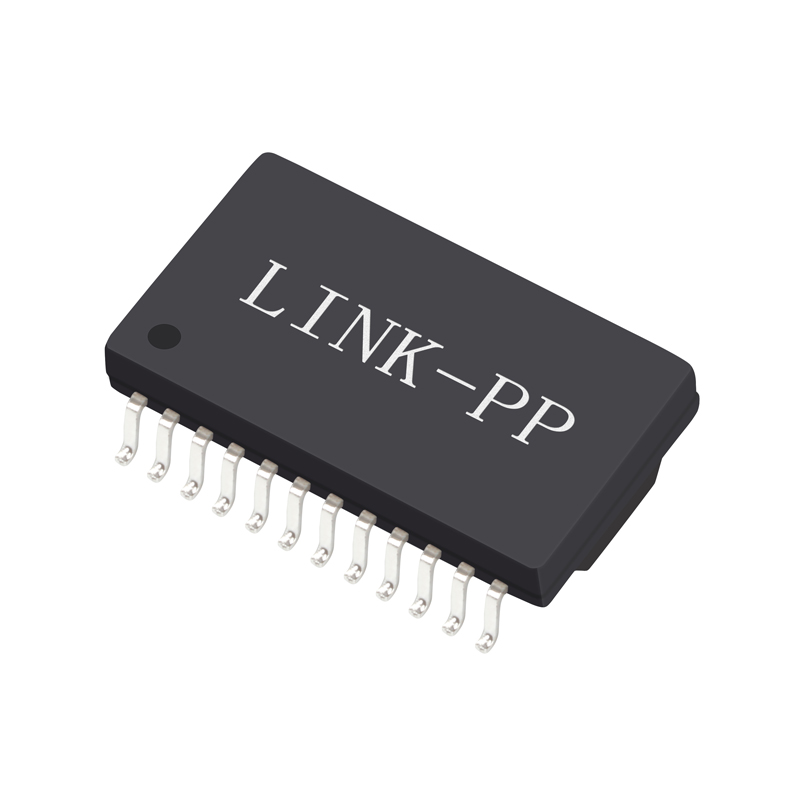

Product View 1 Product View 2 Product View 3
Product View 4 Product View 5
Dimensions Scheme
Schematic Diagram
Why Choose Us

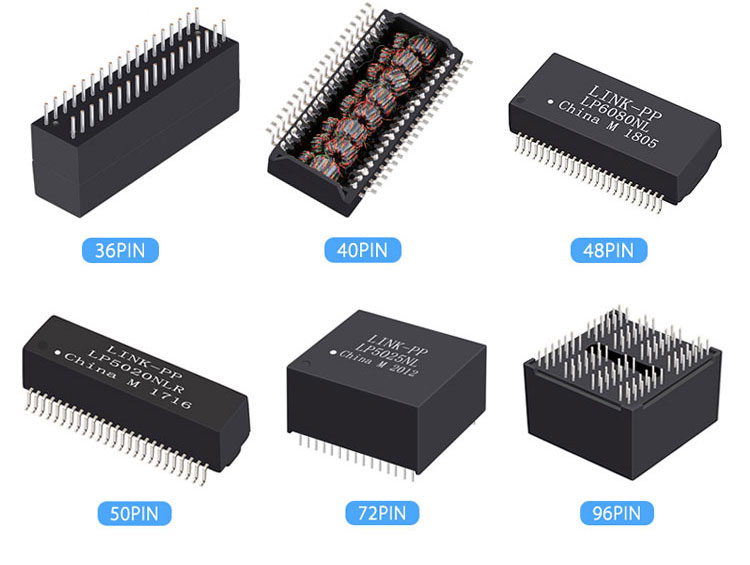

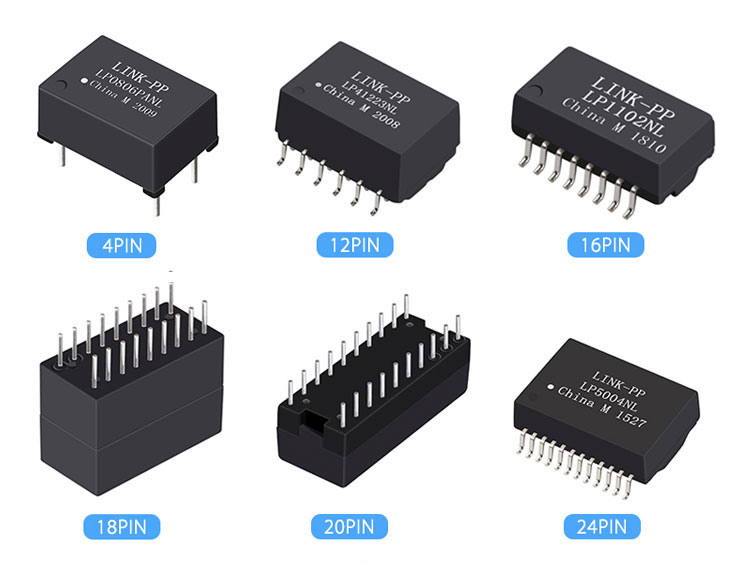

Advantage 1 Advantage 2
Advantage 3 Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad. With our abundant production capacity, we are able to deliver goods within a short timeframe. Moreover, we provide professional, complete solutions for magnetic components and offer strong technical support.

Main Products:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL, and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We export our products to more than 30 countries and regions worldwide, covering major markets in Europe, America, and Asia.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our pursuit of excellence will convince you to be our long-term partner.
Factory Image 1 Factory Image 2
Factory Image 3 Factory Image 4
FAQ
? 1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
? 2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
? 3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
? 4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
? 5. Can you accept OEM/ODM order?
Yes, please send an inquiry to us so that we can have a detailed discussion.
? 6. What is your advantage?
Many years of production experience and long-term partnerships with leading global technology corporations.
