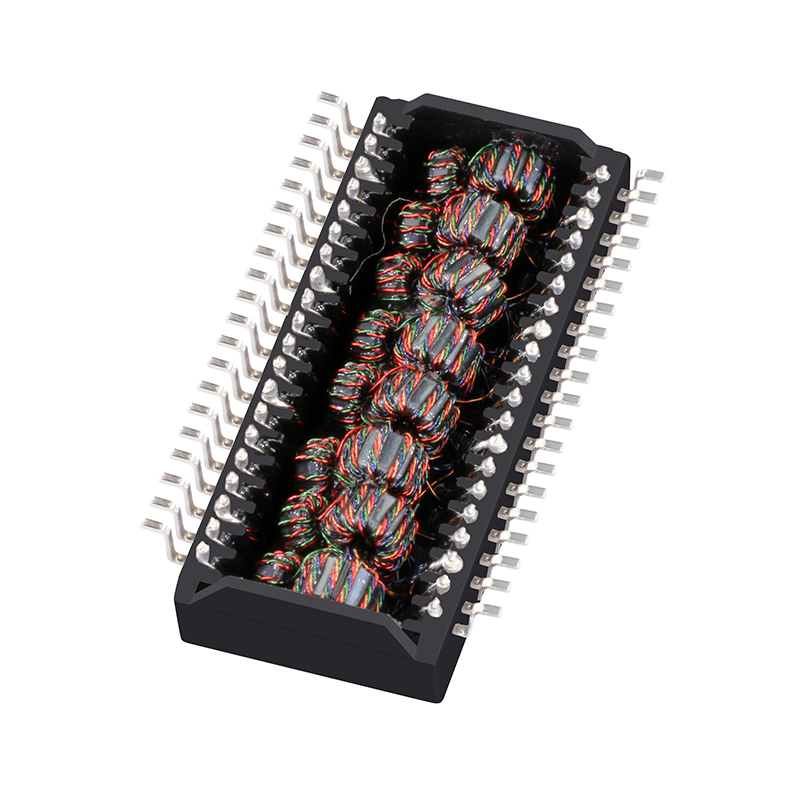

Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Send Inquiry

Product Description

Specification

Packing & Delivery

Packaging Details

Net Weight (N.W/pcs): 0.005kg

Package: Reel

SPQ: 400pcs

Qty/carton: 1600pcs

Carton size: 36*35.5*23cm

G.W/carton: 7.5kg

Showcase & Production Gallery

Frequently Asked Questions

Q1: What is the primary application of this LAN transformer?

This LAN transformer is designed for Ethernet (Non-PoE) applications, offering reliable connectivity for networking and communication equipments.

Q2: What transmission speed does this component support?

It supports 10/100 Base-T speeds, suitable for standard fast Ethernet configurations.

Q3: What is the mounting style of this LAN transformer?

It features a Surface Mount (SMD) design, which is ideal for automated assembly processes on PCBs.

Q4: What is the operating temperature range?

This component is rated for standard operation within a temperature range of 0℃ to +70℃.

Q5: What are the packaging specifications for shipment?

The product is packaged in Tape & Reel. The Standard Package Quantity (SPQ) is 400 pcs per reel, and 1600 pcs per carton.

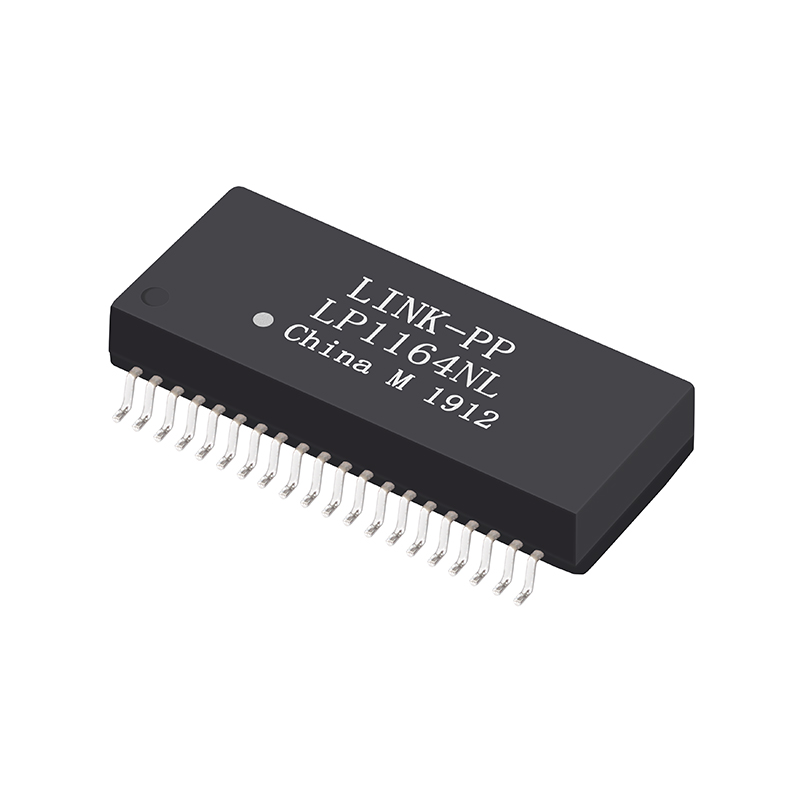

Q6: What is the port configuration of the LP1164NL?

It features a Quad Port configuration with 40 pins, 16 cores per port, and a turns ratio of 1CT:1CT for both RX and TX channels.
