Huge Stocks 1000 Base-T 24 Pin Single Port SMD PoE+ Lan Magnetic Transformer H6062NL

Product Description

Lan Magnetic Transformer

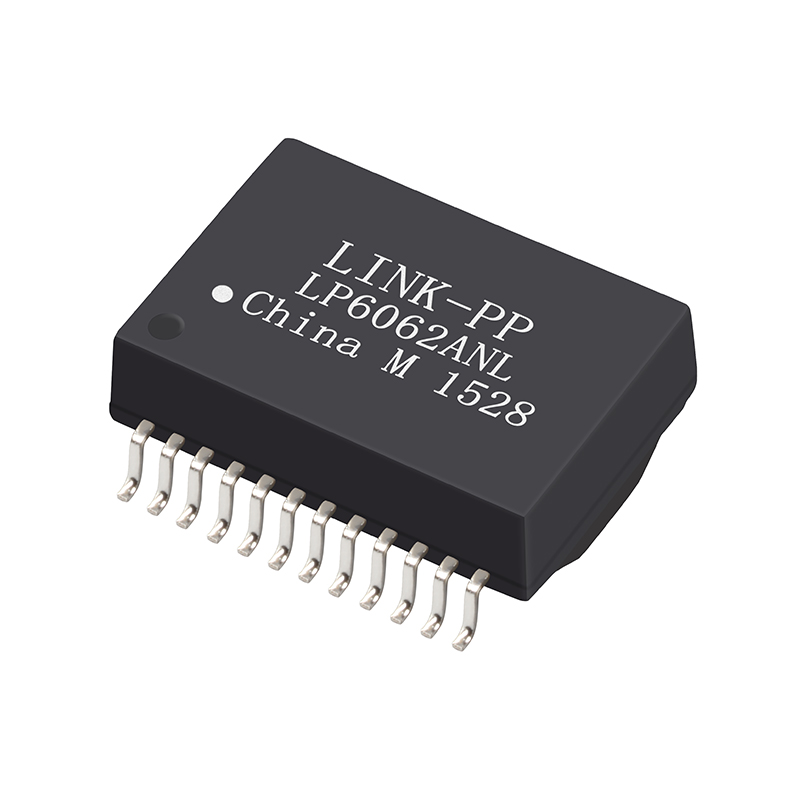

Huge Stocks 1000 Base-T 24 Pin Single Port SMD PoE+ Lan Magnetic Transformer H6062NL

Products Description
item Lan Transformer
Place of Origin China
Part Number: LP6062ANL
Halo Part Number H6062NL
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40°C TO +85°C
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S

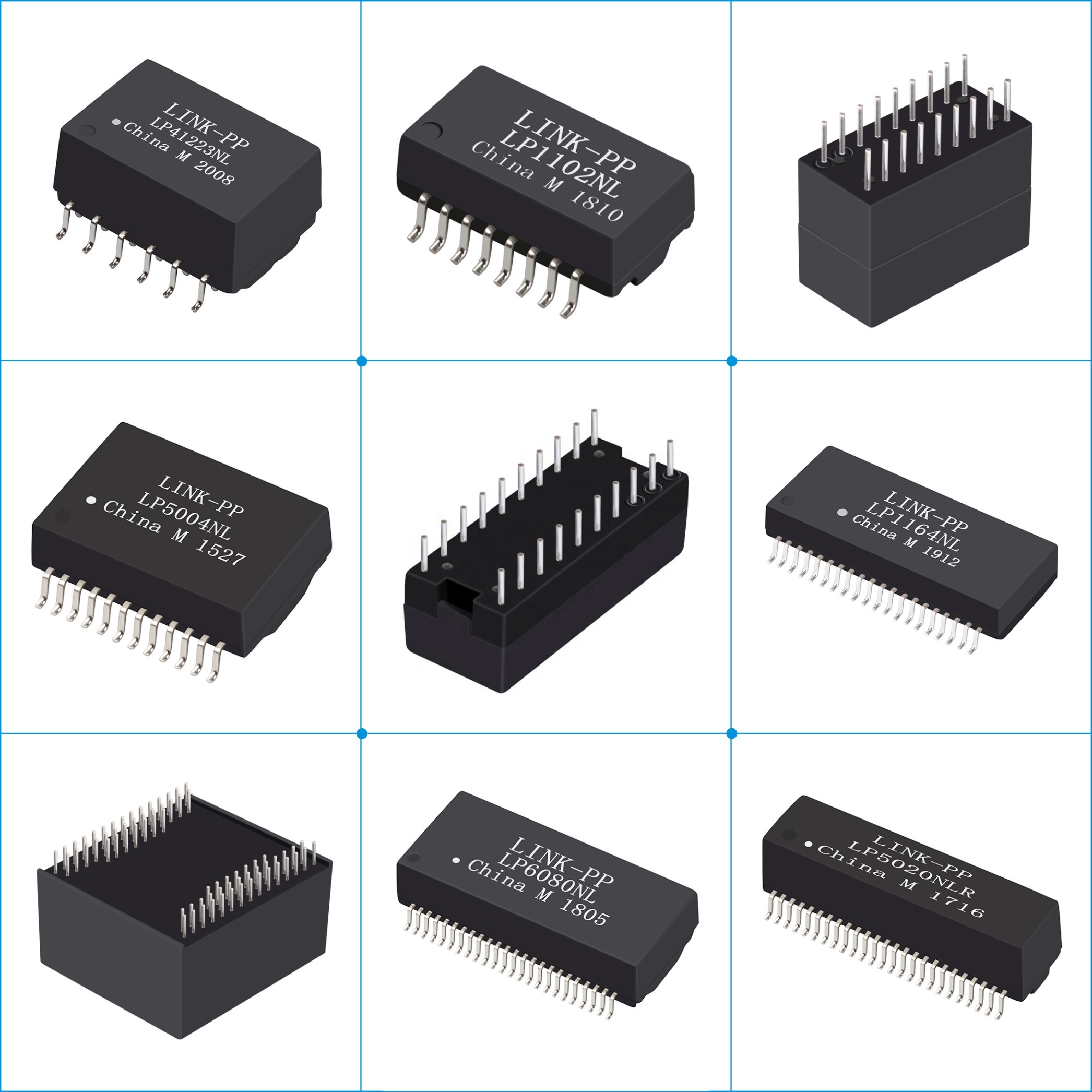

Product Range Overview

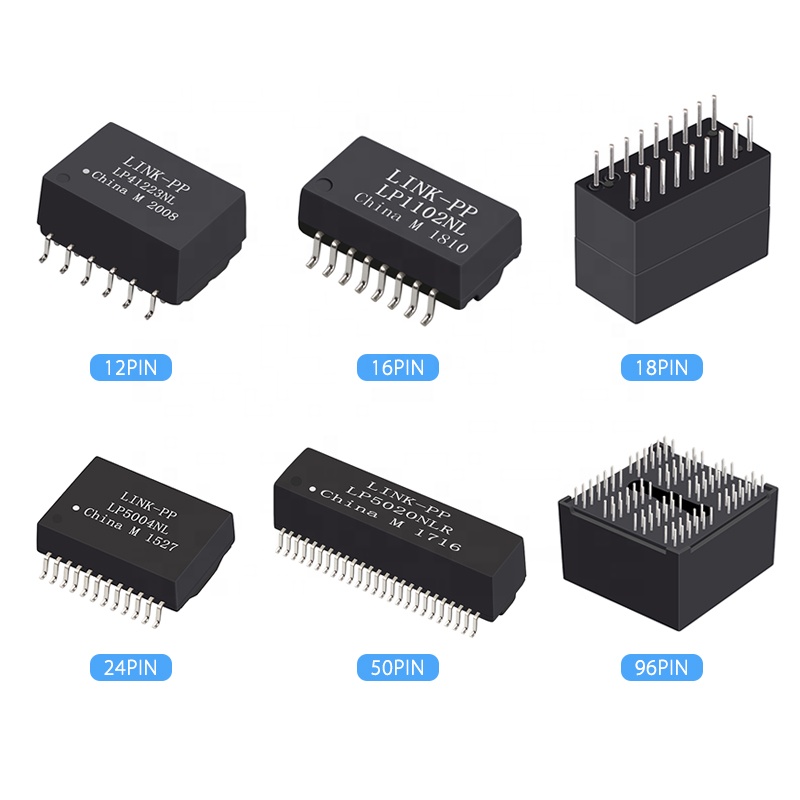

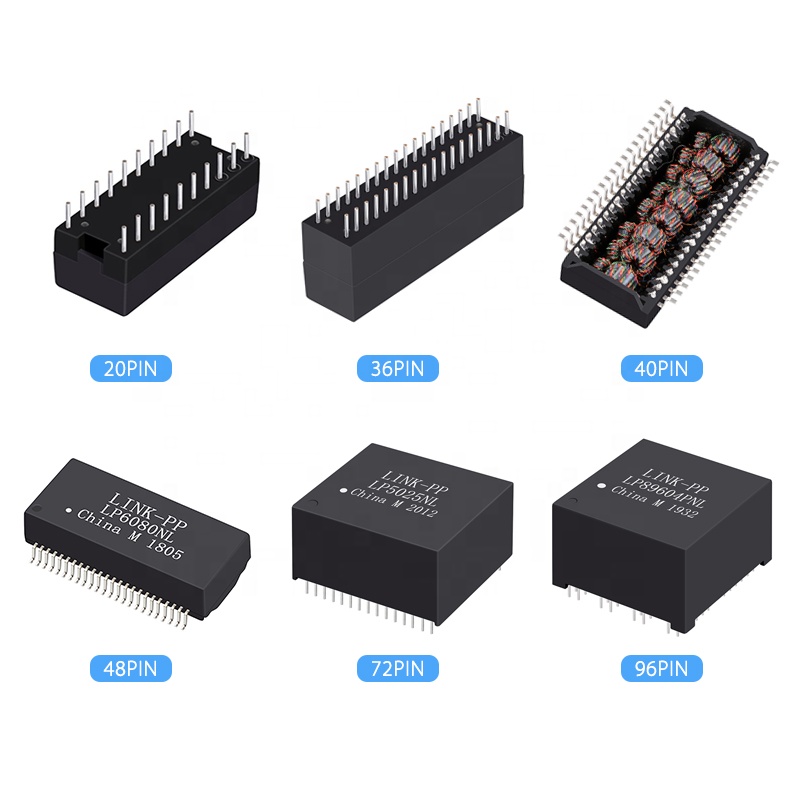

Lan Transformer Categories

Send Inquiry To Get Latest Price List

Production View 1

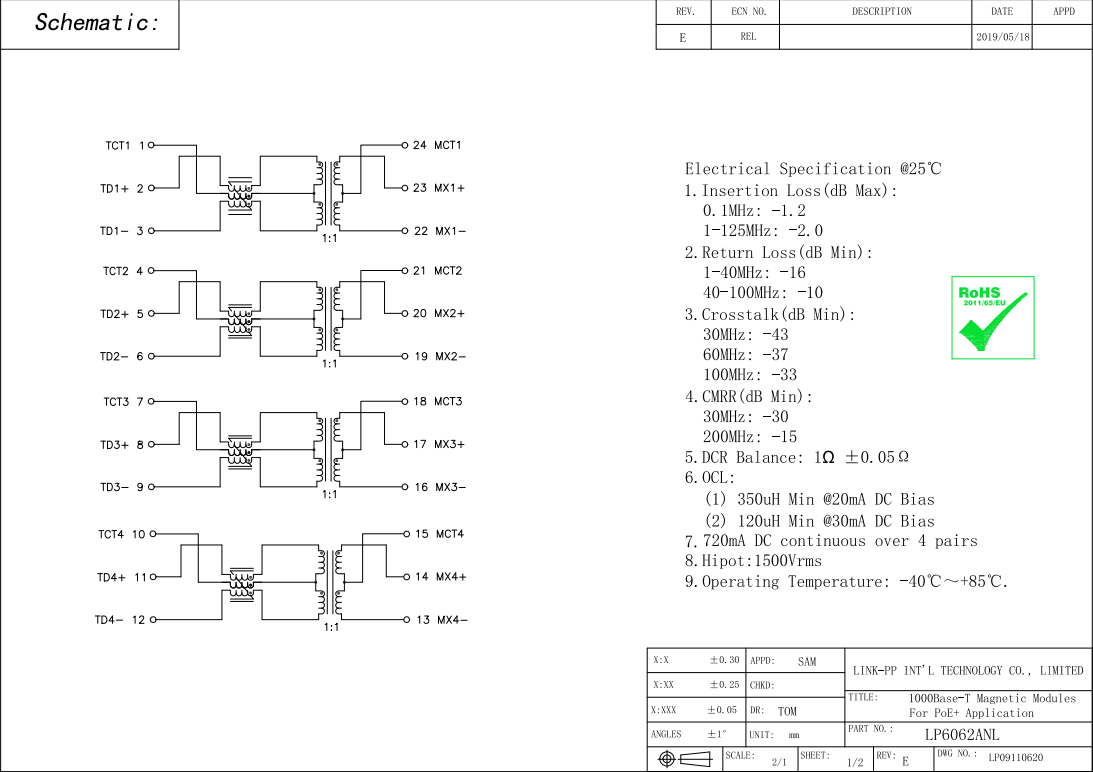

Production View 2

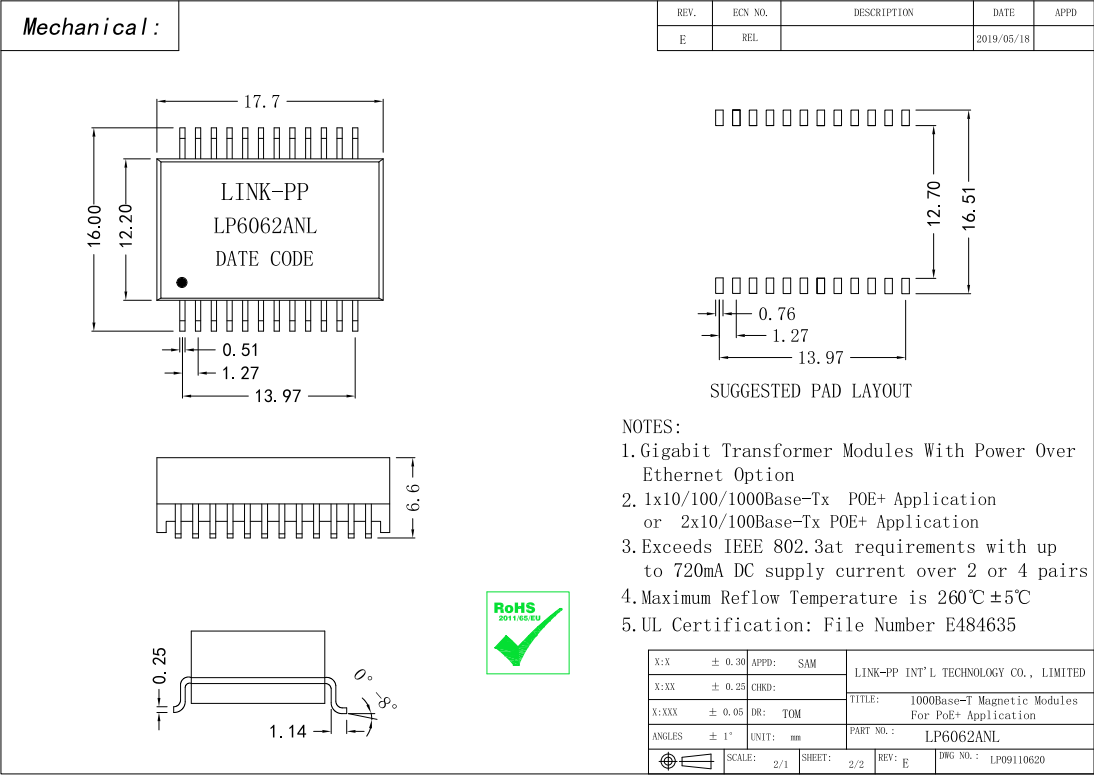

Production View 3
Production View 4

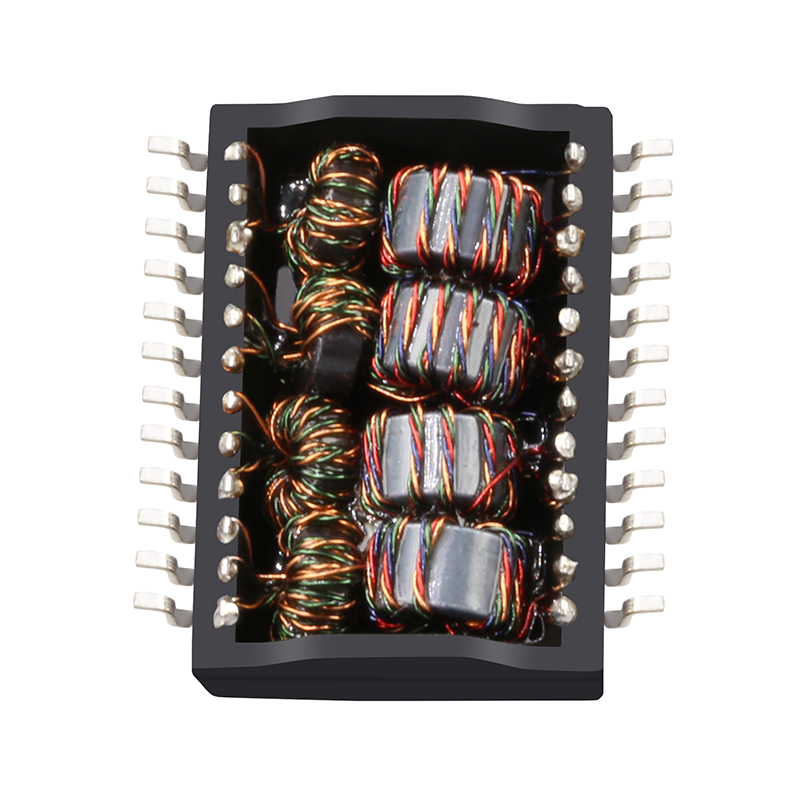

Production View 5
Production View 6
Production View 7
Quality Standard Certificate
Why Choose Us
Why Choose Us Feature 1
Why Choose Us Feature 2
Why Choose Us Feature 3
Why Choose Us Feature 4
Company Profile

Our company is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC. Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.

Factory Overview 1
Factory Overview 2
Testing Equipment
Production Line
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you a free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we are Intel's and Jabil's partner for many years.
