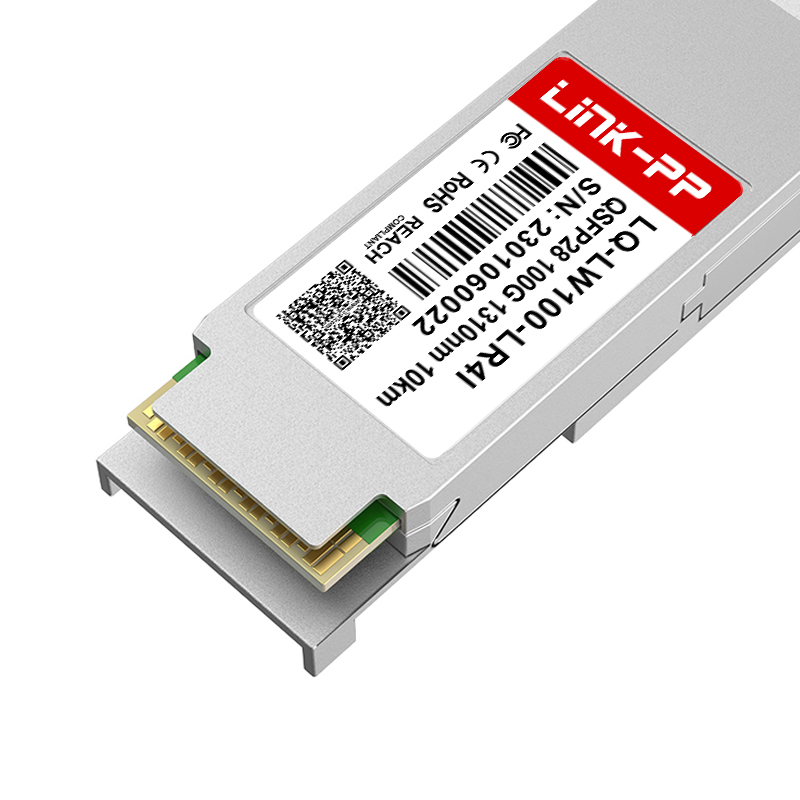

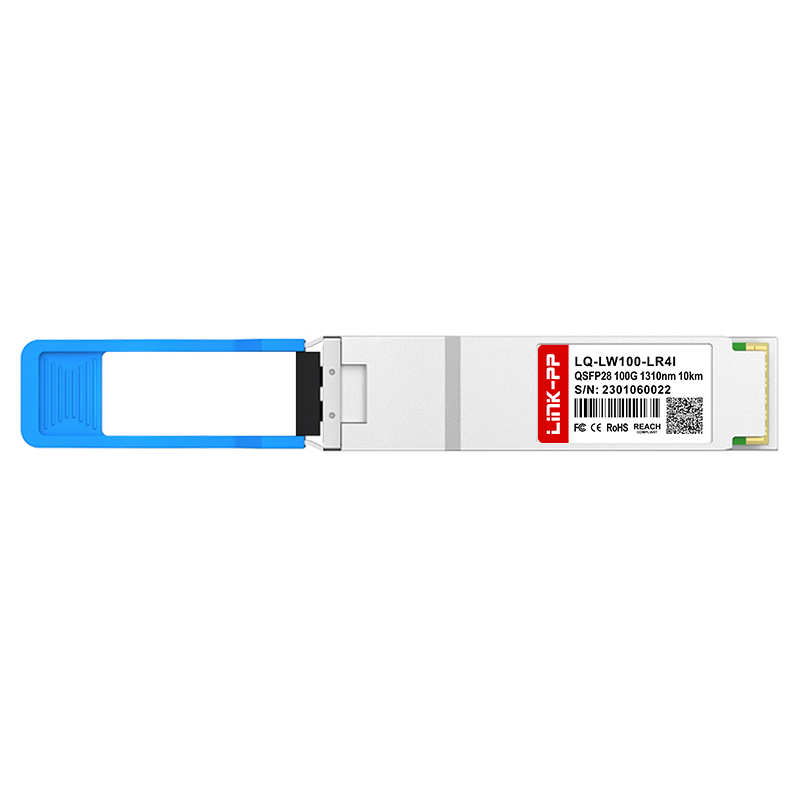

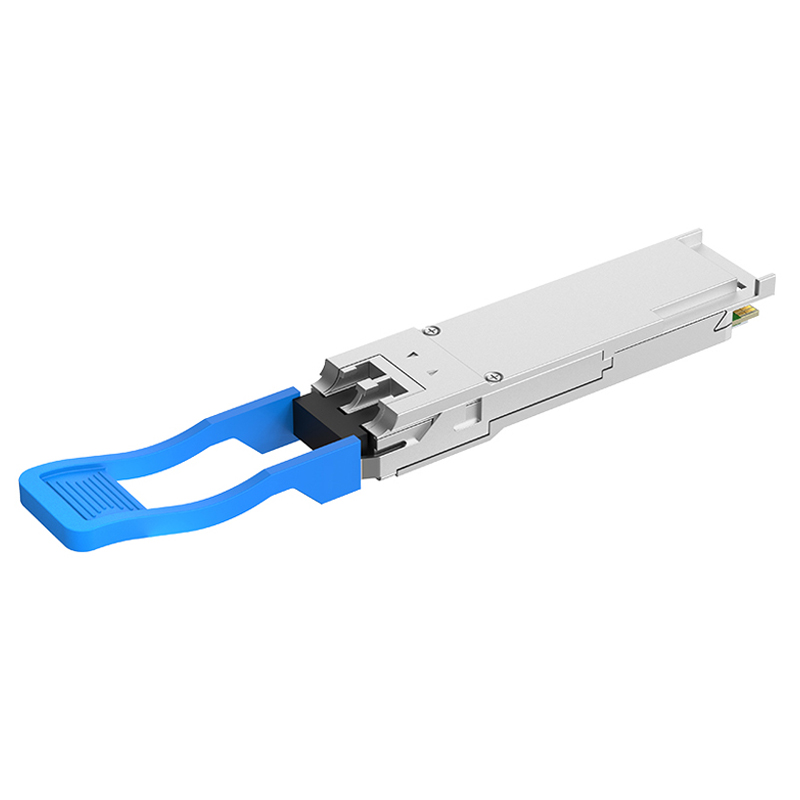

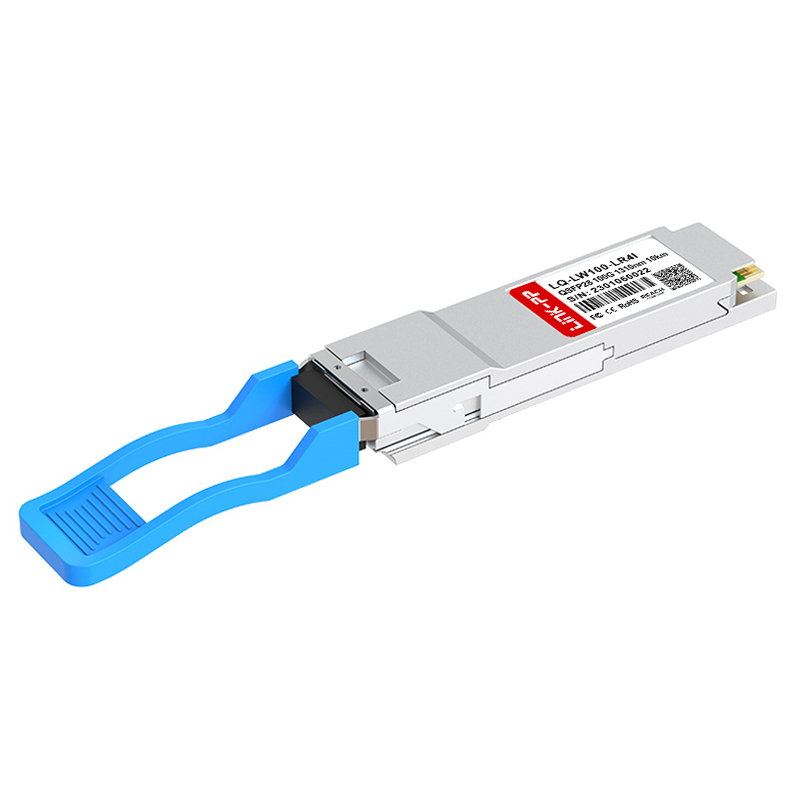

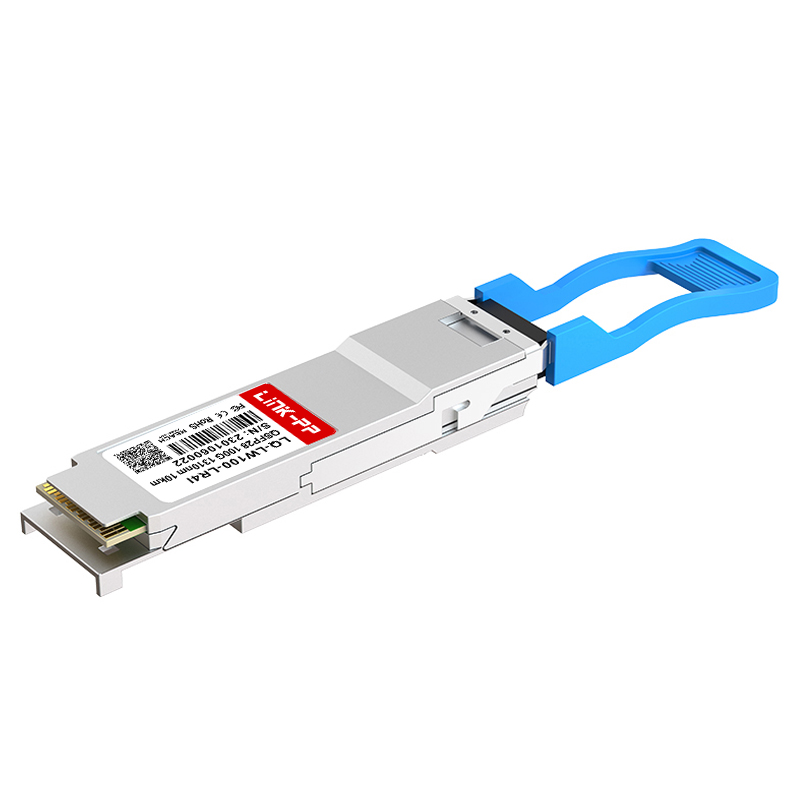

| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP28 |
| Max Data Rate | 103.125G |
| Max Cable Distance | 10km |
| Wavelength | 1310nm |
| Connector | Duplex LC |
| Media | SMF |
| Optical Component | EML/PIN |
| TX Power | -4.3~4.5dBm |
| Minimum Receiver Power | -10.6dBm |
| Power Budget | 6.3dB |
| Receiver Overload | 4.5dBm |
| Power Consumption | ≤3.5W |
| Extinction Ratio | ＞4dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, with around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to delivery products within a short time.
The range offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
