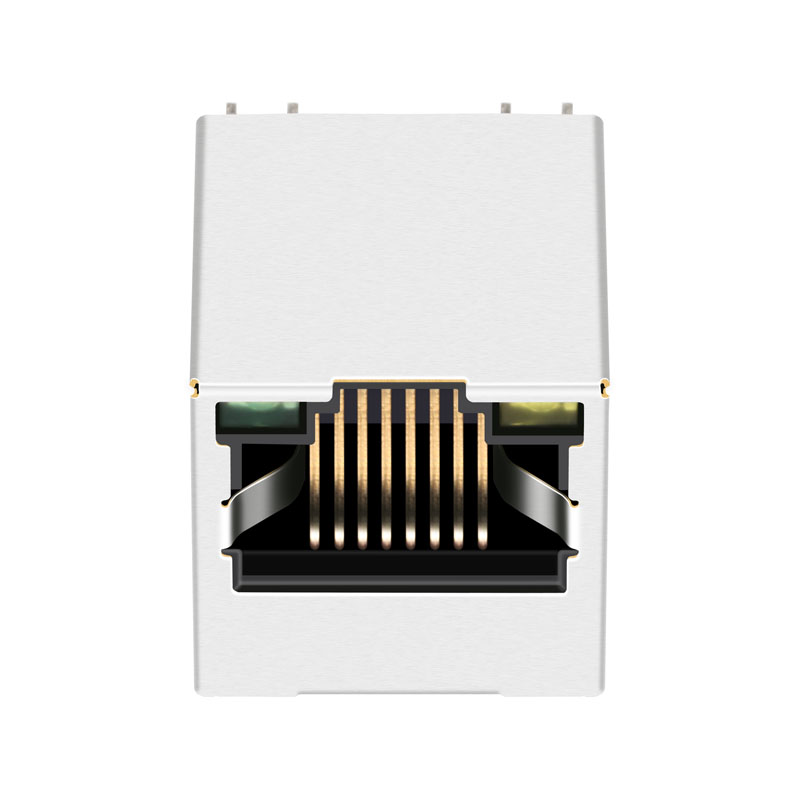

XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds

Product Description

Ethernet RJ45 Connector and SFP Modules Overview
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0012BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Jack Dimensions and Specifications
Explore More Product Configurations Below
Various RJ45 Connector Types
Product Layout Diagram 1
Product Layout Diagram 2
Product Layout Diagram 3
Product Layout Diagram 4
Manufacturing Testing Equipment
Production Process Inspection
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory Internal Environment
Production Line Operations
Warehouse Facilities
Frequently Asked Questions
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Q What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
Q What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please contact us with your inquiries so we can initiate a detailed discussion on your requirements.
Q What is your main advantage?
We bring over 19 years of dedicated production experience and have maintained partnerships with leading global technology companies for many years.
