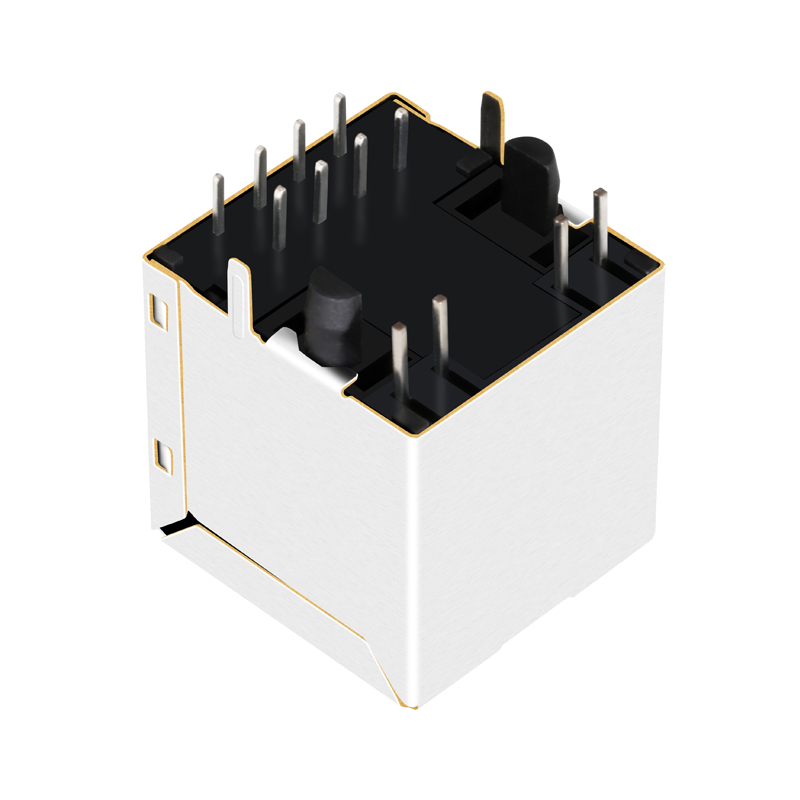

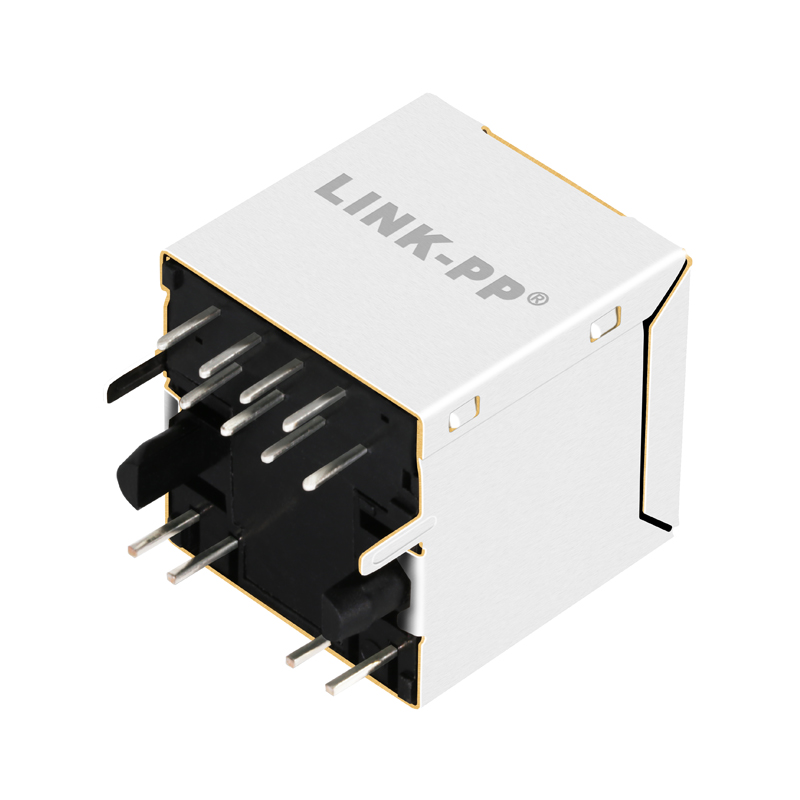

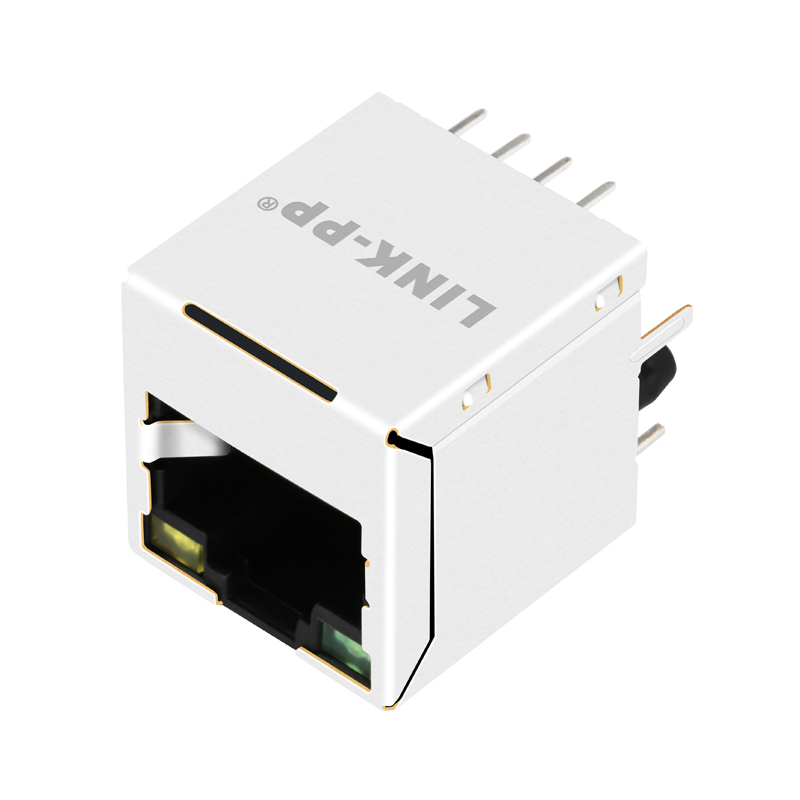

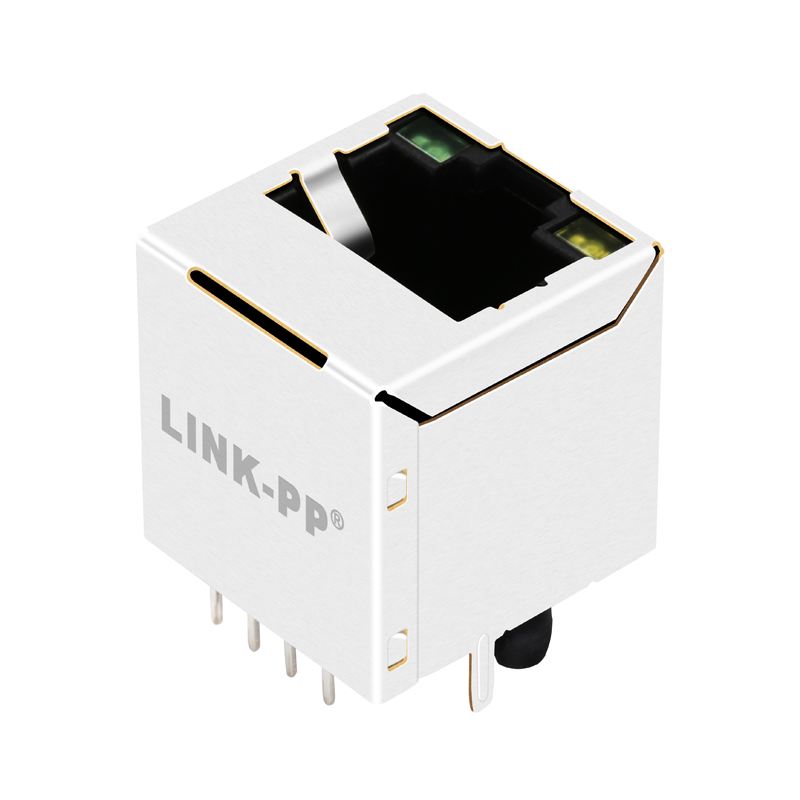

Vertical Unshielded RJ45-Jack Cat3 Connector 87547-4111clf

Product Description

RJ45 Connector Options

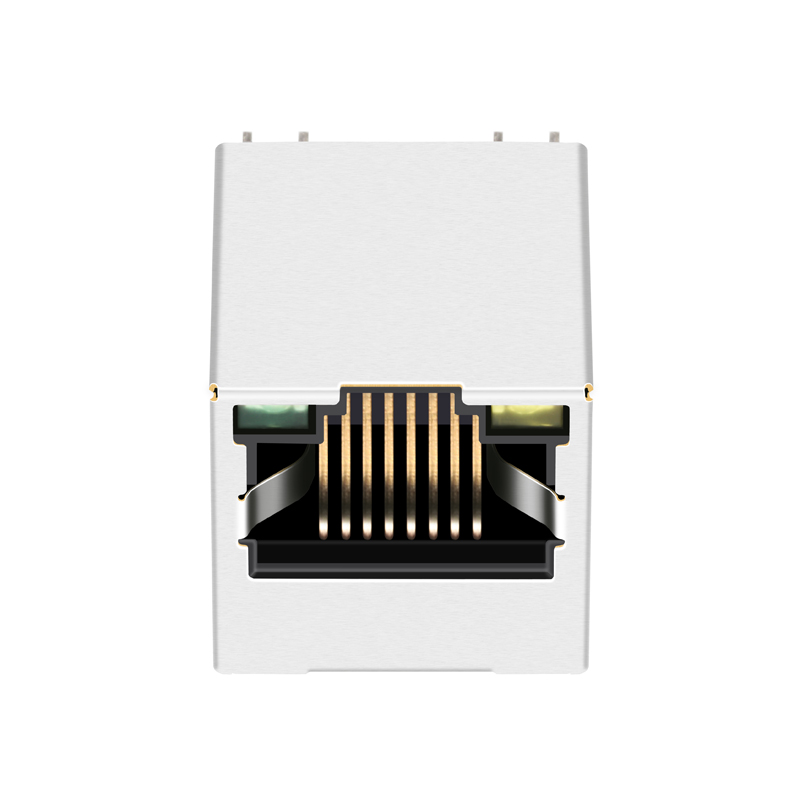

Vertical Unshielded RJ45-Jack Cat3 Connector 87547-4111clf
Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Performance Reference
Product Reference Chart Below

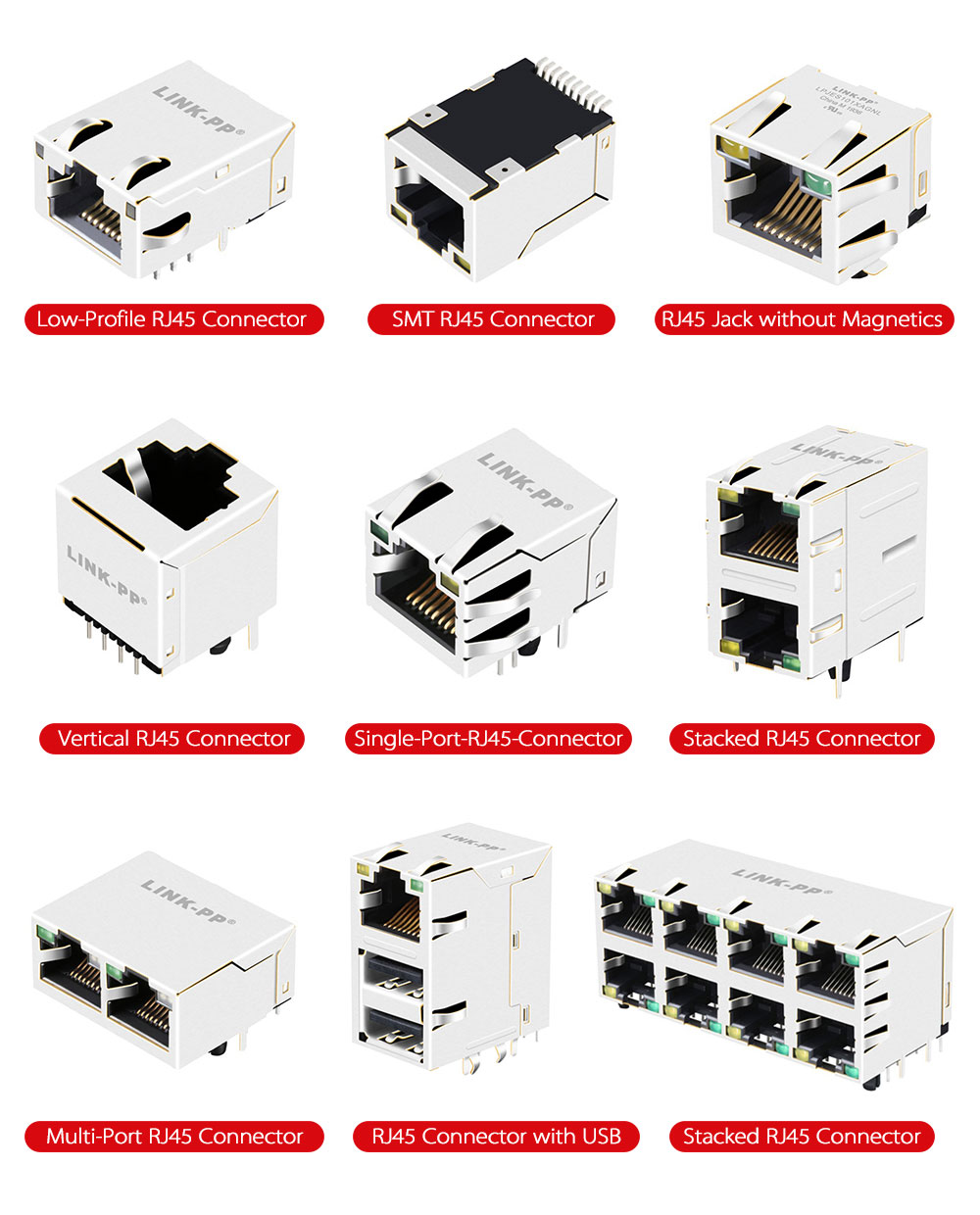

Product Collection Overview
Dimensions Spec Sheet
Technical Drawing Layout
Connector Specifications
Electrical Diagram Curve
Product Quality Highlight Banner
Production Inspection Details
Quality Compliance Certificate
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.

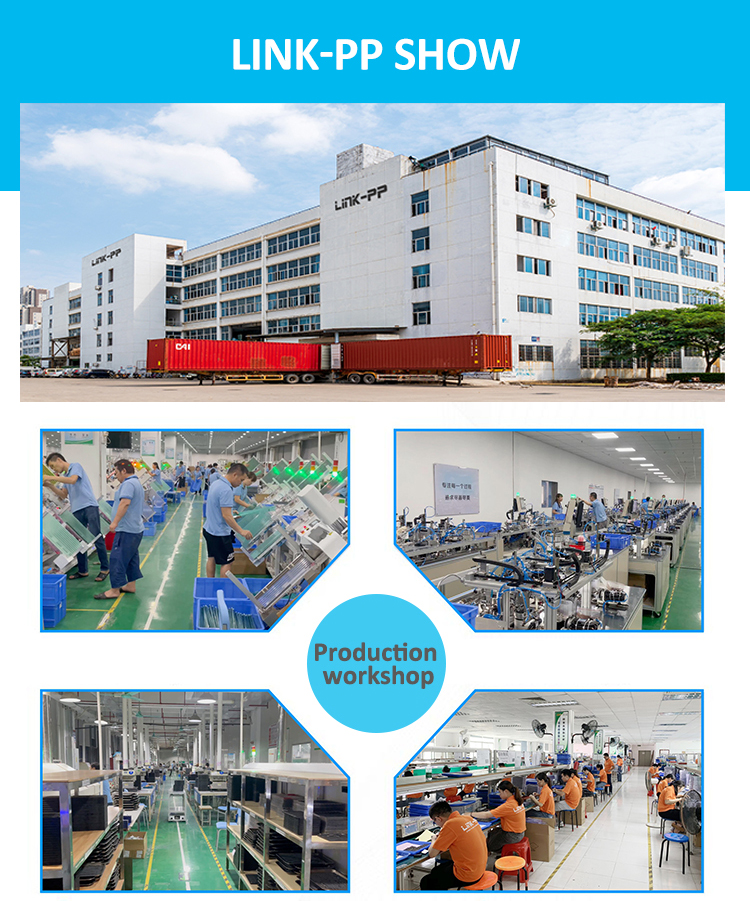

Manufacturing Factory Floor

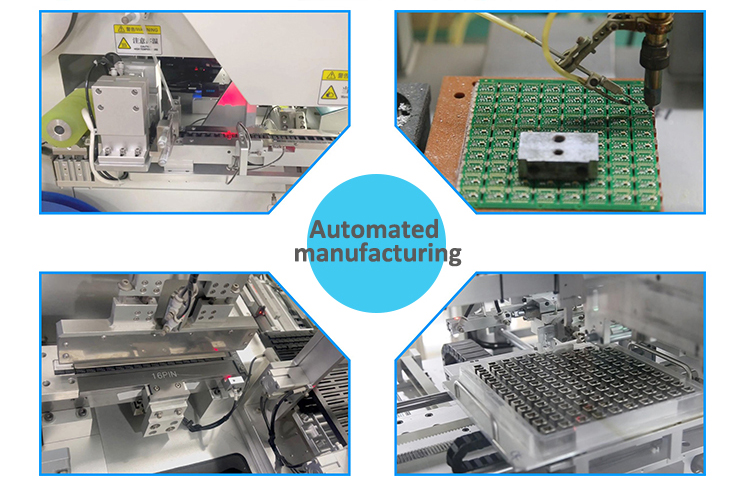

Advanced Testing Machinery
Inventory and Warehouse System
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you are responsible for paying the shipping fees.
3. What is your delivery time?
In-stock items are ready to ship immediately, while mass production typically takes 15 to 30 days.
4. What after-sales service do you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
5. Do you accept OEM/ODM orders?
Yes, we support OEM and ODM services. Please send us your requirements so that we can have a detailed discussion.
6. What is your advantage?
We bring over 19 years of dedicated production experience and have partnered with major global electronics and technology leaders for many years.
