Home > Vertical RJ45 Connector > Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL

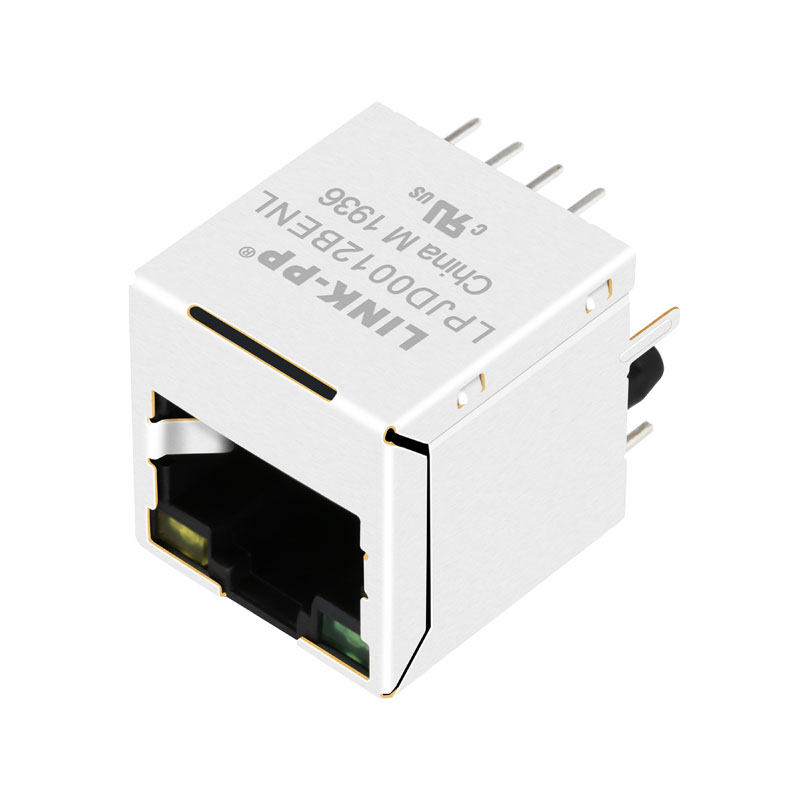

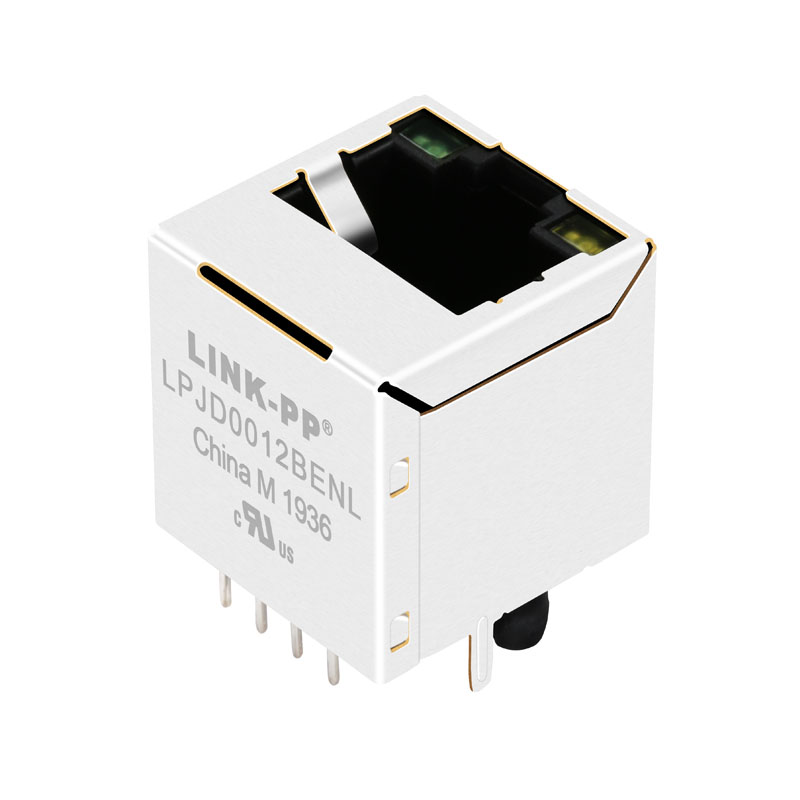

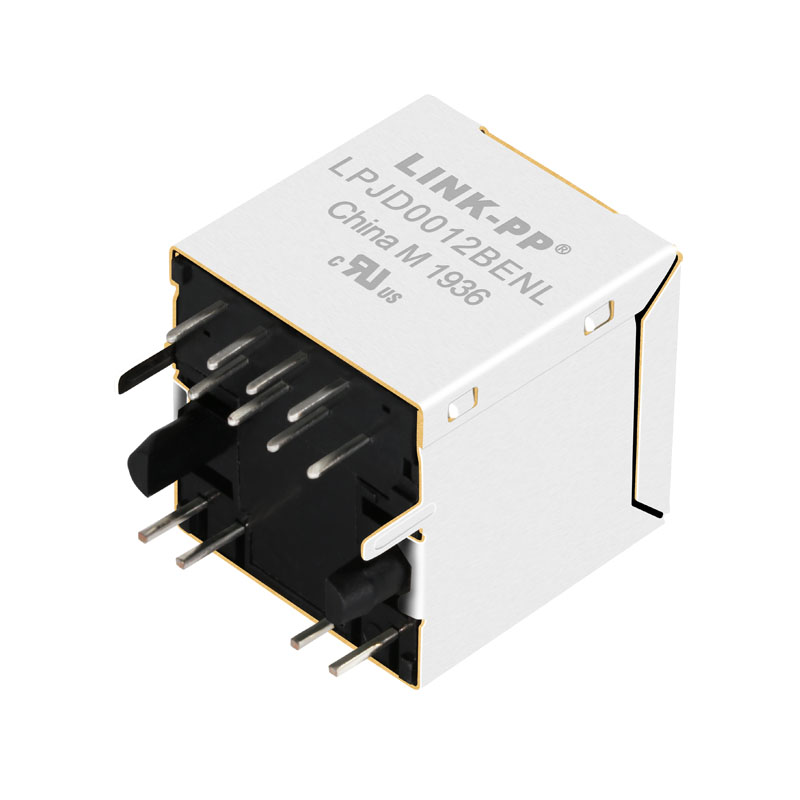

Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
1 / 5
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL

Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL

Send Inquiry

Product Description

Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
RJ45 Connector Category Overview
Products Description
Item RJ45 Female Connector
Part Number LPJD0012BENL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Mechanical Dimension Profile Product Electrical Circuit Schematic

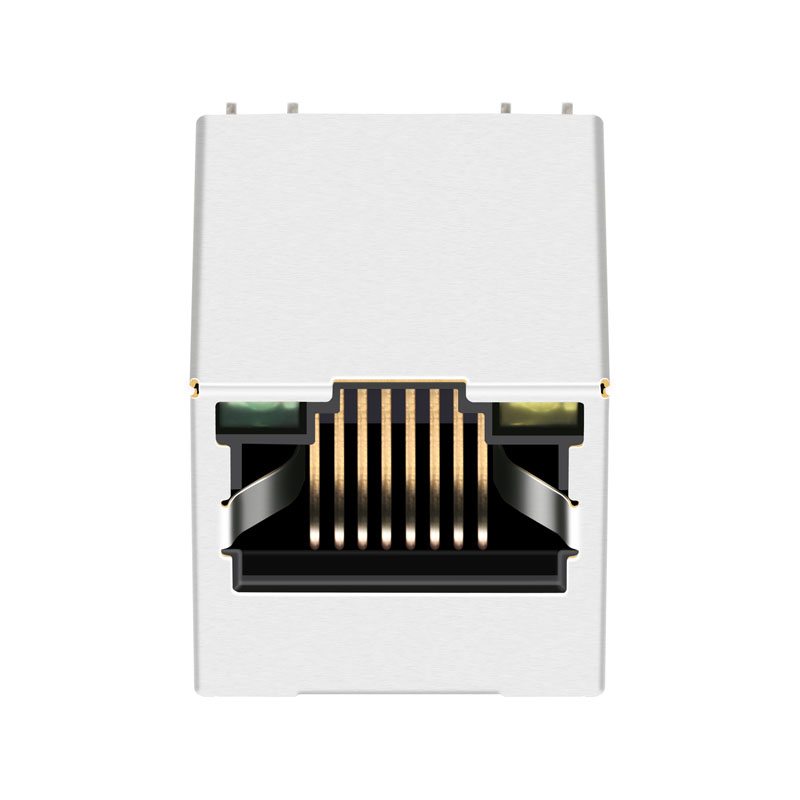

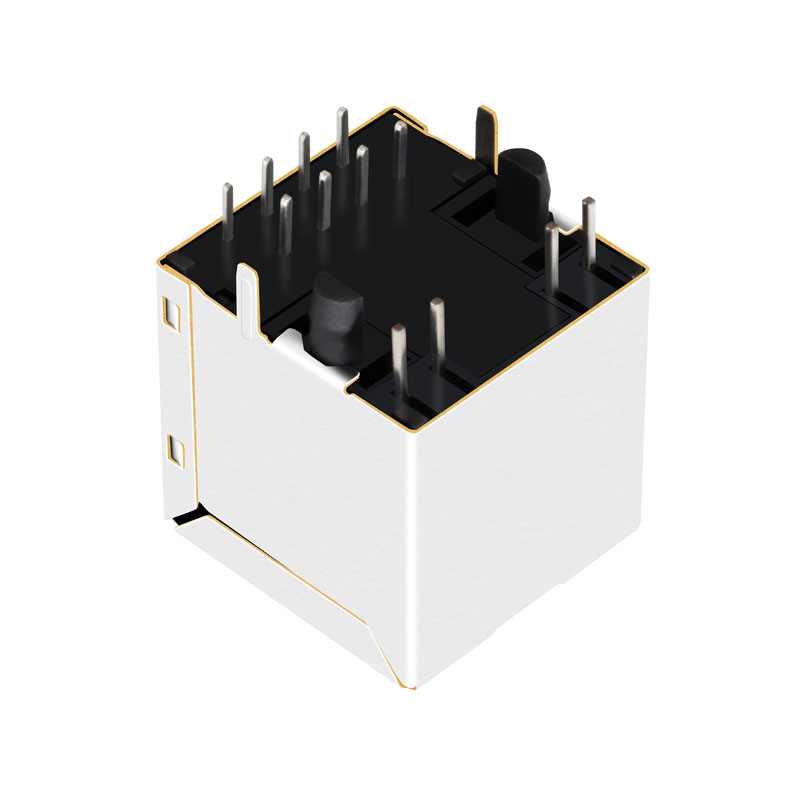

RJ45 Front View Design Detail RJ45 Top View Design Detail RJ45 Side View Design Detail RJ45 Bottom View Design Detail
RJ45 Connector Range Options
Factory Laboratory Equipment Advanced Production Line High Tech Manufacturing Machinery Automatic Testing Facility Quality Inspection Workstation Material Storage Area
Enterprise Facility External View Industrial Manufacturing Center
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered.
What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion regarding your custom requirements.
What is your advantage?
We have 19 years of production experience and have been a trusted partner for leading global brands for many years.
