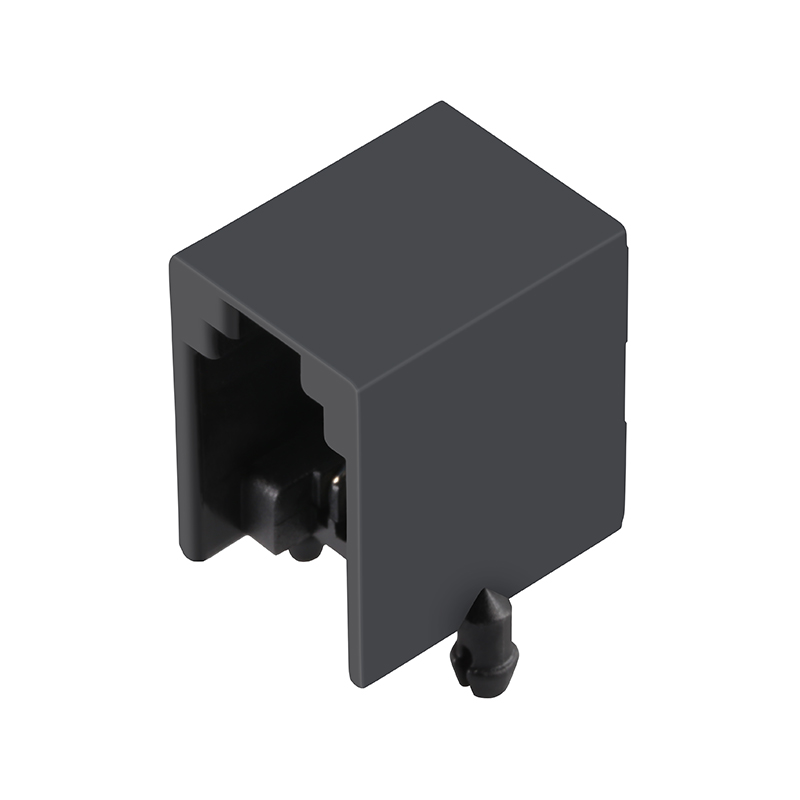

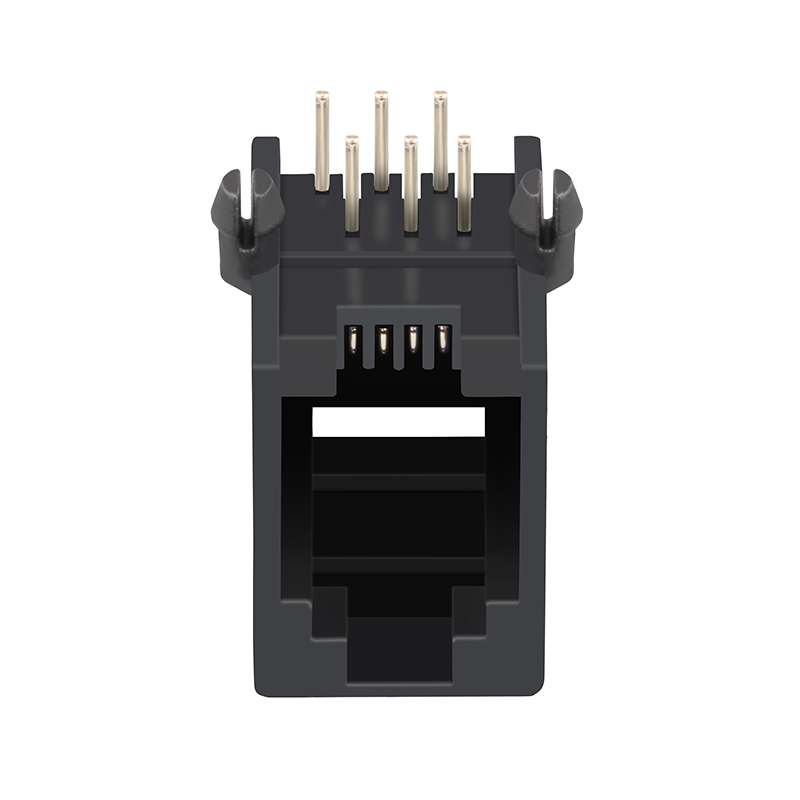

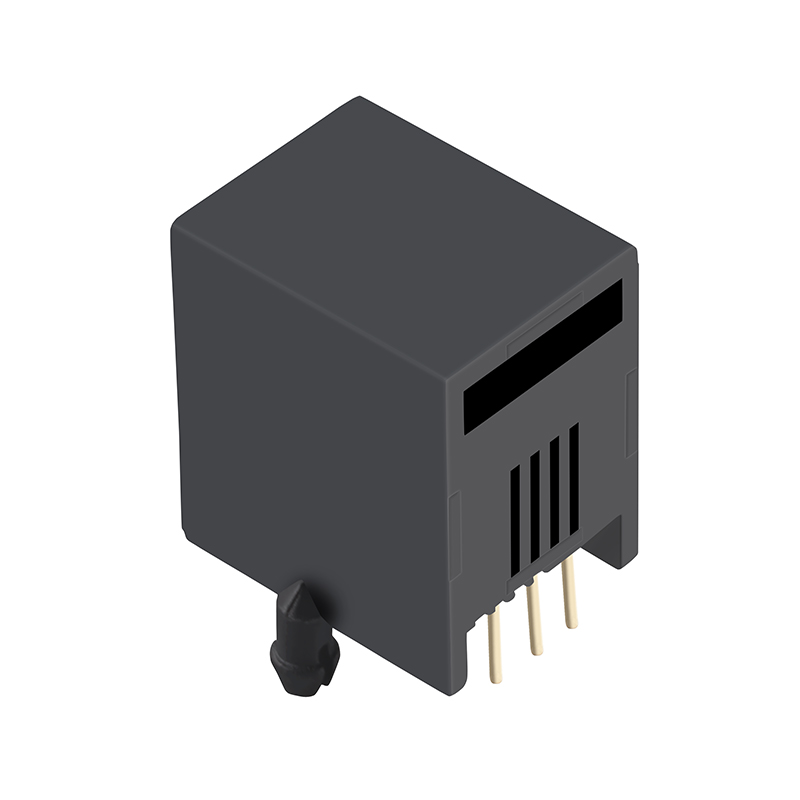

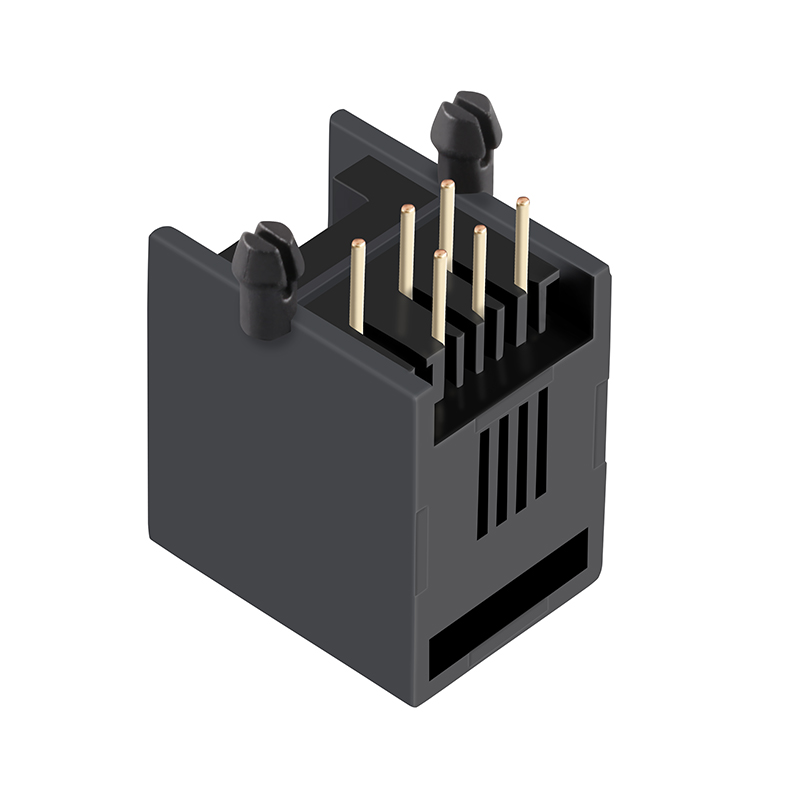

Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack

Product Description

RJ11 Connector Overview
🔌 Through Hole Side Entry Dip Tab Up 1x1 Port 6P6C RJ11 Connector Jack
Products Description
ItemRJ11 Jack
Part NumberLPJE8014NNL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts6p6c (RJ11, Ethernet)
Application-LanEthernet(Non PoE)
Number of Ports1x1 Port
LatchUp
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
LED OptionWithout
PCBFR4
PCB Retaining PostT POST
Temperature-40℃ TO 85℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product View 1

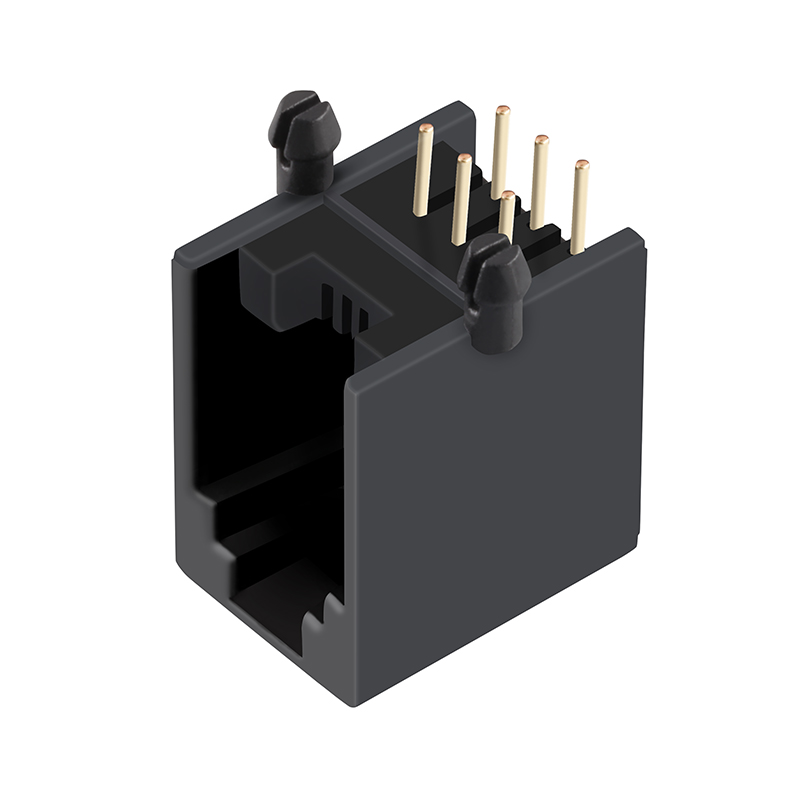

Product View 2
Technical Drawing
📂 Product Range Overview
RJ45 Family
Production Process
Quality Control
Factory Testing
Warehouse
Global Certificates
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers in over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.
Office Facility
Production Line
Testing Lab
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though the shipping fee should be covered by the recipient.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries and are happy to discuss your detailed requirements.
What is your core advantage?
With over 19 years of production experience, we have established long-term partnerships with major industry leaders globally.
