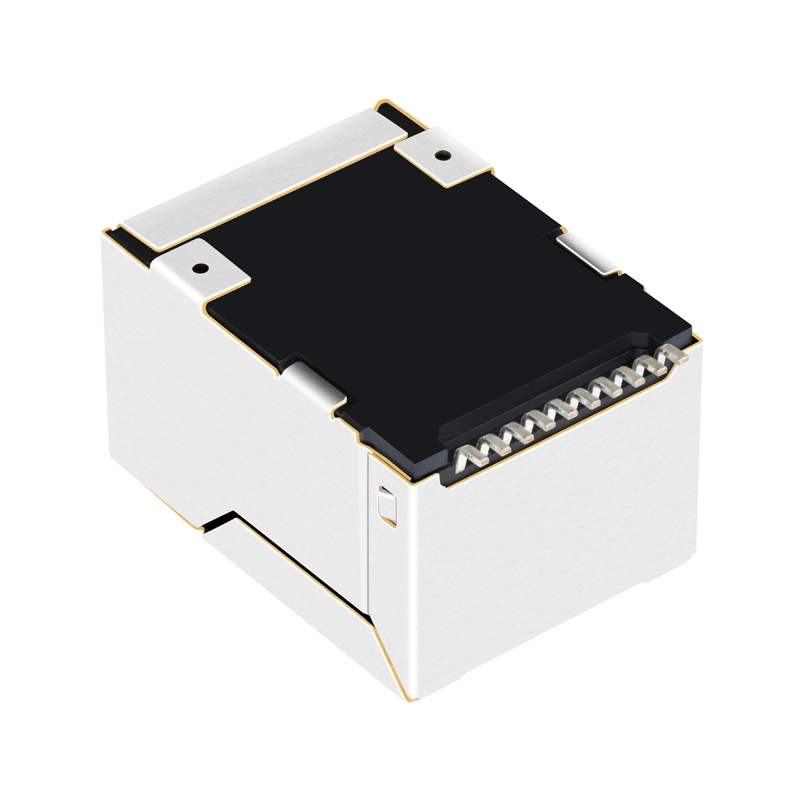

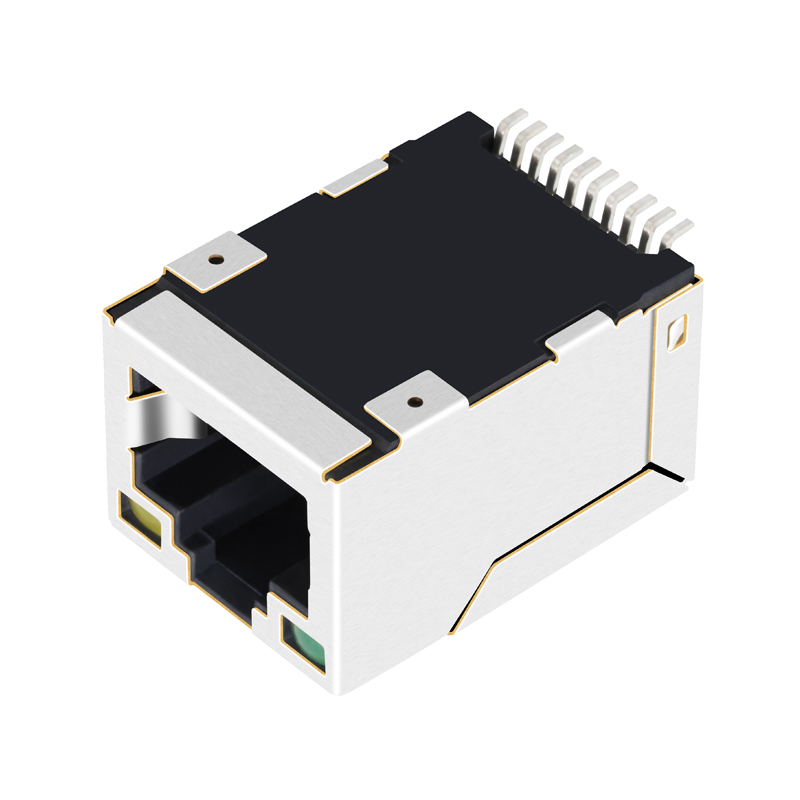

SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
1 / 5
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101

SMT Modular Jack RJ45 MIC24122-5101

Send Inquiry

Product Description

RJ45 Connector Types
LAN Transformer Overview
Send Inquiry To Get Latest Price List
SMT Modular Jack RJ45 Front View
SMT Modular Jack RJ45 Side View
SMT Modular Jack RJ45 MIC24122-5101
Products Description
Item RJ45 Female Connector
Bothhand Part Number MIC24122-5101
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product View 1
Product View 2

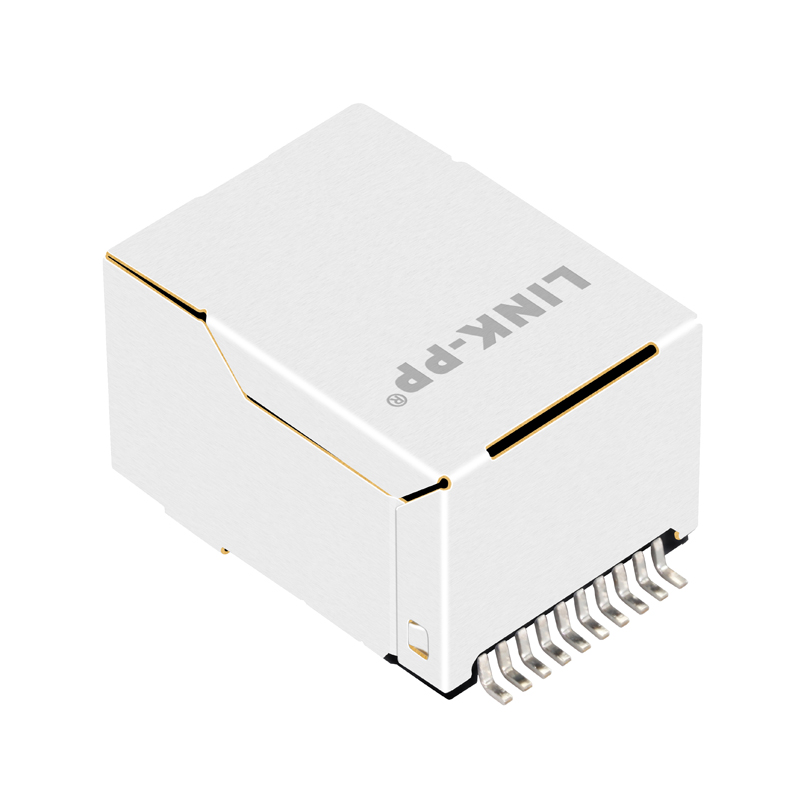

Product View 3
Product View 4

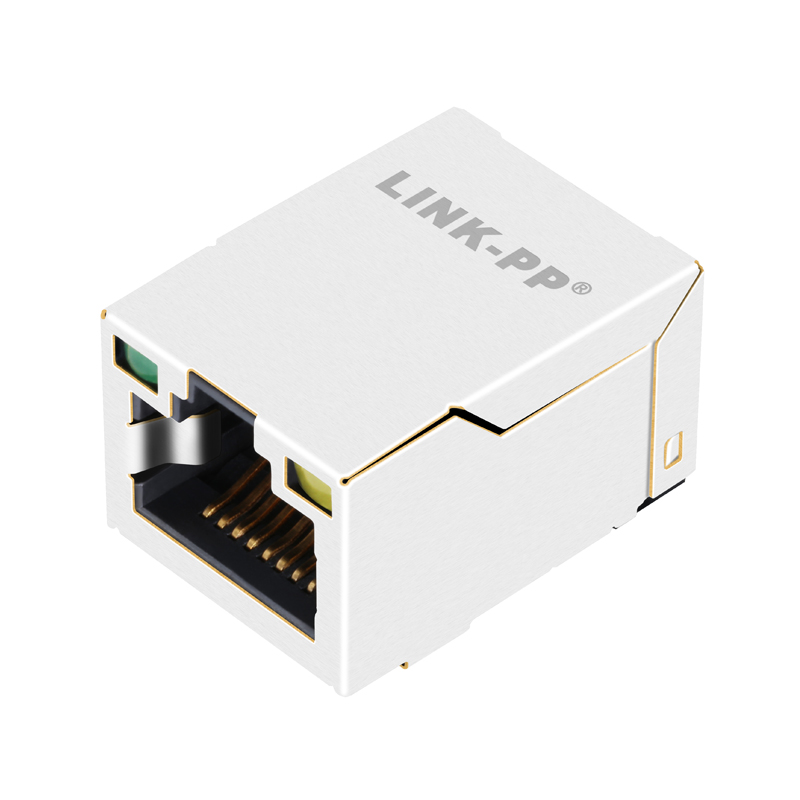

Product View 5

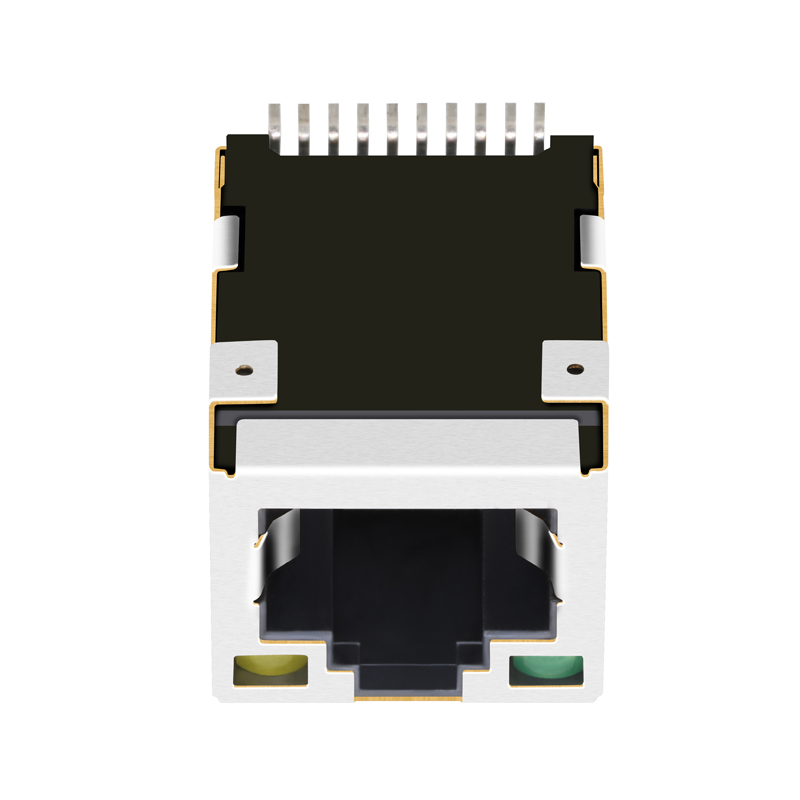

Product View 6
Product View 7
Product Details Overview
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2,000 staff members at present. With an abundant production capacity of 3,000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components as well as strong technical support.
Main Products:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions worldwide, covering major markets including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Key Clients & Partners:
Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements. We trust that our strength in the field and our commitment to high standards will make us a long-term partner for your business.
Factory Facility 1
Factory Facility 2
Factory Facility 3
Factory Facility 4
FAQ
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you would be responsible for the shipping fees.
Q What is your delivery time?
Products are ready to ship from stock, and it takes 15-30 days for mass production orders.
Q What after-sales service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can proceed with a detailed discussion of your requirements.
Q What is your advantage?
We possess 19 years of professional production experience and have been a trusted partner for global industry leaders for many years.
