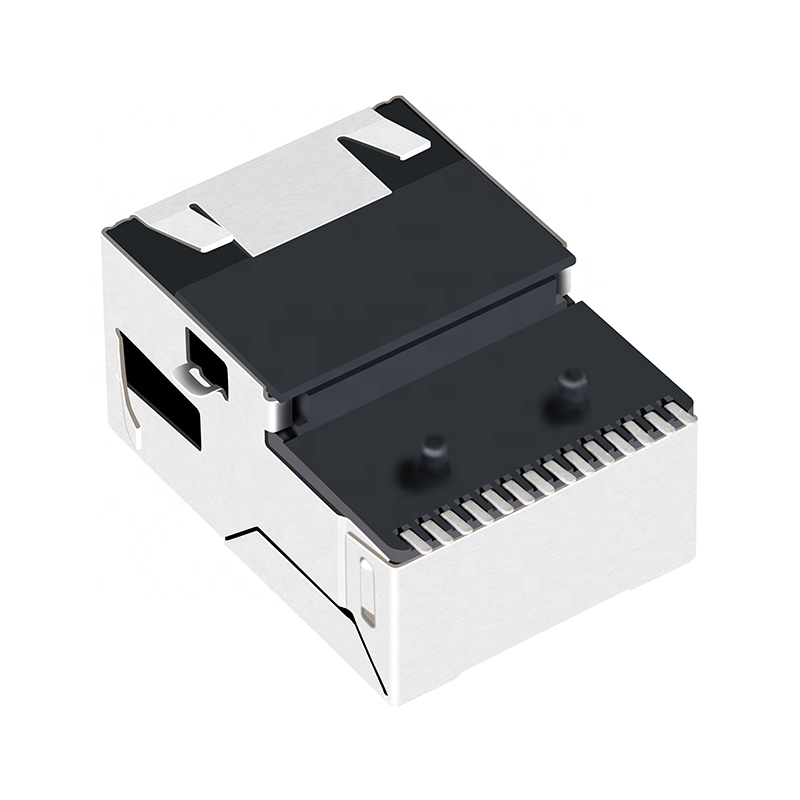

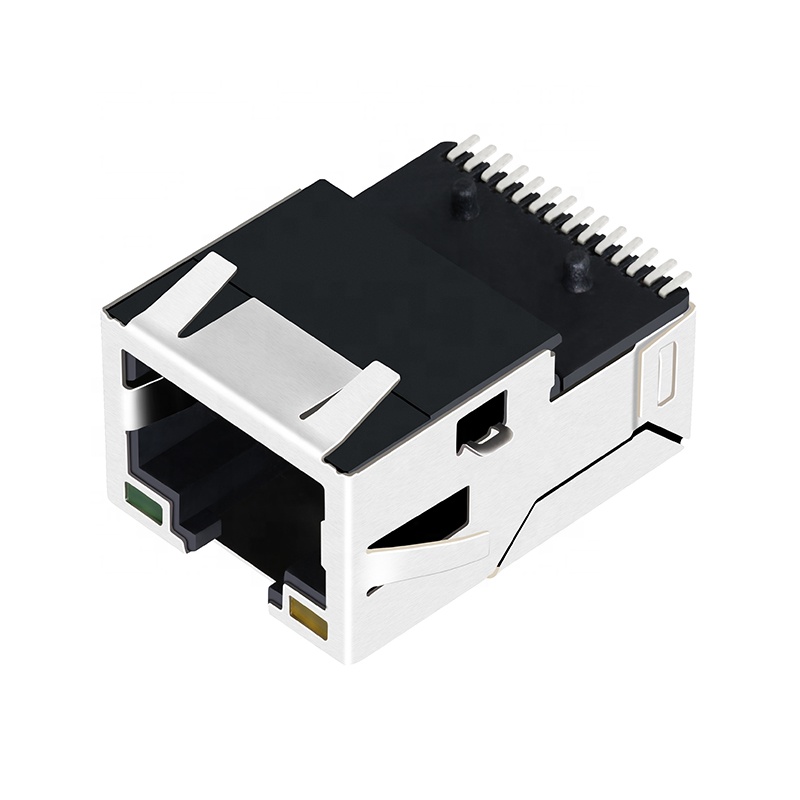

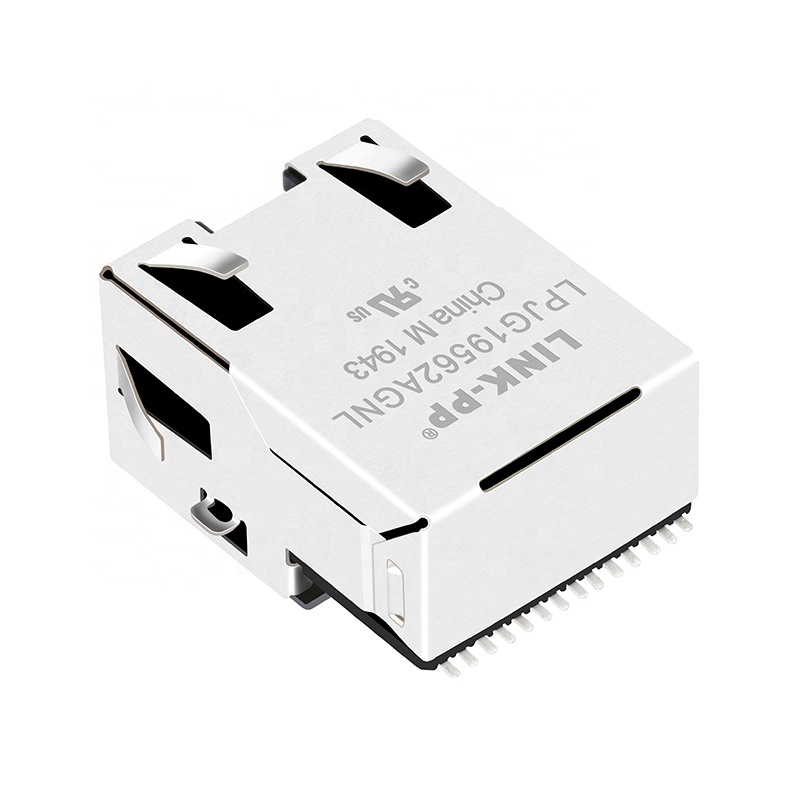

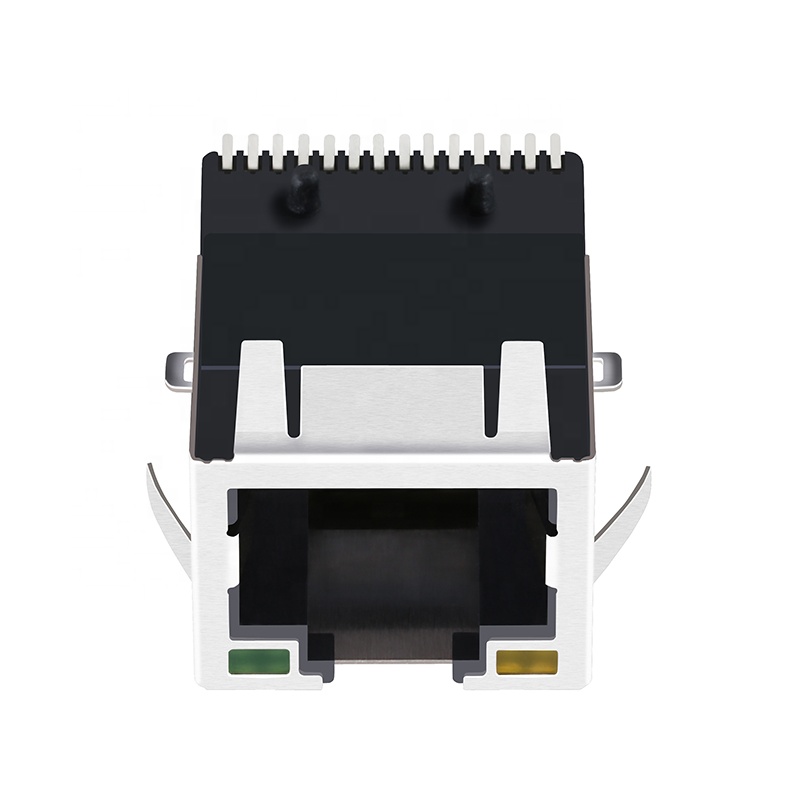

7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
1 / 5
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics

7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics

Send Inquiry

Product Description

7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack
Products Description
Item RJ45 Female Connector
Part Number LPJG19562AGNL
Bothhand Part Number 7498111120AR 7498111120R
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

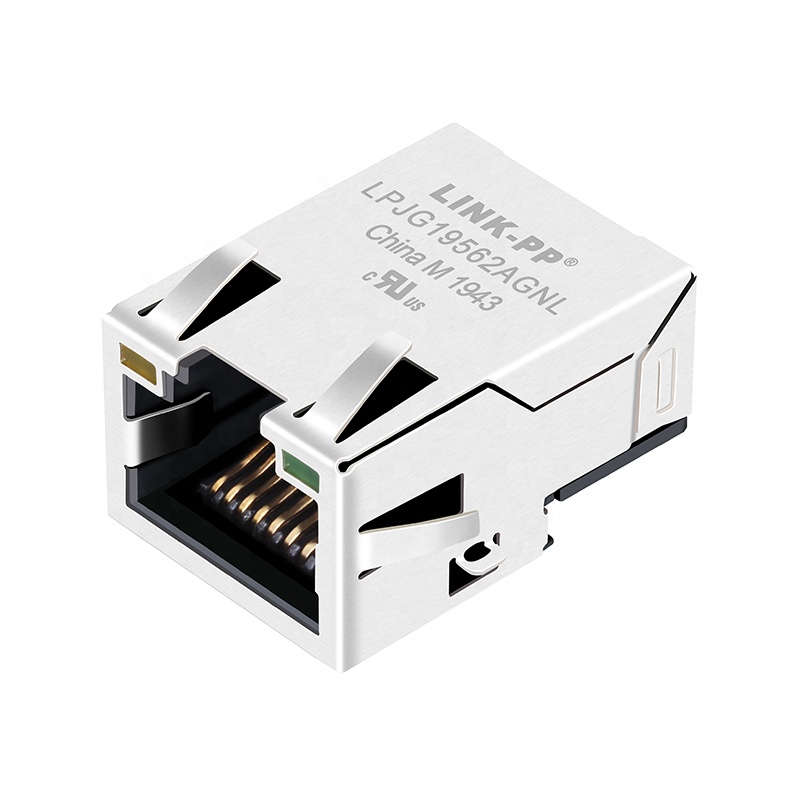

RJ45 Modular Jack Front View
RJ45 Modular Jack Side View
Product Demension Diagram 1
Product Demension Diagram 2
Product Demension Diagram 3
Product Demension Diagram 4
