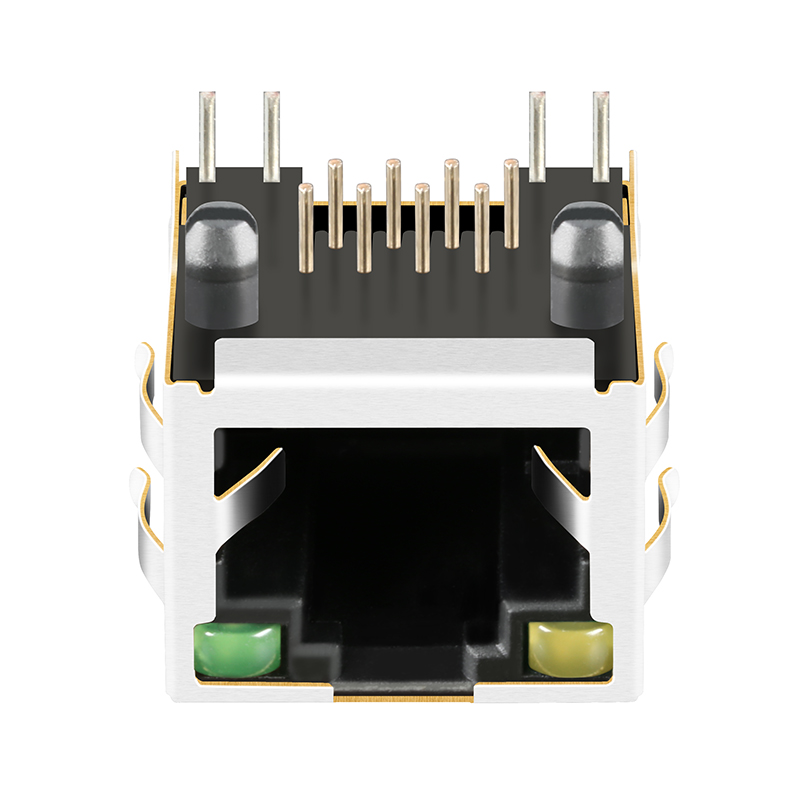

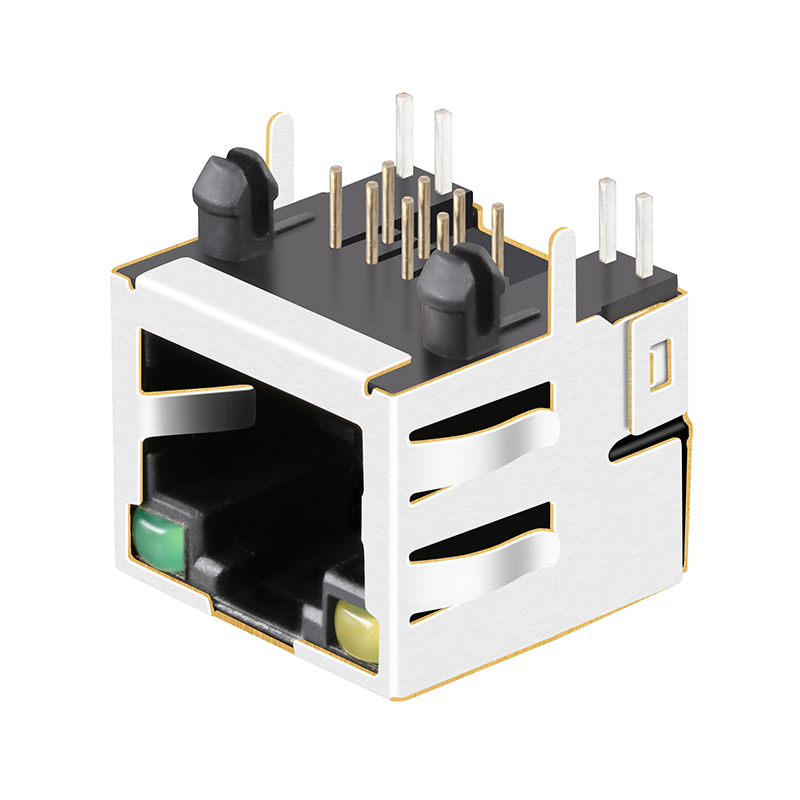

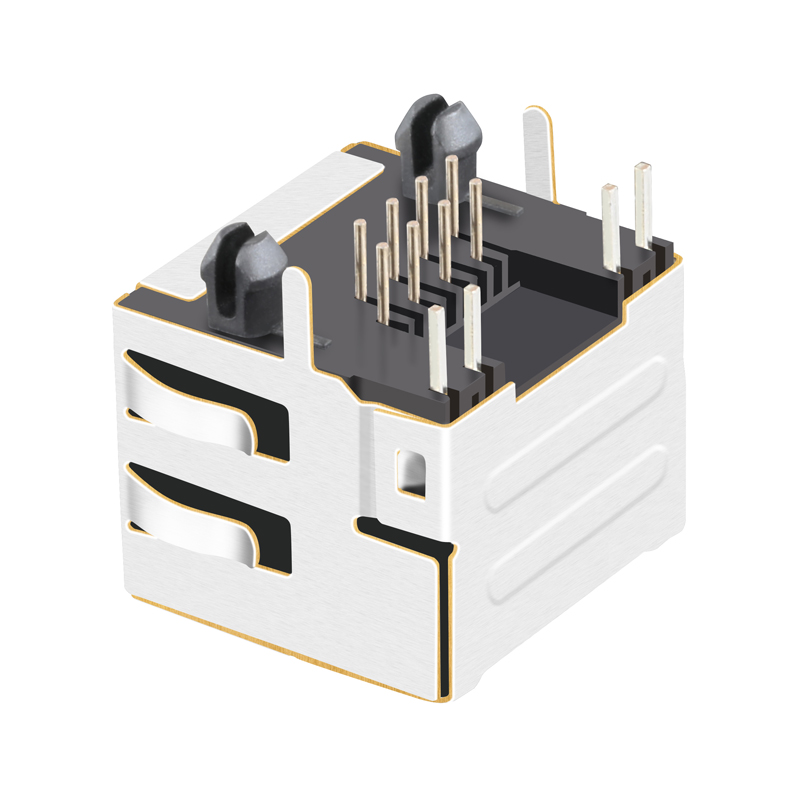

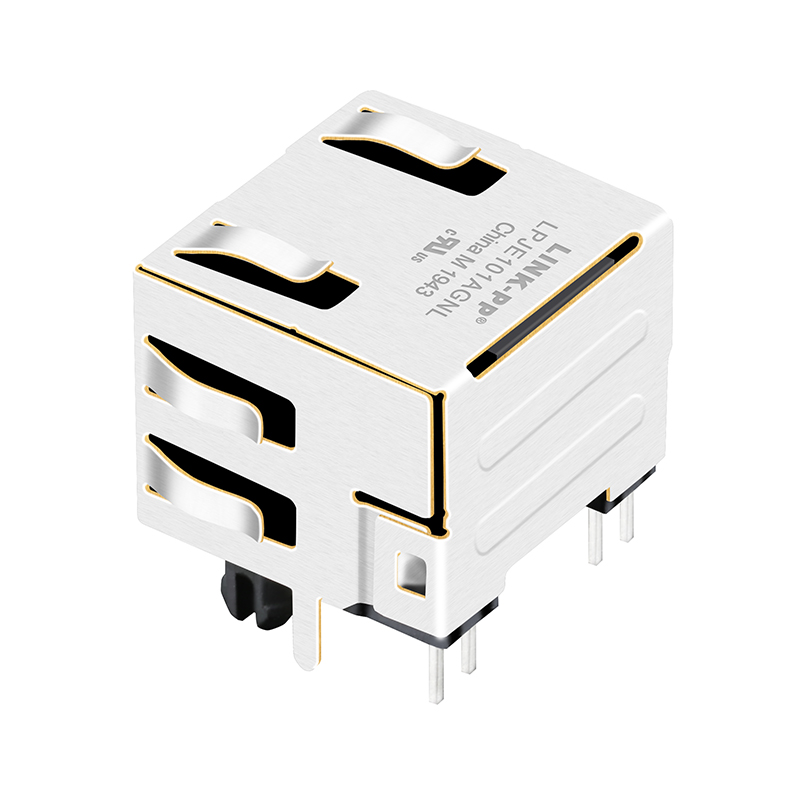

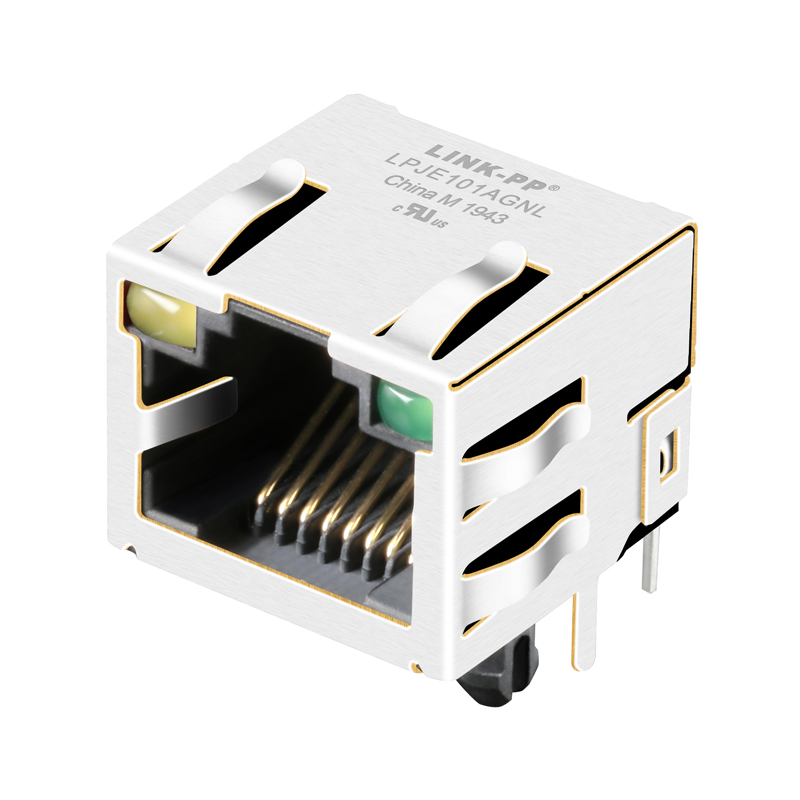

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

Product Description

Specification

Item	Value
Model Number	LPJE101AGNL
Part Status	Active
Connector Type	RJ45
Applications-Lan	-
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green
Number of Cores per Jack	-
Shielding	Shielded
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	-40°C ~ 85°C

Characteristics

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores

Packing & Delivery

The Part Number package: 100 pcs in 1 tray, 3000 tray in 1 carton, which is 54.5*28.5*27cm, 13.1KGS (3000pcs) of each carton.

Production Gallery

FAQ

1. Who are we?

We are a dedicated manufacturer and supplier of electronic communication components, operating since 2012. Our large-scale production setup enables us to serve clients across North America, South America, Southeast Asia, Eastern Europe, and other global regions.

2. How can we guarantee quality?

We implement rigorous quality control measures, including providing a pre-production sample before mass production begins, and conducting a final inspection on all products prior to shipment.

3. What can you buy from us?

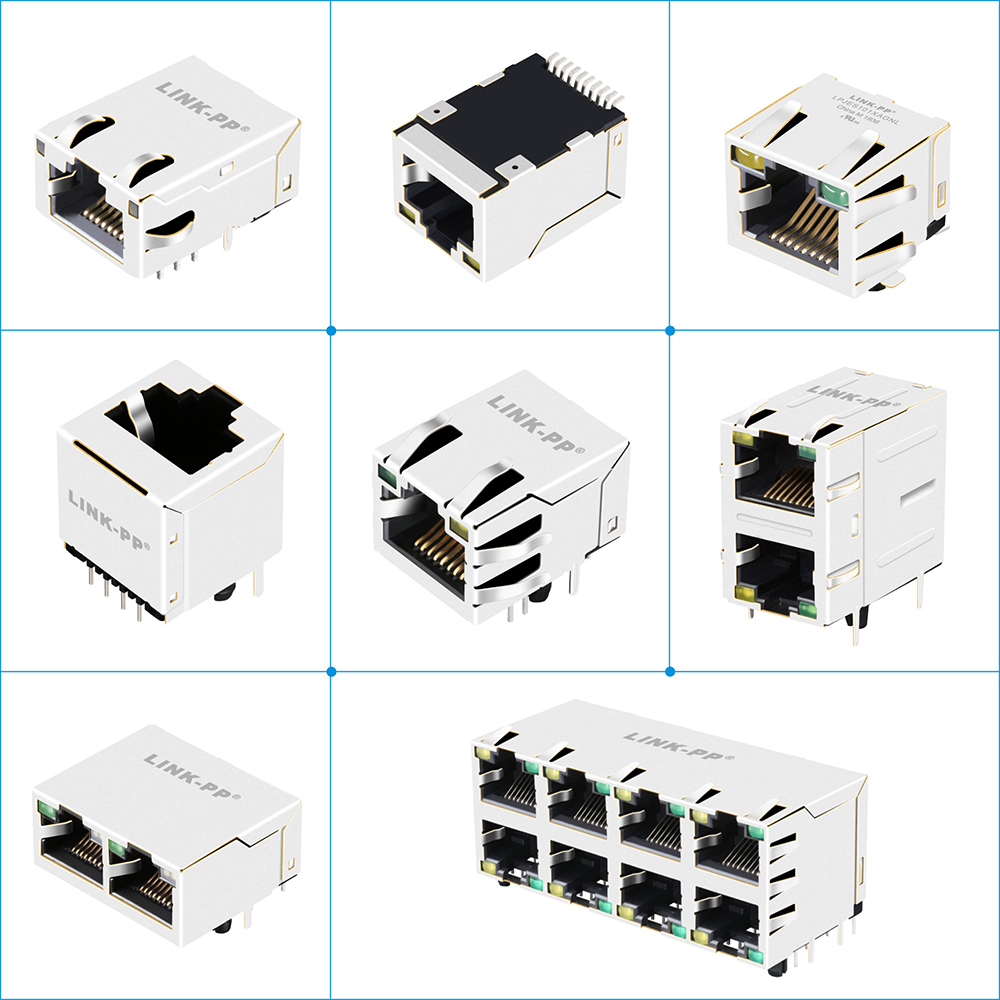

Our product line includes RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

4. Why should you buy from us instead of other suppliers?

We are a specialized manufacturer of RJ45 connectors and LAN transformers with extensive production capacity. Our manufacturing standards are fully certified by SGS, ISO9001, UL, REACH, and CE, guaranteeing reliable performance and compliance for enterprise applications.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Types: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian

6. What is the operating temperature range for the LPJE101AGNL connector?

The operating temperature range for the LPJE101AGNL connector model is -40°C to 85°C, making it suitable for a wide range of industrial and standard network environments.
