LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

Product Description

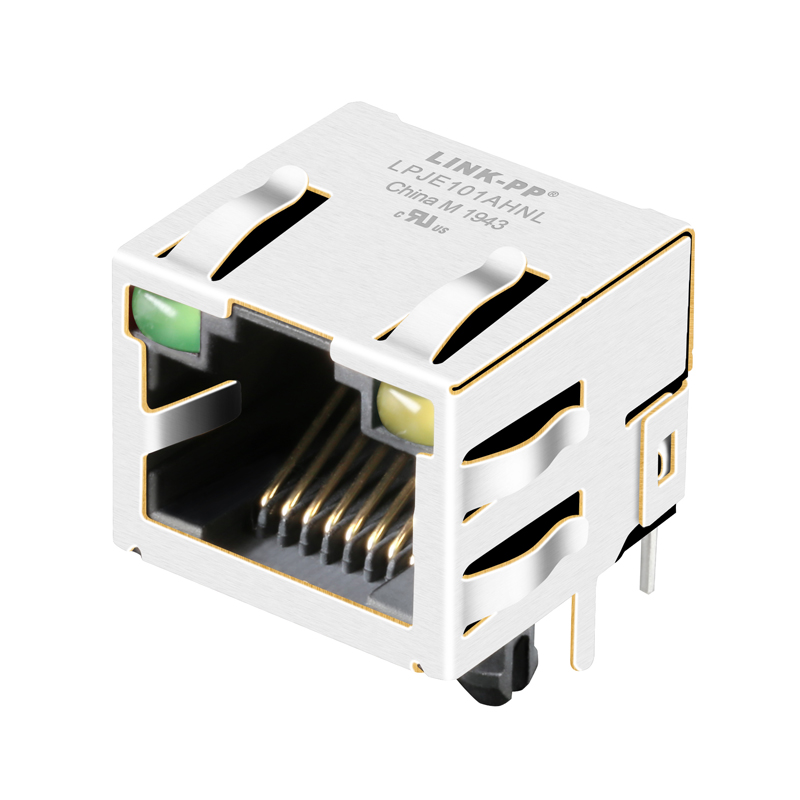

Product Image 1

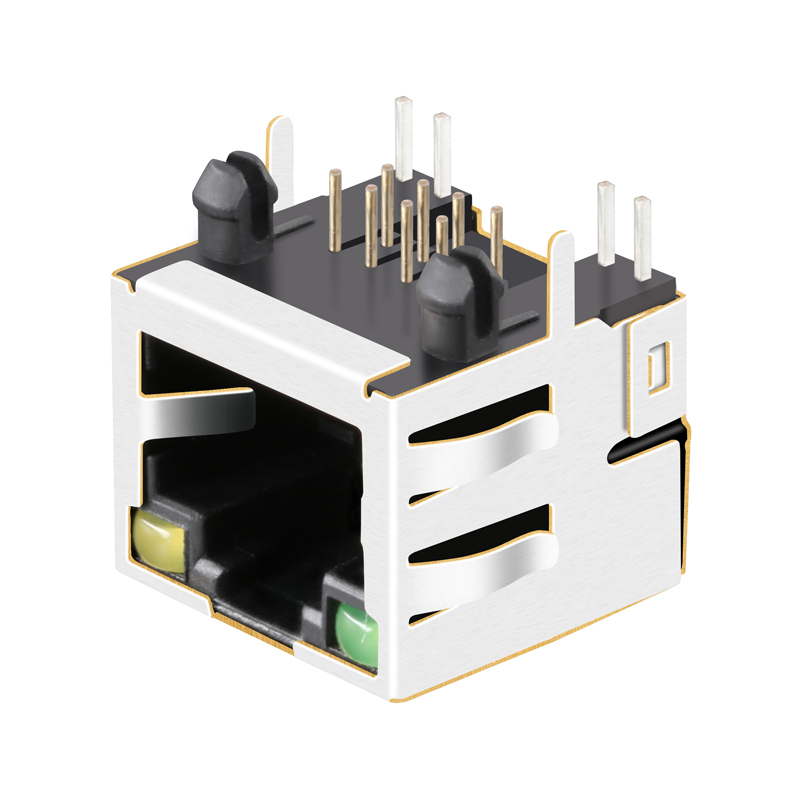

Product Image 2
Specification
Item Value
Model Number LPJE101AHNL
Part Status Active
Connector Type RJ45
Applications Without Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded, EMI Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Packing & Delivery
Package Type Tray
Carton Size 54.5*28.5*27 cm
G.W / Carton 13.1 kg
Qty / Carton 3000 pcs
SPQ 100 pcs
N.W / pcs 0.004 kg
Packing Details
Production Facilities

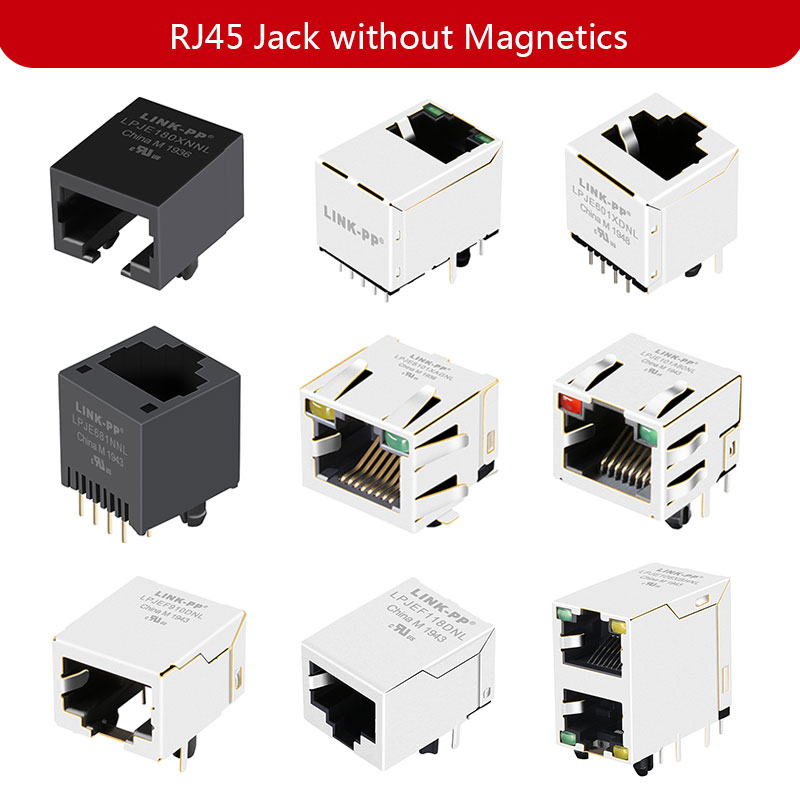

Production Facility 1
Production Facility 2

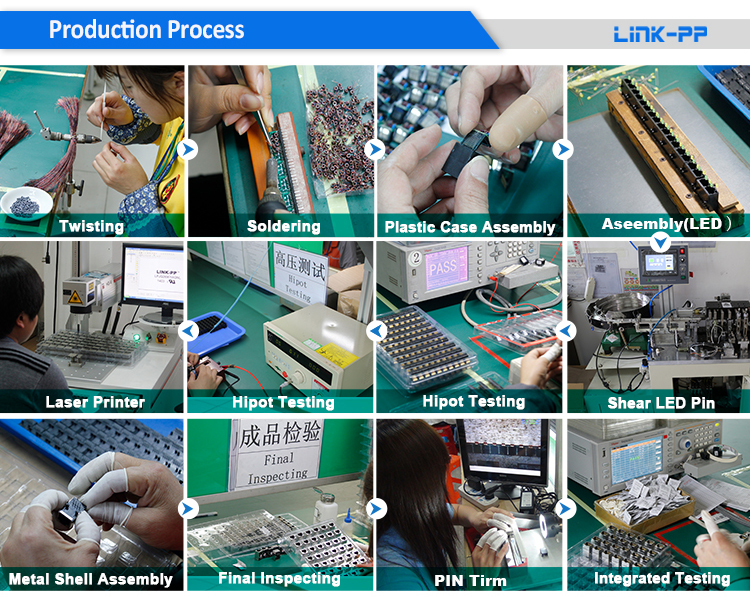

Production Facility 3
Production Facility 4
Production Facility 5
Production Facility 6
Frequently Asked Questions
Q What is the model number and main design of this connector?
The model number is LPJE101AHNL. It is a single-port RJ45 connector designed for configurations without magnetics, featuring a board guide and a 90° angle (Right) orientation.
Q What are the mounting and termination styles for model LPJE101AHNL?
This connector is designed for Through Hole mounting and uses solder termination, which provides a highly secure and durable mechanical and electrical connection.
Q What color LEDs does this RJ45 connector feature?
It comes equipped with dual-color Yellow and Green LEDs, which allow for easy network activity monitoring and diagnostic troubleshooting.
Q What is the operating temperature range for this connector?
The connector operates reliably under harsh environment conditions, featuring an operating temperature range of -40°C to 85°C.
Q What are the standard packaging dimensions and shipping specifications?
Products are packaged in secure trays. Each Standard Package Quantity (SPQ) contains 100 pieces, and a full carton contains 3000 pieces. The standard carton size is 54.5*28.5*27 cm with a gross weight of 13.1 kg.
Q Does this RJ45 connector feature shielding protection?
Yes, it features integrated shielding with EMI fingers to minimize electromagnetic interference, ensuring optimal signal integrity.
