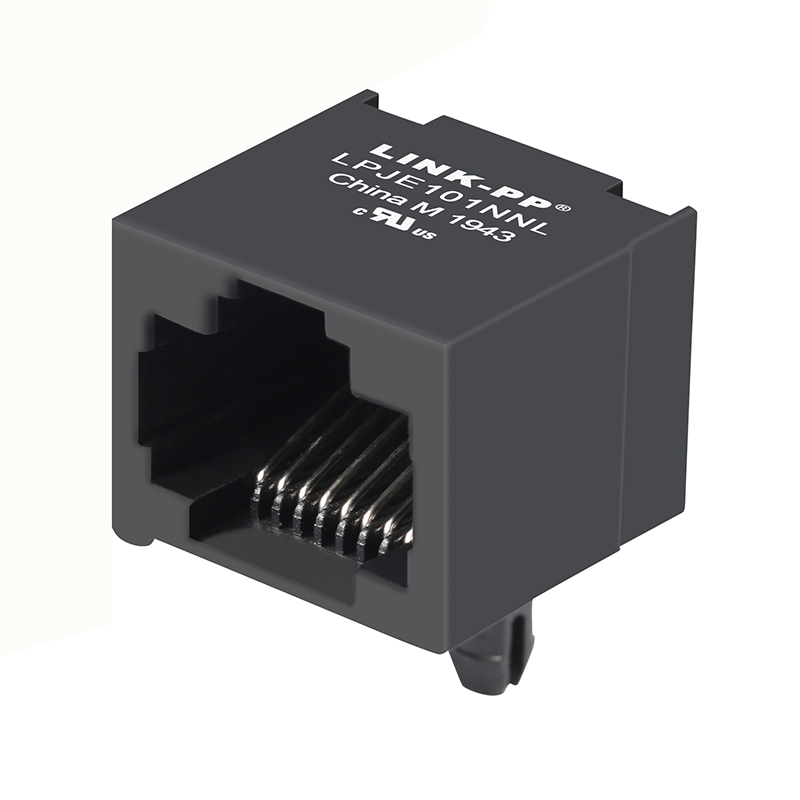

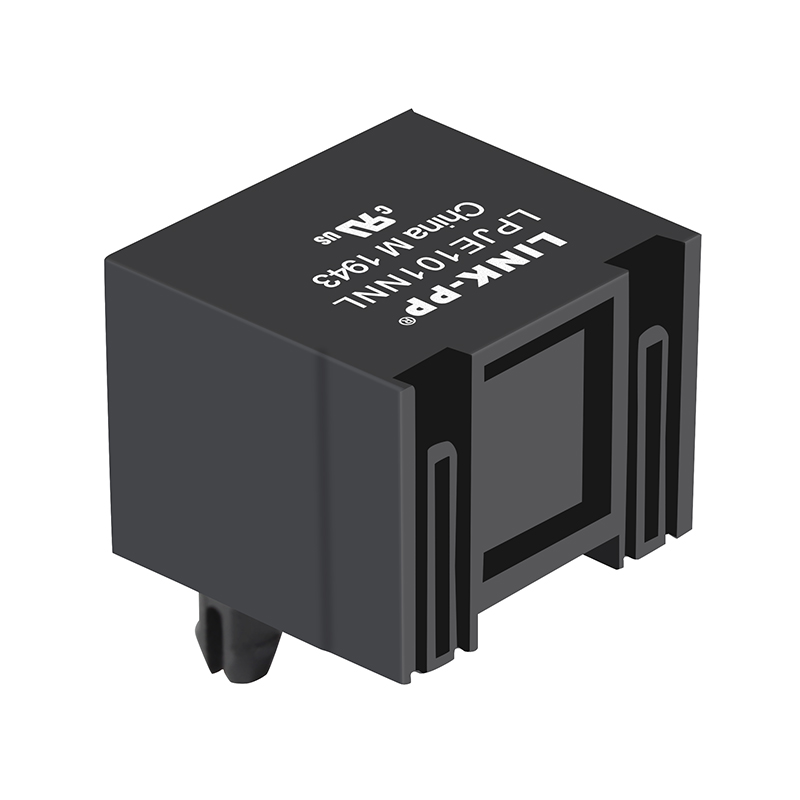

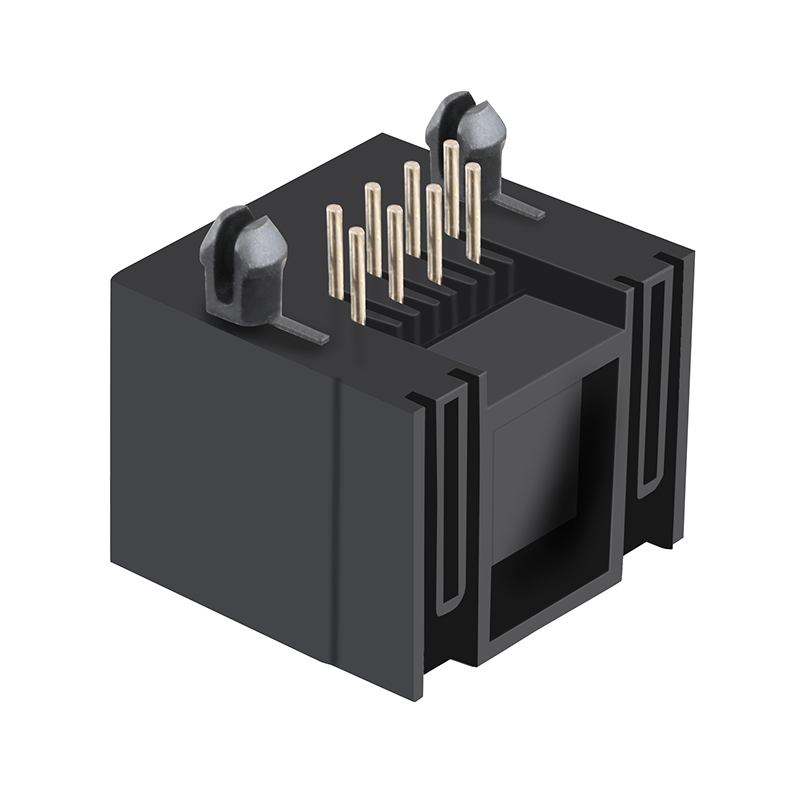

RJHSE-5085 without Transformer Jack RJ45 Female Connector

Product Description

RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJHSE-5085 RJ45 Female Connector
Products Description
Item RJ45 Modular Jack
Part Number LPJE101NNL
Cross Part Number RJHSE-5085
Part Status Active
Connector Type Jack
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Jack Detail View 1

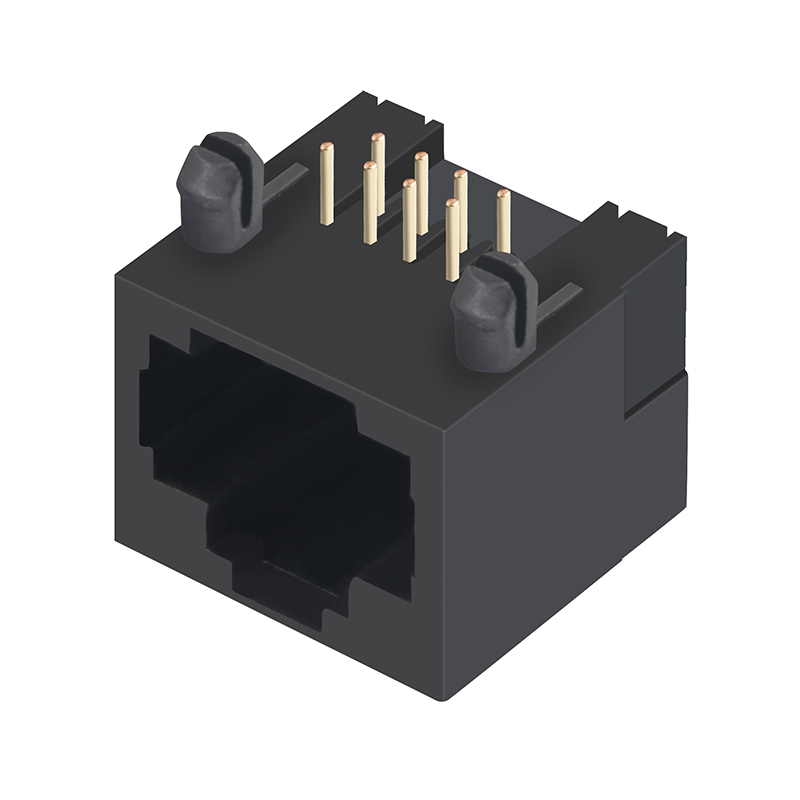

RJ45 Jack Detail View 2

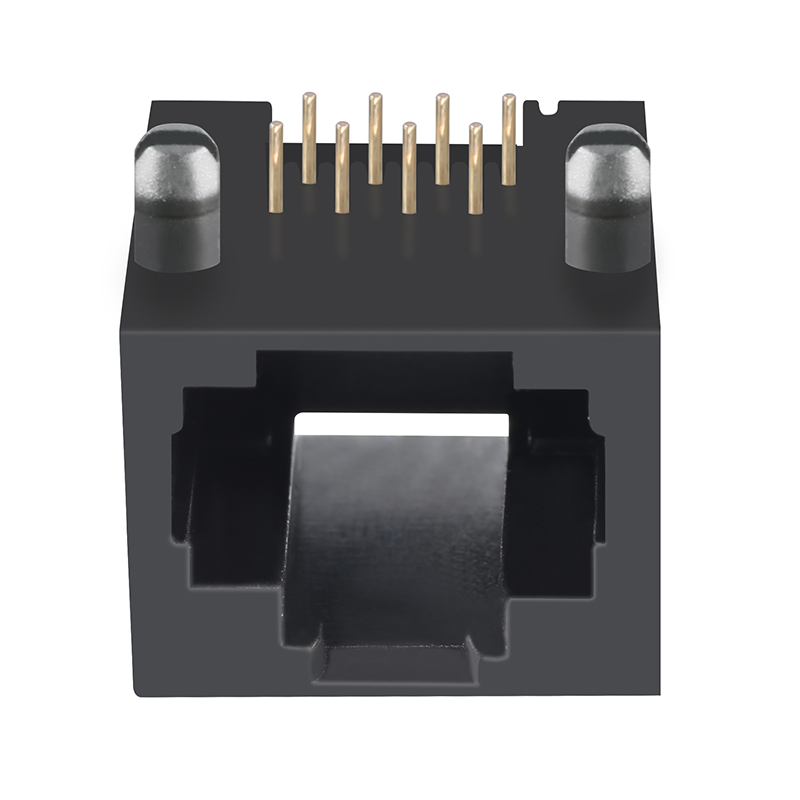

RJ45 Jack Detail View 3
Dimensional Drawing 1
Dimensional Drawing 2
Dimensional Drawing 3
Dimensional Drawing 4
Product Range Overview
Product Categories Range
Specification Detail 1
Specification Detail 2
Specification Detail 3
Specification Detail 4
Specification Detail 5
Specification Detail 6
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components of OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory Workshop
Testing Equipment
Quality Assurance Standard
FAQ
1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered by the client.
3 What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production orders.
4 What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5 Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion regarding your specific design requirements.
6 What is your advantage?
We have 19 years of professional production experience and have been a trusted partner to major global electronics manufacturing companies for many years.
