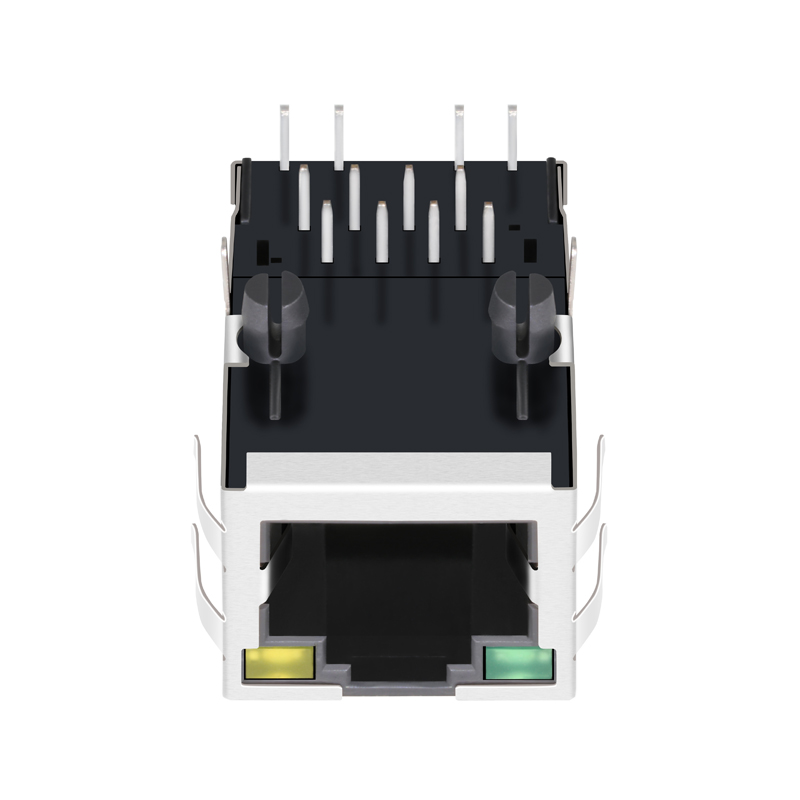

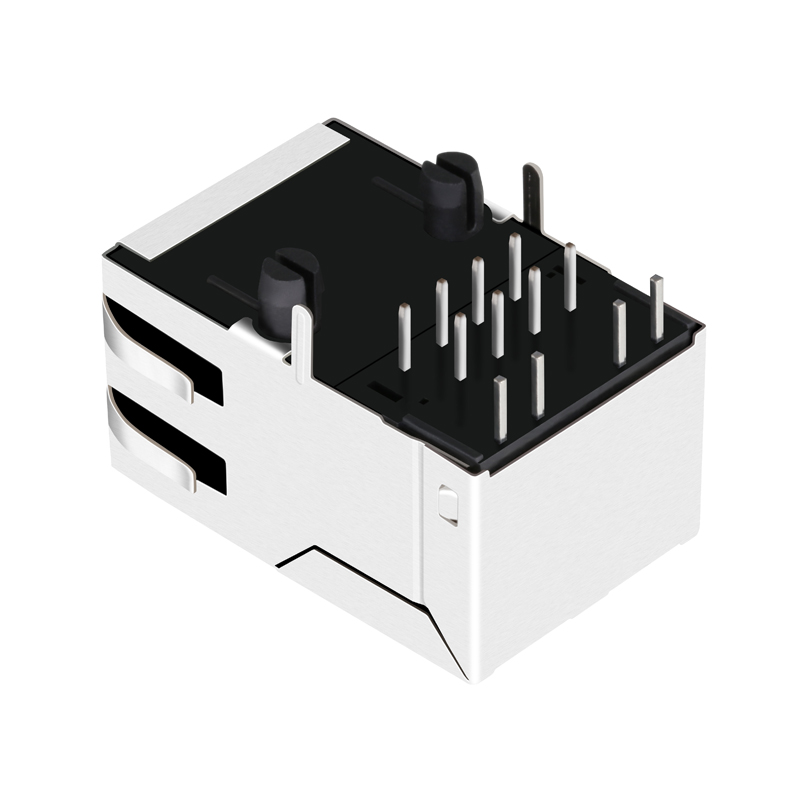

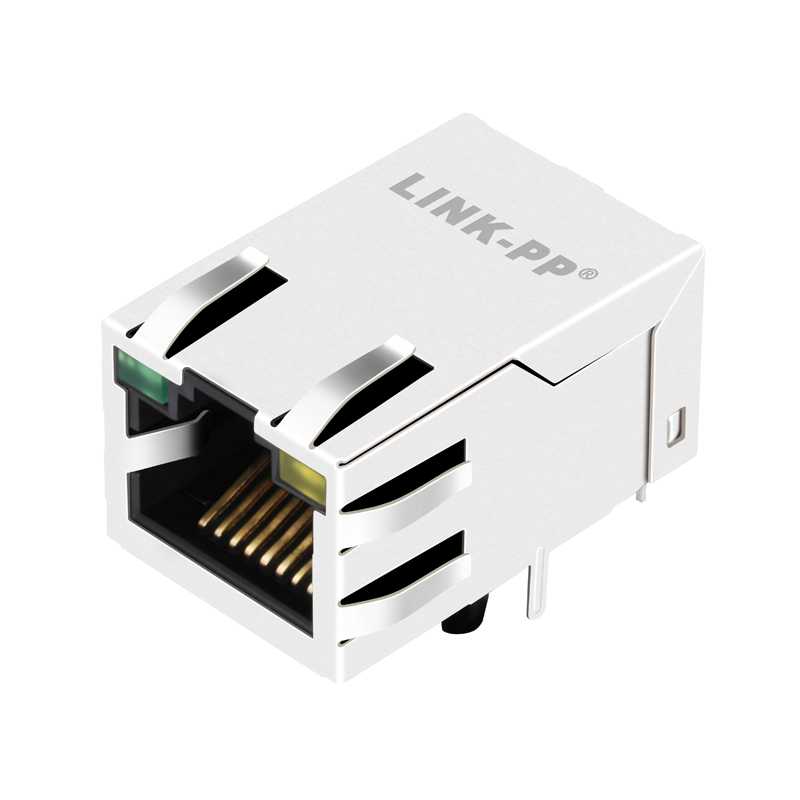

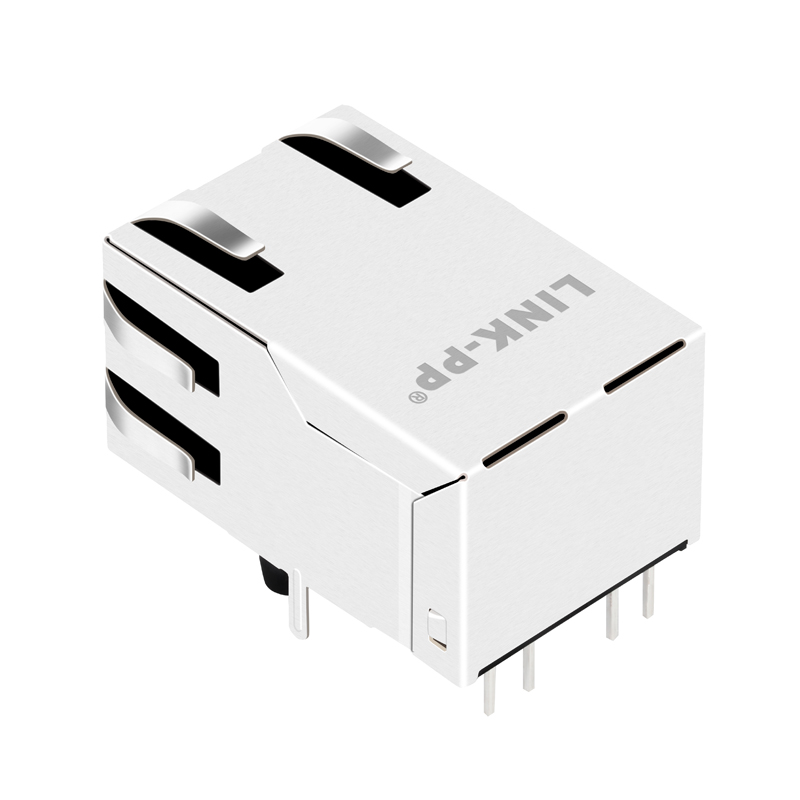

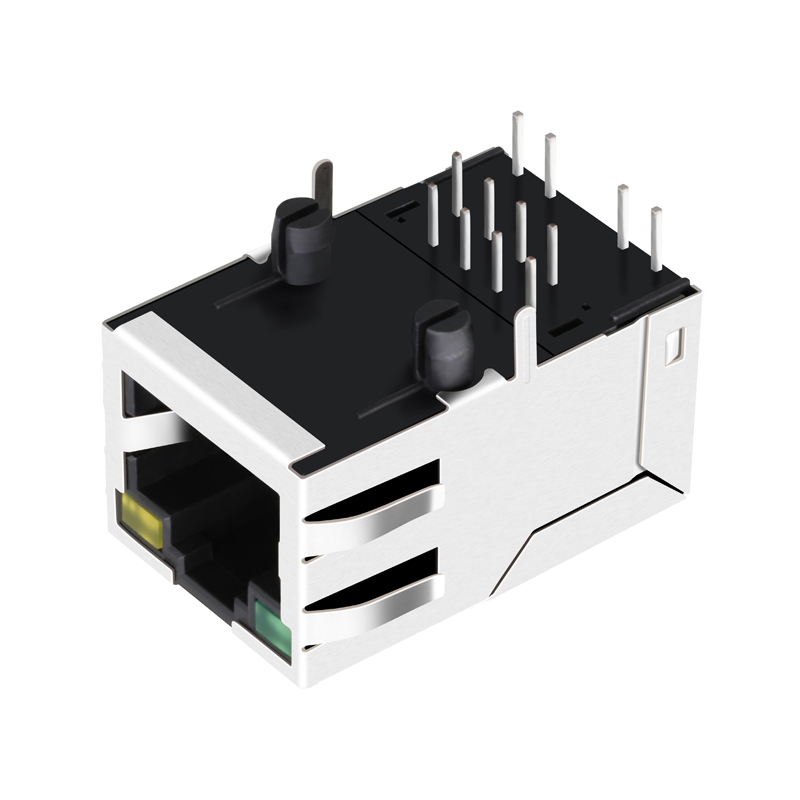

Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C
Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C
Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C
Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C
Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C
1 / 5
Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C
Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C
Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C
Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C
Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C

Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C

Send Inquiry

Product Description

Product Categories Overview

Right Angle Low Profile RJ45 Inverted Modular Jack HR871182C

Products Description
Item RJ45 Female Connector
Part Number HR871182C
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Detail View 1
Product Detail View 2
Product Detail View 3
Product Detail View 4
Product Range Specifications
Technical Drawings & Specifications
Drawing Page 1
Drawing Page 2
Drawing Page 3
Drawing Page 4
Drawing Page 5
Drawing Page 6
Drawing Page 7
Frequently Asked Questions
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping cost.
Q What is your delivery time?
Stocked items are ready to ship immediately, while mass production orders typically take 15 to 30 days.
Q What after-sales service can you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
Q Can you accept OEM/ODM orders?
Yes, please contact us with your details so we can carry out a detailed discussion.
Q What is your advantage?
We possess 19 years of professional production experience and have served as a trusted partner for industry leaders for many years.
