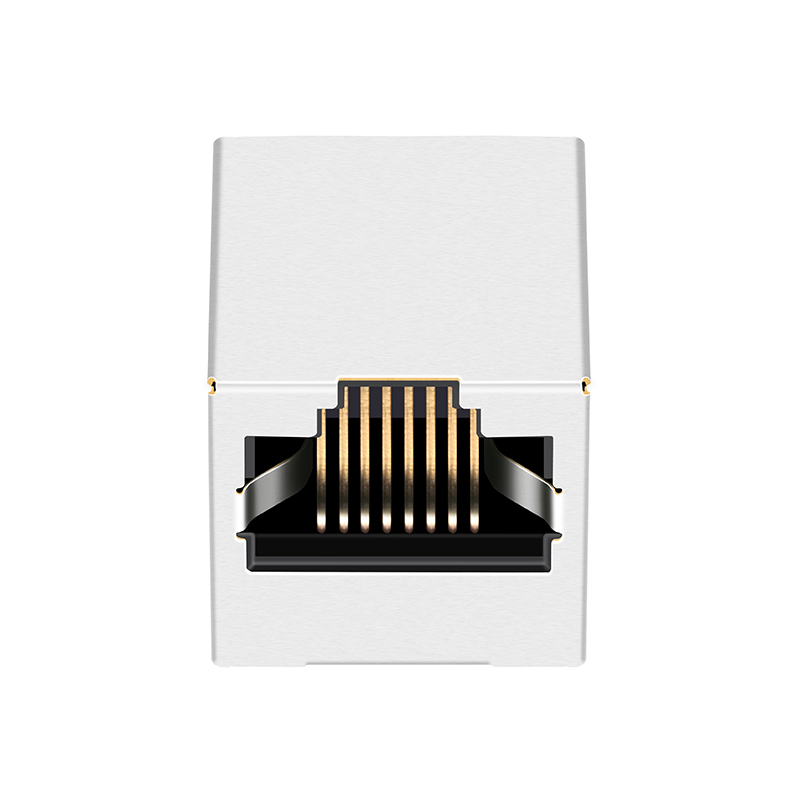

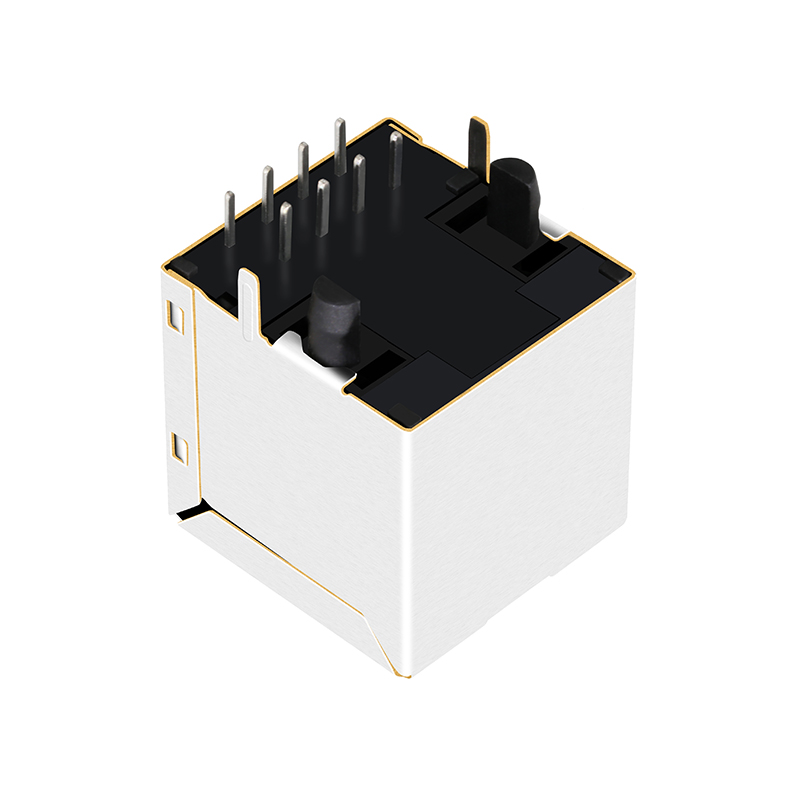

51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
1 / 5
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds

51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds

Send Inquiry

Product Description

51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
RJ45 Connector Overview
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0011DNL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specification details
Product Series Range Overview
Product Series Map
Dimension drawing 1 Dimension drawing 2 Electrical performance schematic 1 Electrical performance schematic 2
Package details Testing equipment
About Us
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Production facility Quality inspection Warehouse
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping cost must be covered by the buyer.
3. What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes between 15 and 30 days.
4. What after-sales service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are accepted. Please send us your inquiry and details for a thorough discussion.
6. What is your manufacturing advantage?
We possess over 19 years of professional manufacturing experience and have built long-standing partnerships with industry-leading global enterprises.
