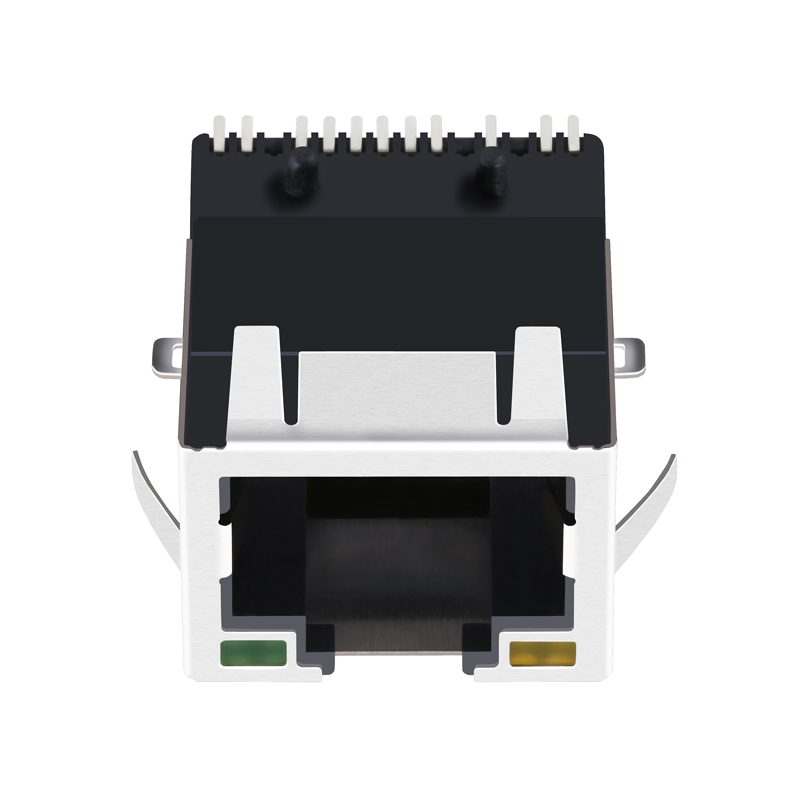

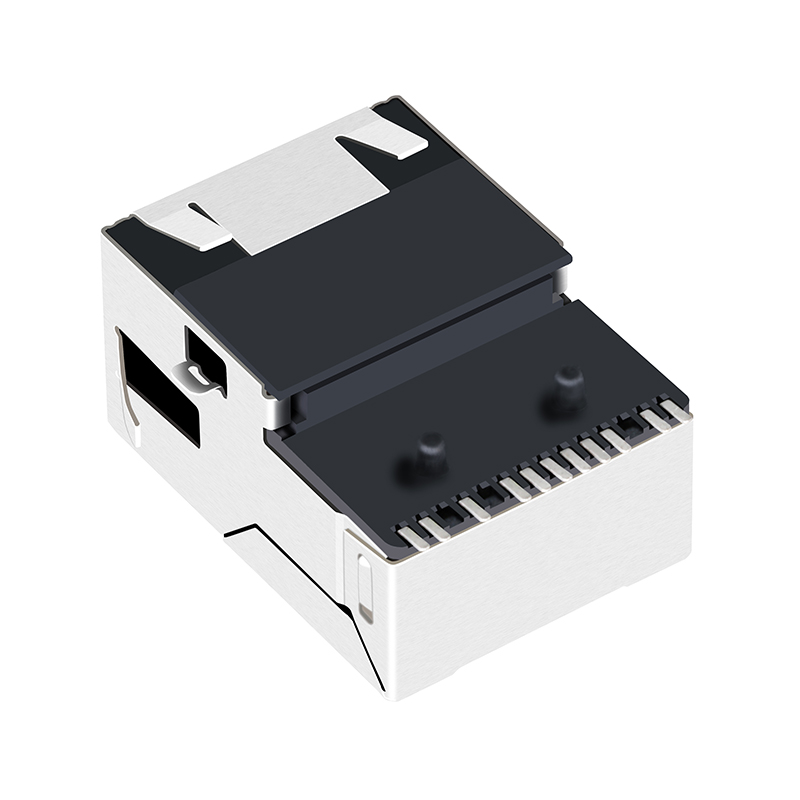

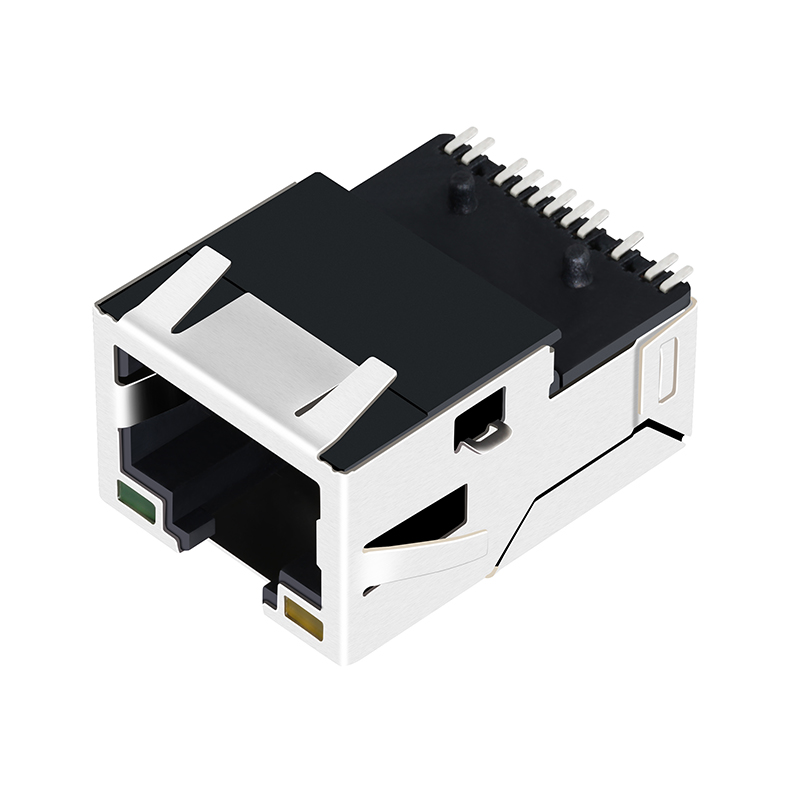

7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds
7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds
7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds
7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds
7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds
1 / 5
7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds
7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds
7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds
7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds
7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds

7498011122 7498011122AR Tab up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With Leds

Send Inquiry

Product Description

Ethernet RJ45 Connector Banner
7498011122 / 7498011122AR Tab Up 10/100 Base-t SMT Magnetic Ethernet Surface Mount RJ45 Connector With LEDs
Products Description
Item RJ45 Female Connector
Part Number LPJ19911ADNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 180° Angle
PCB Mount Angle Side Entry
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T Post
Temperature -40℃ to 85℃
Bst Circuit Yes
AutoMDIX Yes
Contact Mating Area Plating Gold 6u" / 15u" / 30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product View 1 Product View 2 Product View 3 Product View 4
Product Categories Overview
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Technical Drawing 4 Technical Drawing 5 Technical Drawing 6
Frequently Asked Questions
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee is to be paid by the customer.
Q What is your delivery time?
Items currently in stock are ready to ship. For mass production orders, the delivery time ranges between 15 to 30 days.
Q What after-service support do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send your specific inquiry to us so we can proceed with a detailed discussion regarding your project requirements.
Q What are your key advantages?
We bring over 19 years of professional production experience and have established long-term partnerships with leading global technology brands.
