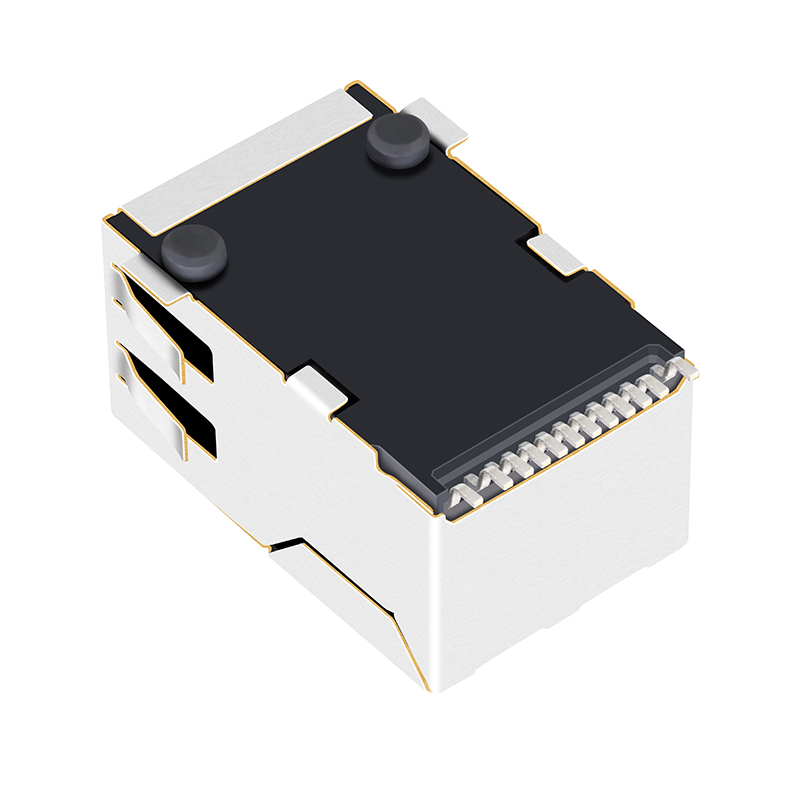

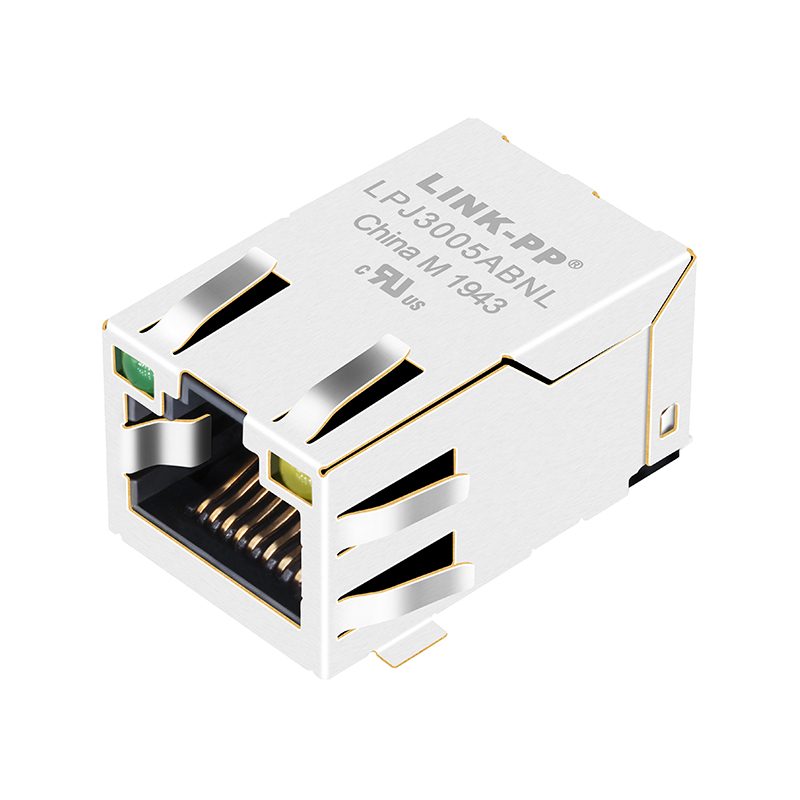

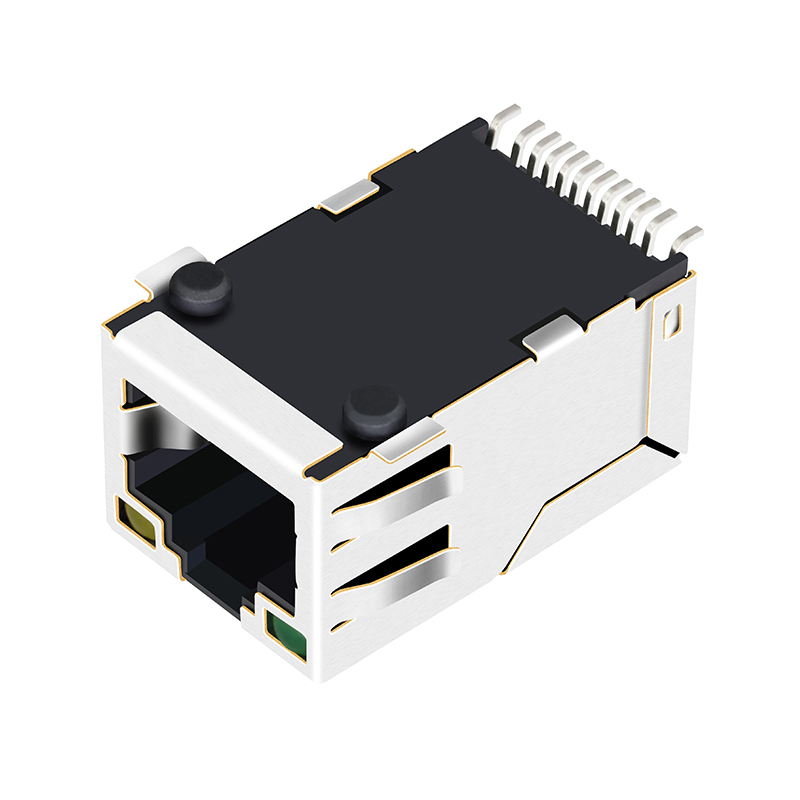

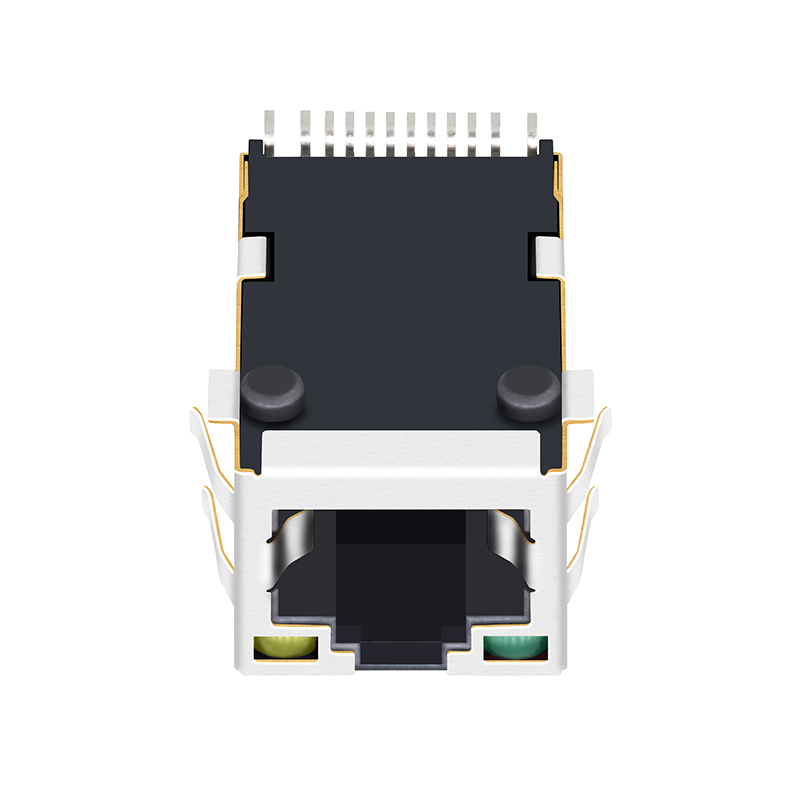

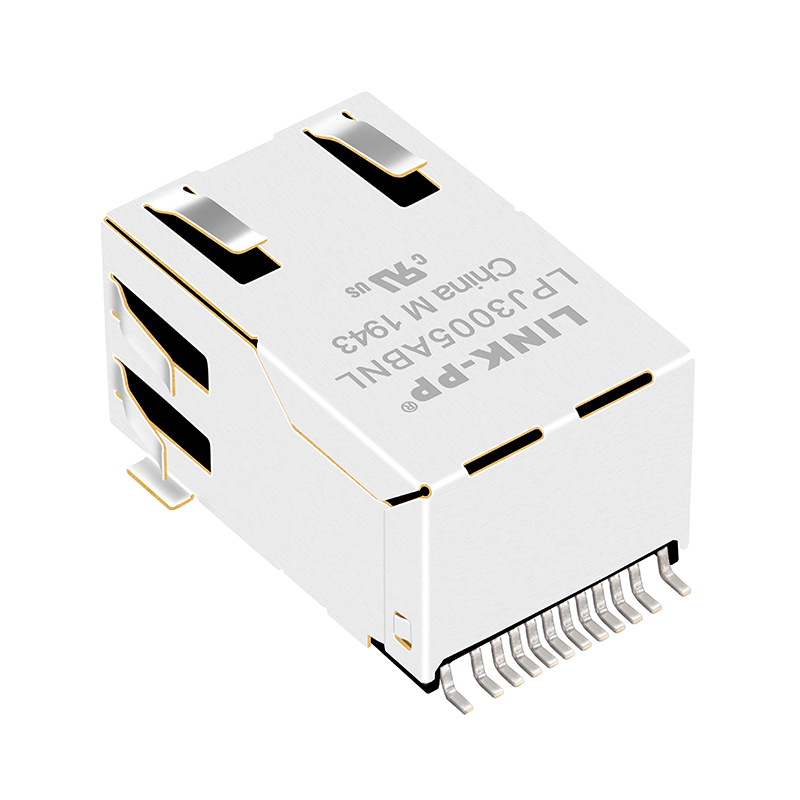

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
⚡ Products Description & Technical Specifications
| Item | RJ45 Female Connector |
| Part Number | LPJ3005ABNL |
| Cross Reference | JX30-0005NL 74980111211 J3011G21DNL |
| Part Status | Active |
| Connector Type | Jack |
| Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch Direction | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| Temperature Range | -40℃ TO 85℃ |
| BST Circuit | Yes |
| AutoMDIX | YES |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
🏢 Professional Manufacturing & Quality Control
Established in 1997, the company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier to OEMs, contract manufacturers, and CEMs, supporting more than 10,000+ customers across 200 countries.
❓ Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing, though shipping costs are typically covered by the customer.
What is your standard delivery time?
Stock items are ready to ship immediately. For mass production, the typical lead time is between 15 to 30 days.
What kind of after-sales service do you provide?
We provide a one-year warranty period and offer 24-hour online technical support to assist with any issues.
Do you accept OEM or ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your specific technical requirements.
What are your core advantages?
With over 19 years of production experience, we have established long-term partnerships with industry leaders, ensuring high reliability and advanced technology.
