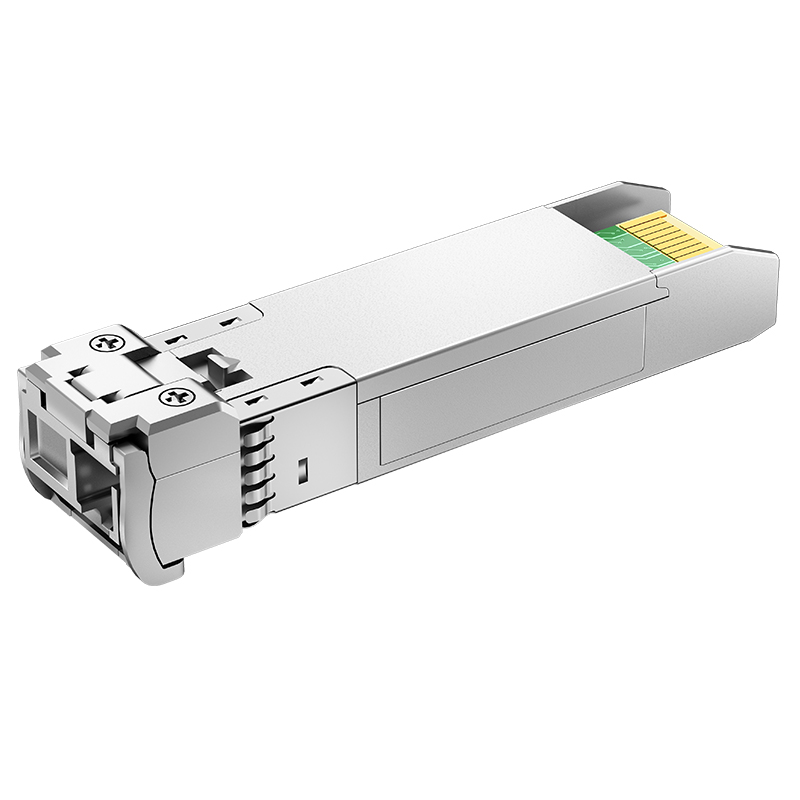

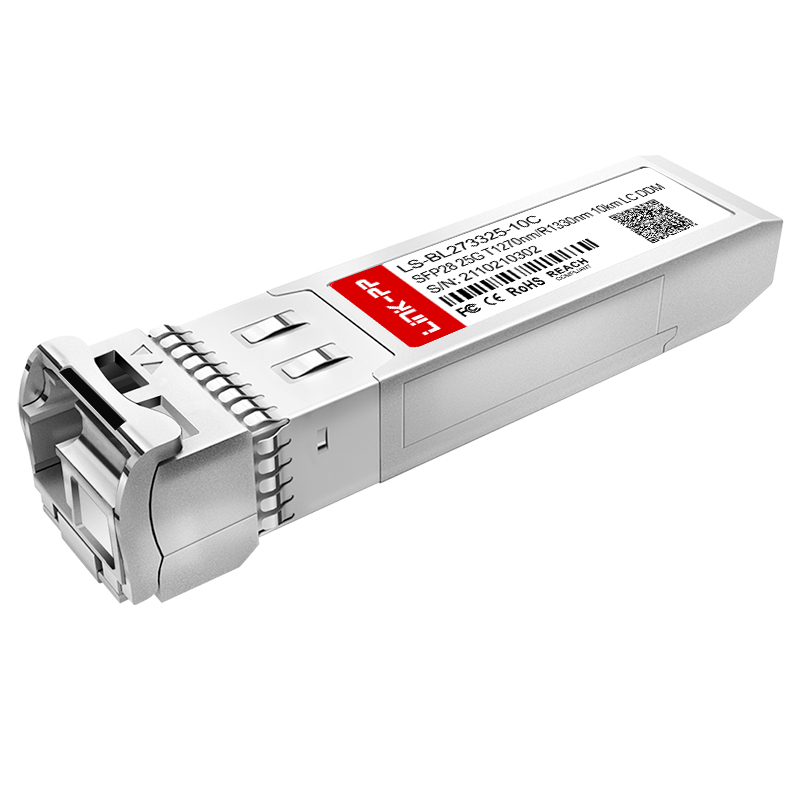

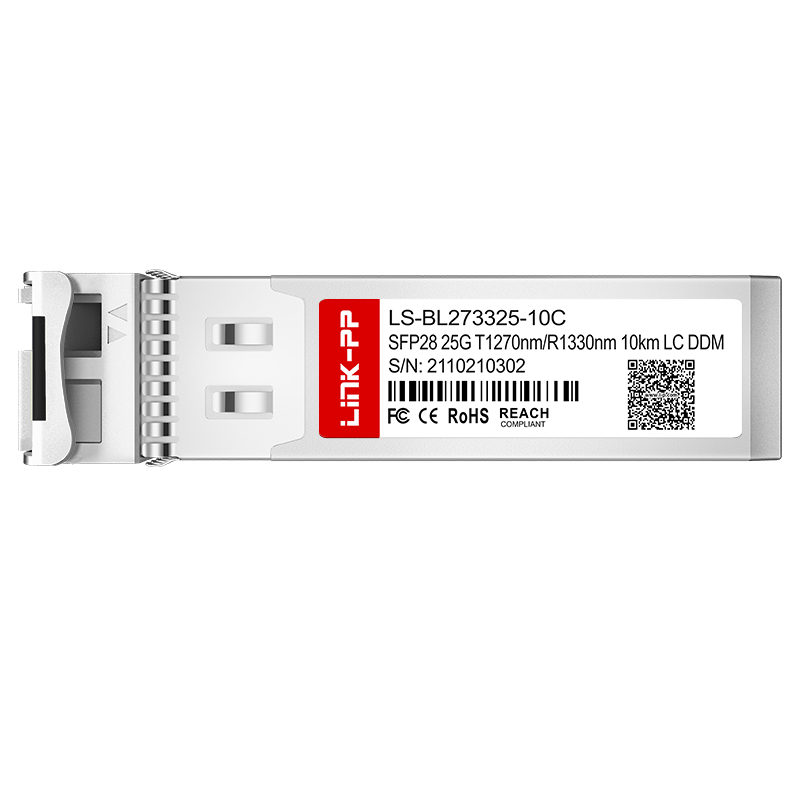

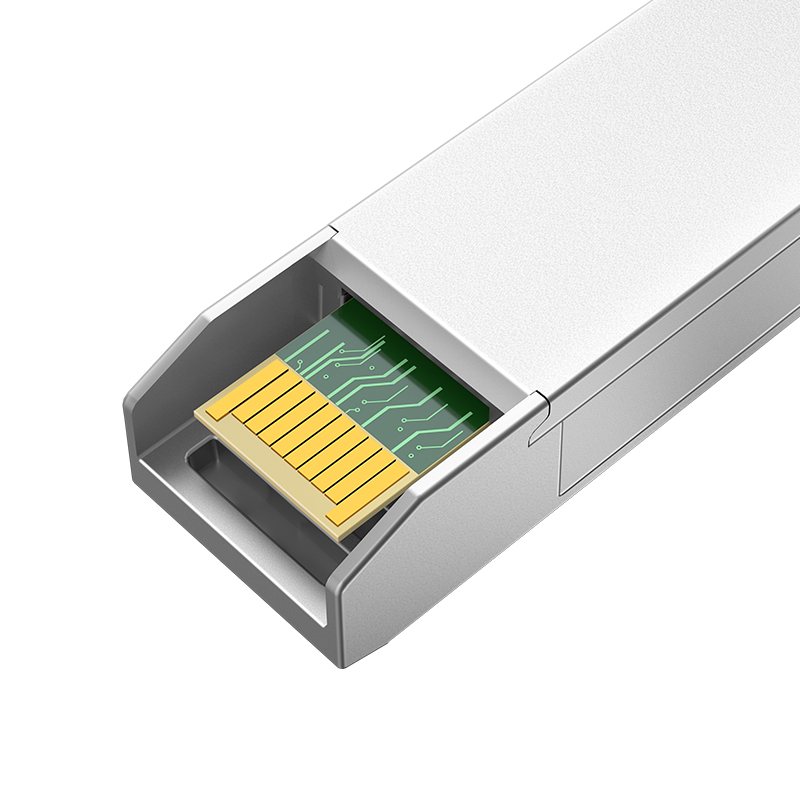

1270nm-TX/1330nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
| Item | 25G SFP28 Transceiver |
| Part No. | LS-BL273325-10C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1270nm-TX/1330nm-RX |
| Max Cable Distance | 10km |
| Media | SMF |
| Connector | Simplex LC |
| Optical Component | DFB/PIN |
| TX Power | -2~4dBm |
| Receiver Sensitivity | <-13dBm |
| Receiver Overload | 2dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | Supported |
| Temperature Range | 0°C to 70°C / -40°C to 85°C |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |

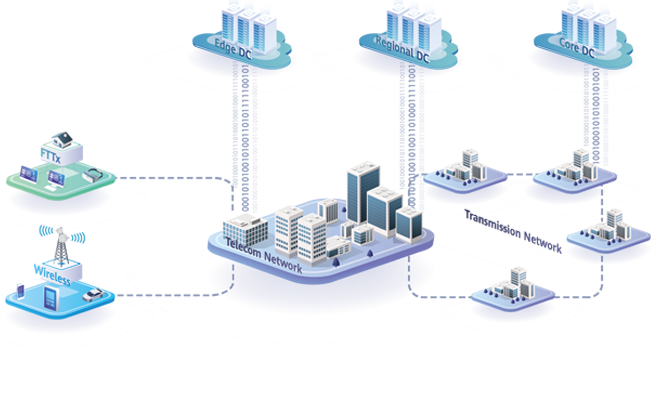

Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, high-speed optical modules ranging from 10G to 800G provide high-quality optical interconnection solutions.
High reliability and performance products with mature and efficient lasers and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products for global communication network constructers.
Optical cable O&M solutions integrating optical line protection systems (OLP) and optical line monitoring systems (OLM) ensure normal operation of communication lines.

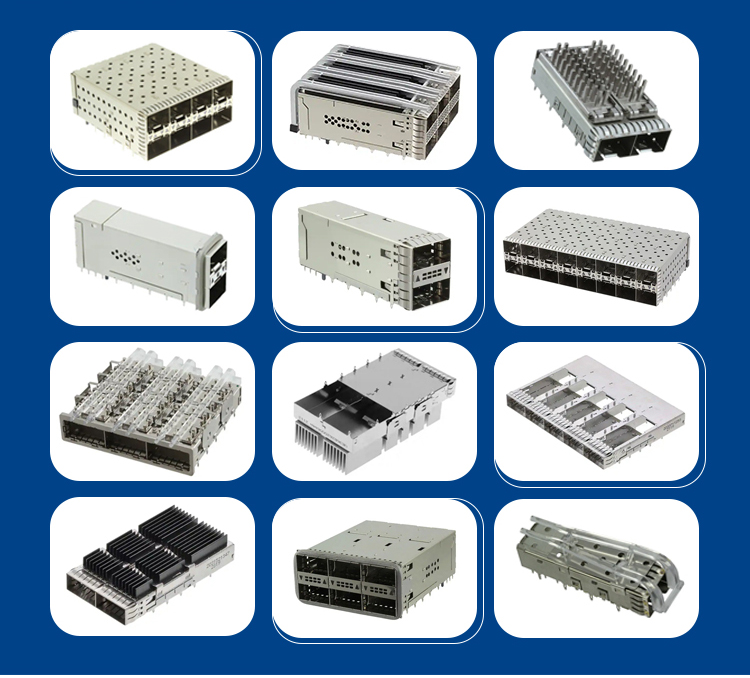

✧ Related Products SFP Cage ✧
