OptiLinker
OptiLinker

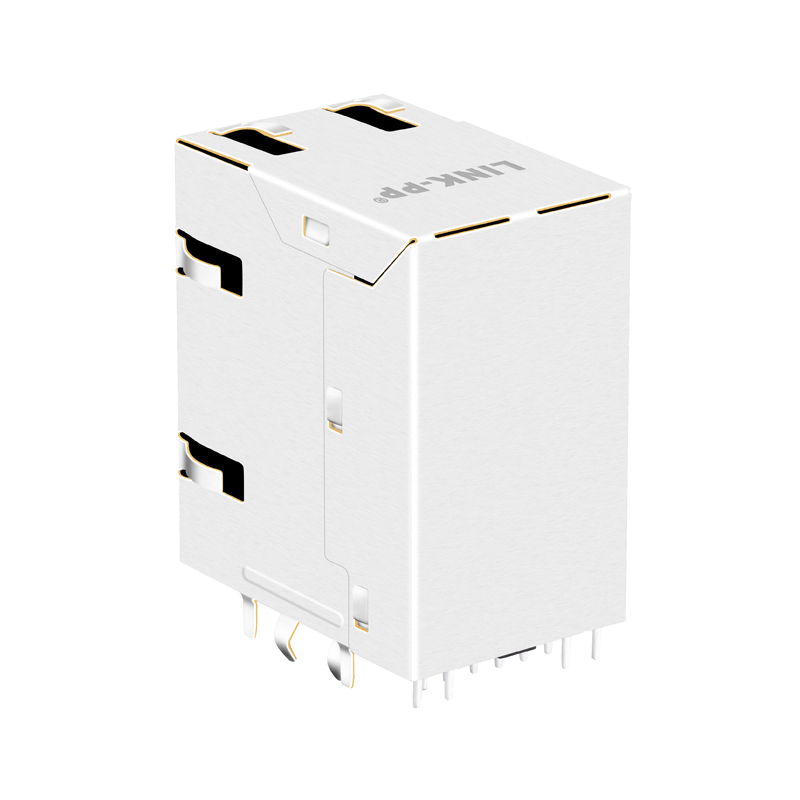

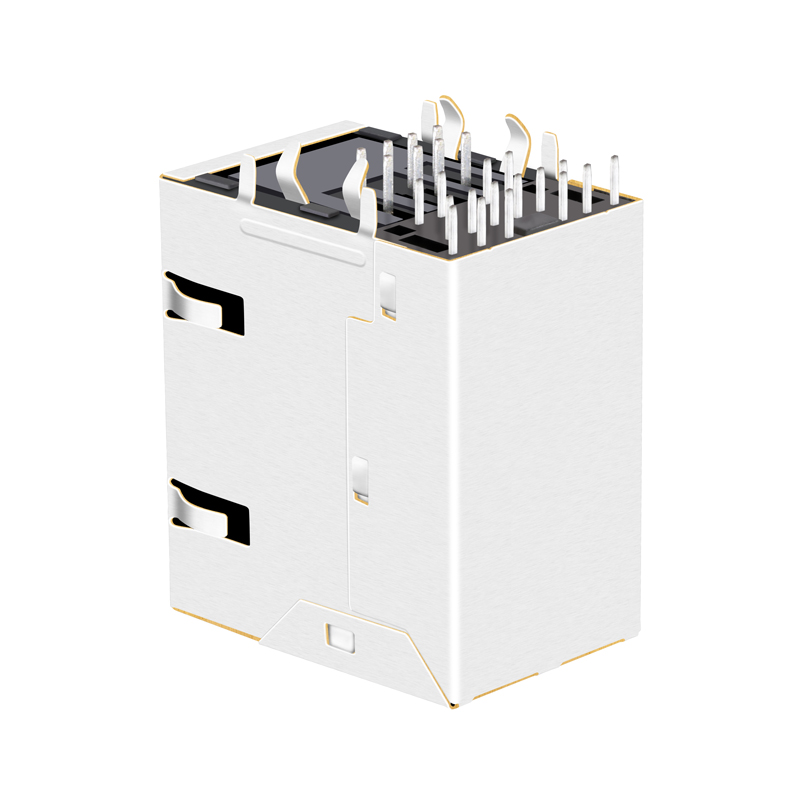

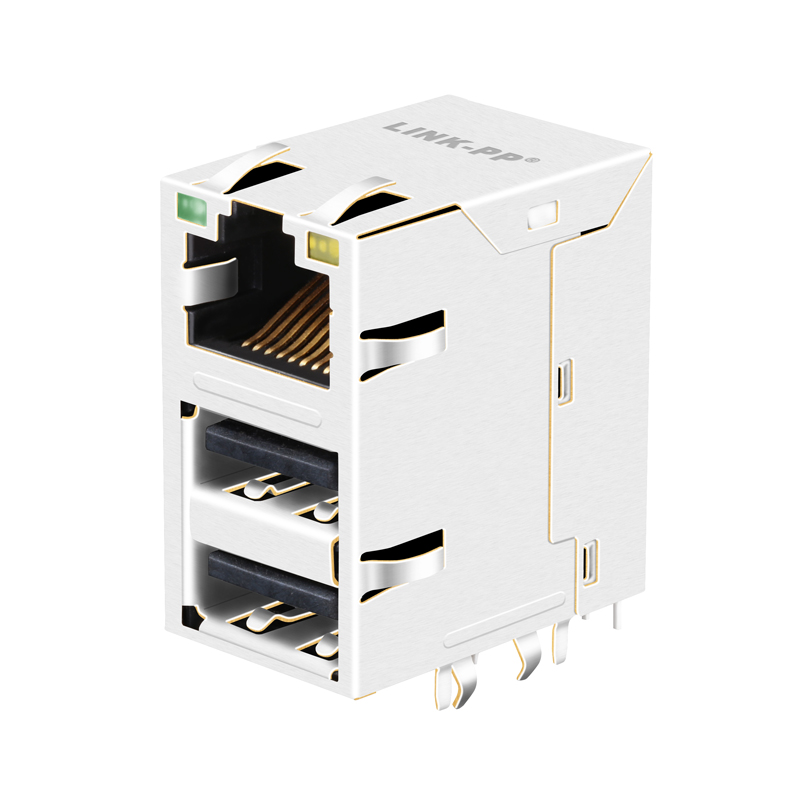

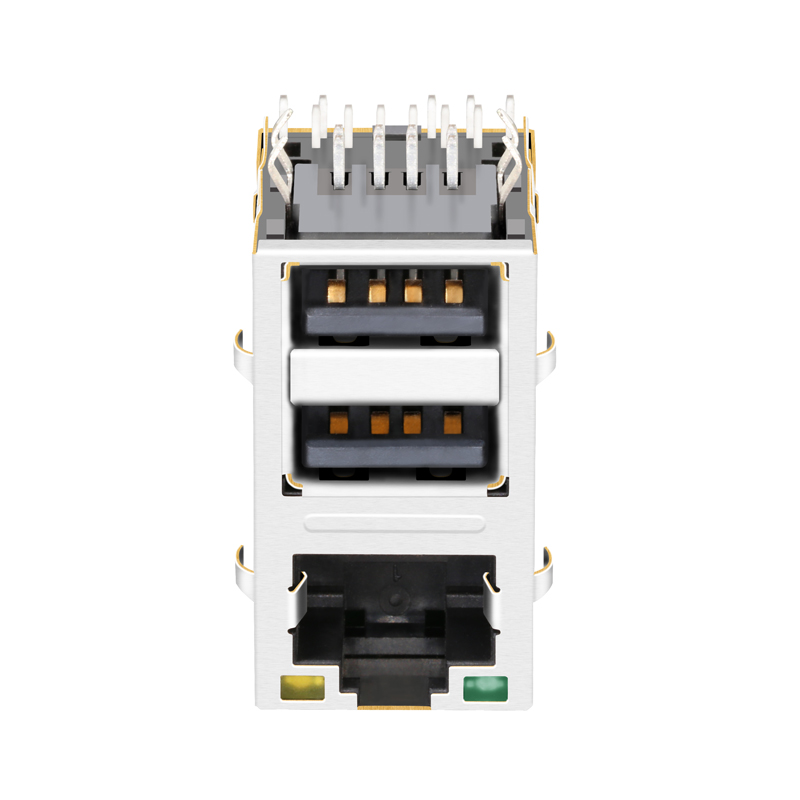

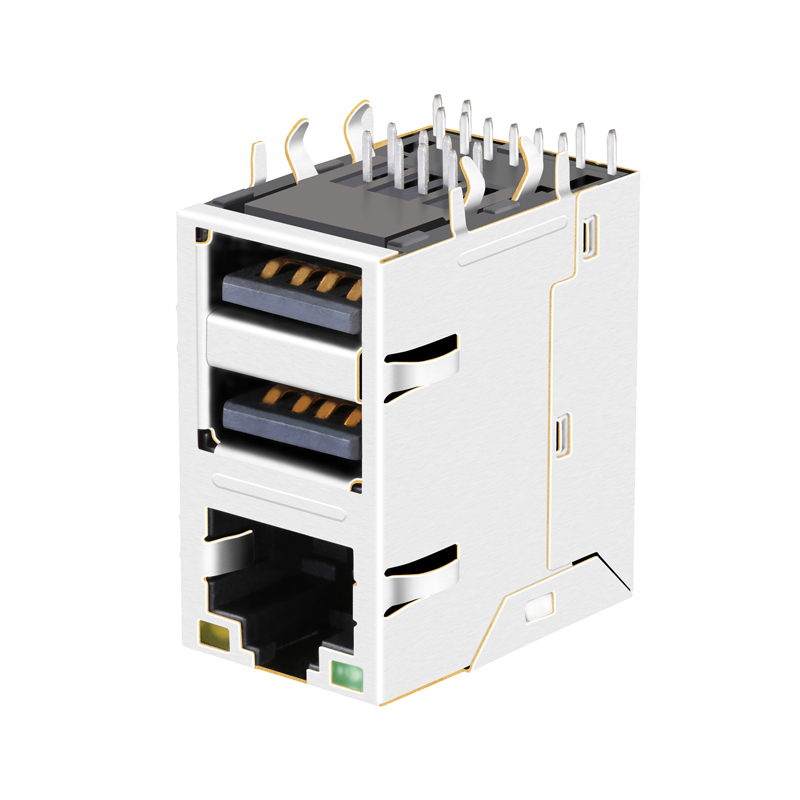

| Item | RJ45 Female Connector |
| Compatible With | xmm-9714-8813-s3lj-m-im |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non PoE) |
| Number of Ports | Single Port With USB |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C / -40°C TO 85°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer free samples to test product quality, though the shipping fee must be covered by the customer.
Items in stock are ready to ship immediately, while standard mass production orders typically take 15 to 30 days.
We provide a one-year guarantee period along with 24-hour online technical support to assist you with any inquiries.
Yes, we accept both OEM and ODM orders. Please send your requirements to us so we can proceed with a detailed discussion.
We bring over 19 years of professional production experience and have been a trusted partner to global technology leaders for many years.
