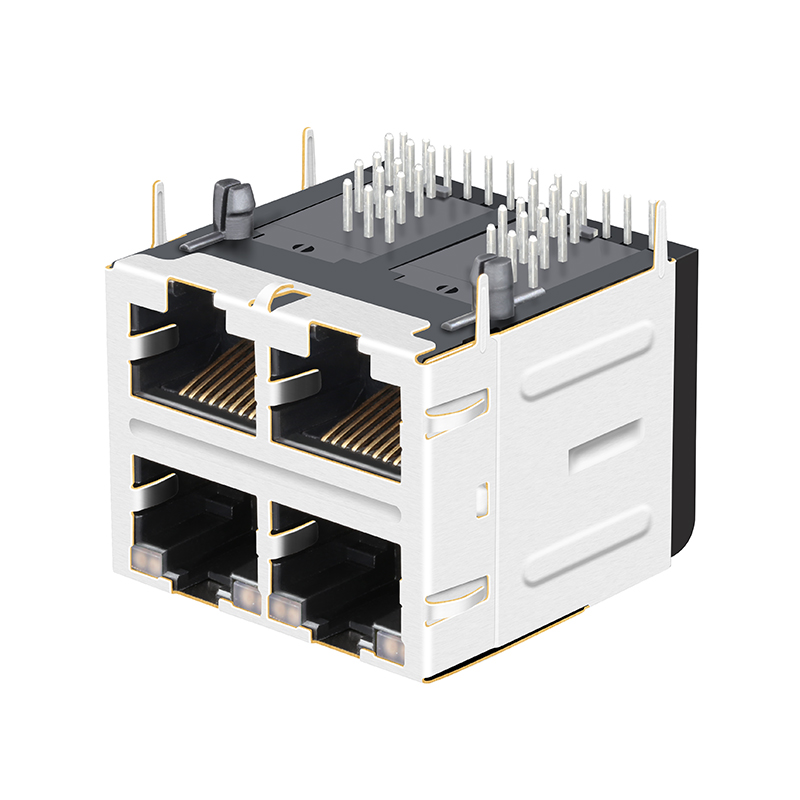

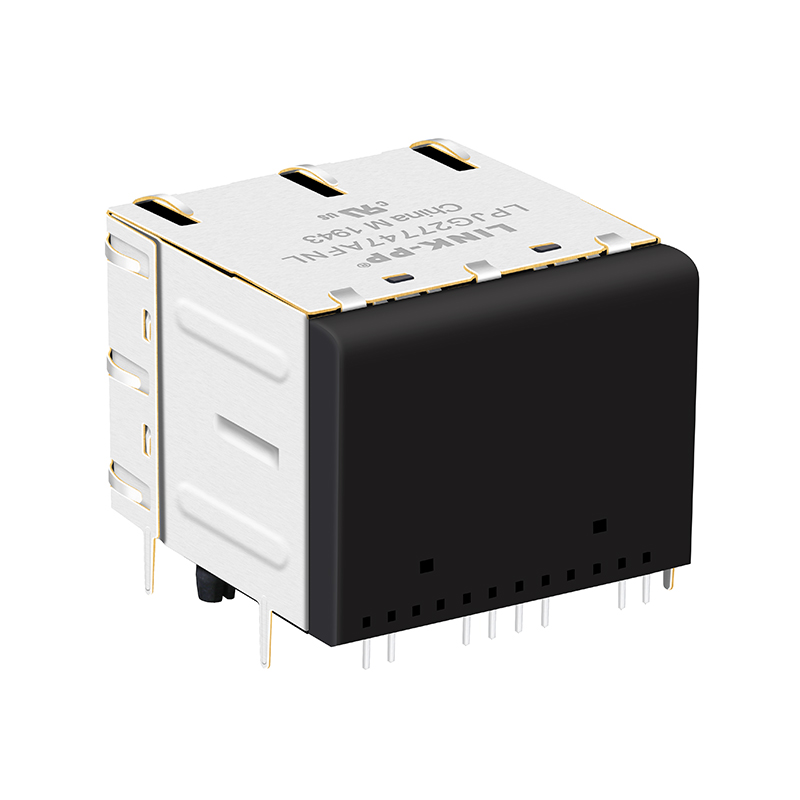

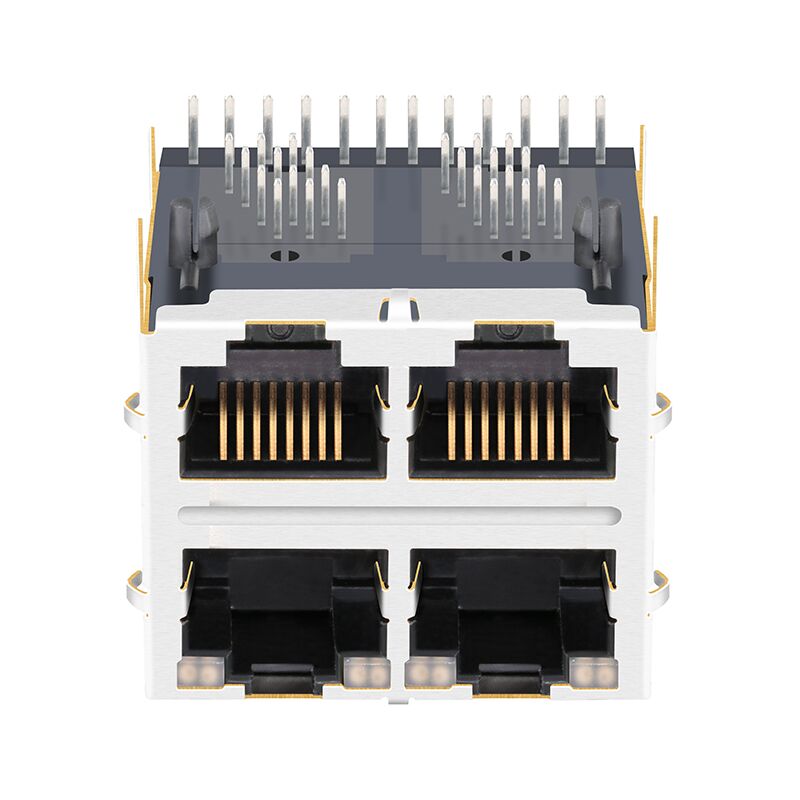

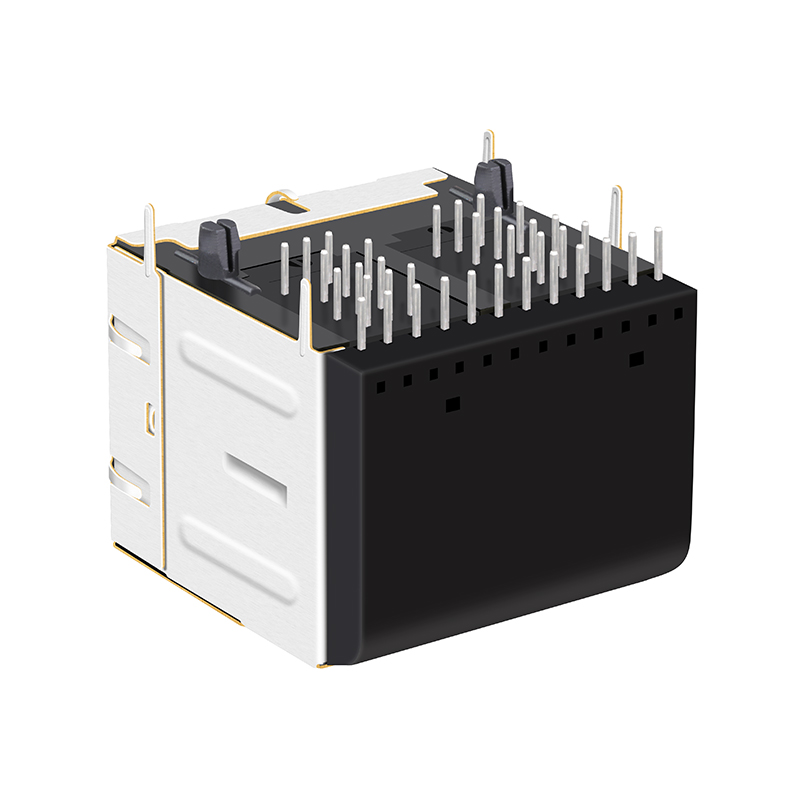

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
1 / 5
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

Send Inquiry

Product Description

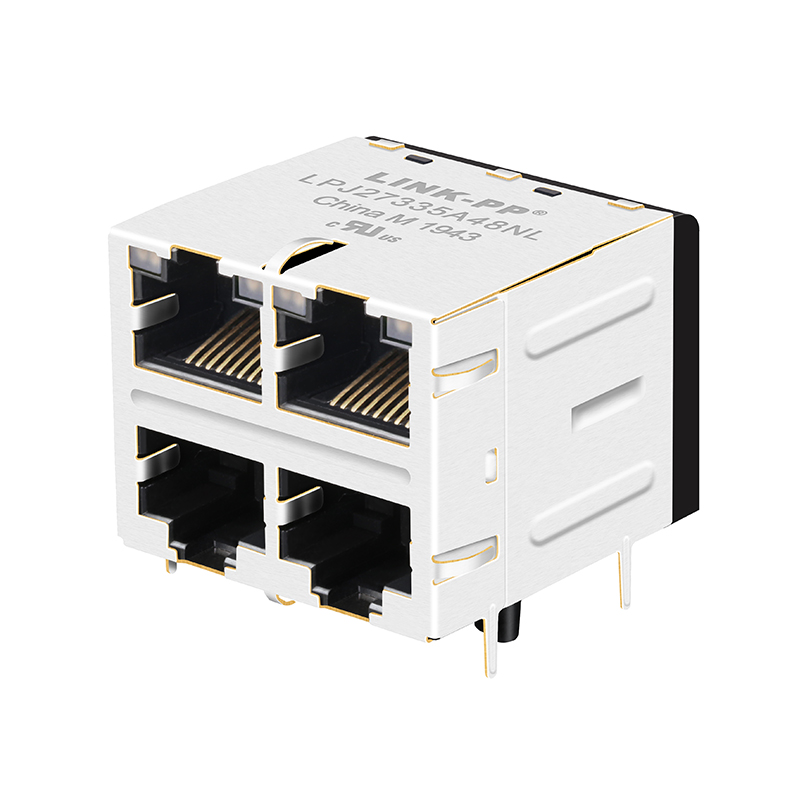

Product Image 1
Product Image 2
Specification
Specification Item Value
Part Number LPJ27335A48NL
Cross Part Number JX20-0252NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet (Non-PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green & Orange / Green & Orange Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 2x2 Port
Features Board Guide
Tab Direction Both
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Product Showcase 1
Product Showcase 2
Product Showcase 3
Product Showcase 4
Product Showcase 5
Product Showcase 6
About Our Technology
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. Our facilities own advanced manufacturing setups and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
Main Products
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Product Detail 1
Product Detail 2
Product Detail 3
Frequently Asked Questions
❖ Q1: Are you a manufacturer or trade company?
We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
❖ Q2: Can I get some samples?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
❖ Q3: Is OEM available?
Yes. We have rich experience and capability to put your design and idea into real products, including laser printing your brand on the products.
❖ Q4: How about the lead time?
We have a professional team ensuring high quality. Usually, we can ship orders within 30 days.
❖ Q5: What is the operating temperature range for this product?
The operating temperature range for this component is -40°C to 85°C, ensuring reliable performance in various environmental conditions.
❖ Q6: Does this connector support PoE (Power over Ethernet)?
No, this model is specifically engineered for standard Ethernet (Non-PoE) applications as specified in the configuration table.
