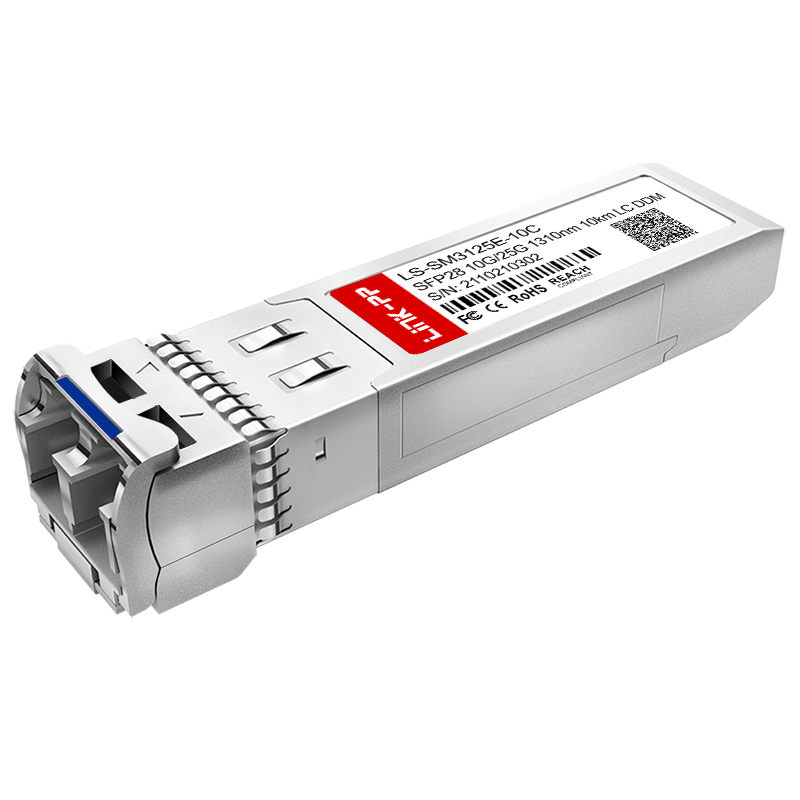

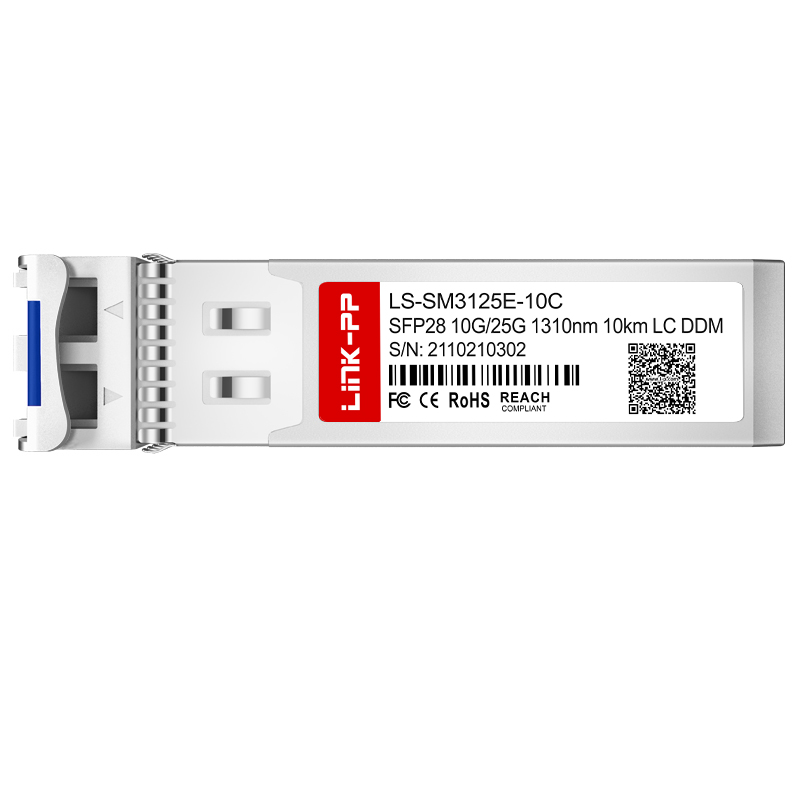

Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km
Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km
Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km
Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km
Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km
1 / 5
Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km
Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km
Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km
Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km
Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km

Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km

Send Inquiry

Product Description

Cisco SFP-10/25G-LR-S Compatible Single Mode Dual rate 10G/25G 1310nm SFP28 Optical Transceiver Module 10km
Products Description
Item25G SFP28 Transceiver
Part No.LS-SM3125E-10C
Part StatusActive
Form FactorSFP28
Max Data Rate10G/25Gbps
Wavelength1310nm
Max Cable Distance10km
MediaSMF (Single Mode Fiber)
ConnectorDuplex LC
Optical ComponentDFB/PIN
TX Power-7~2.5dBm
Receiver Sensitivity<-12dBm
Receiver Overload2.5dBm
Power Consumption≤1.5W
Extinction Ratio3dB
DDM/DOMSupported
Temperature Range0°C to 70°C / -40°C to 85°C
ProtocolsSFF-8472, SFF-8024, SFF-8431, SFF-8432, CEI-28G-VSR
Warranty5 Years
VIEW OUR SOLUTION
  • Expert Integration: We integrate fast speeds, small size, power savings, and high performance in every module based on over 10 years of experience.
  • Full Series Support: Providing optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Product View 1
Product View 2
Technical Specifications Performance Chart
Application Scenarios

Optical Transport Networks

Cloud and Enterprise

Wireless 4G/5G Systems

FTTx Access Solutions

Subsystems Protection

System Diagram
Related Infrastructure
SFP Cage Related
Quality & Manufacturing
Packaging and Logistics
Frequently Asked Questions
1. Does this module support both 10G and 25G data rates? Yes, this is a dual-rate optical transceiver that supports both 10Gbps and 25Gbps data rates, providing flexibility for network upgrades.
2. What is the maximum transmission distance of this SFP28 module? This module is designed for long-reach applications and can transmit data up to 10km over Single Mode Fiber (SMF).
3. Is this transceiver compatible with Cisco equipment? Yes, it is fully compatible with Cisco SFP-10/25G-LR-S specifications and can be used in compatible switches and routers.
4. Does the module support real-time monitoring? Absolutely. It supports DDM/DOM (Digital Diagnostic Monitoring), allowing users to monitor parameters like temperature, voltage, and optical power in real-time.
5. What type of connector does this module use? The module features a standard Duplex LC connector for reliable fiber optic connectivity.
6. Can I request samples for quality testing? Yes, samples are available for testing purposes to ensure the quality and compatibility meet your requirements before bulk orders.
