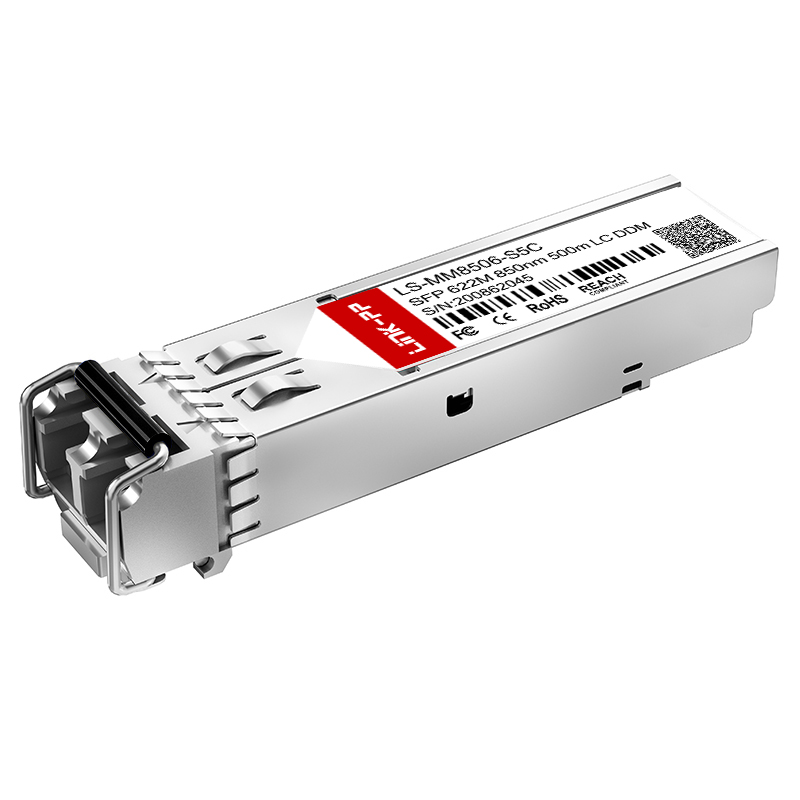

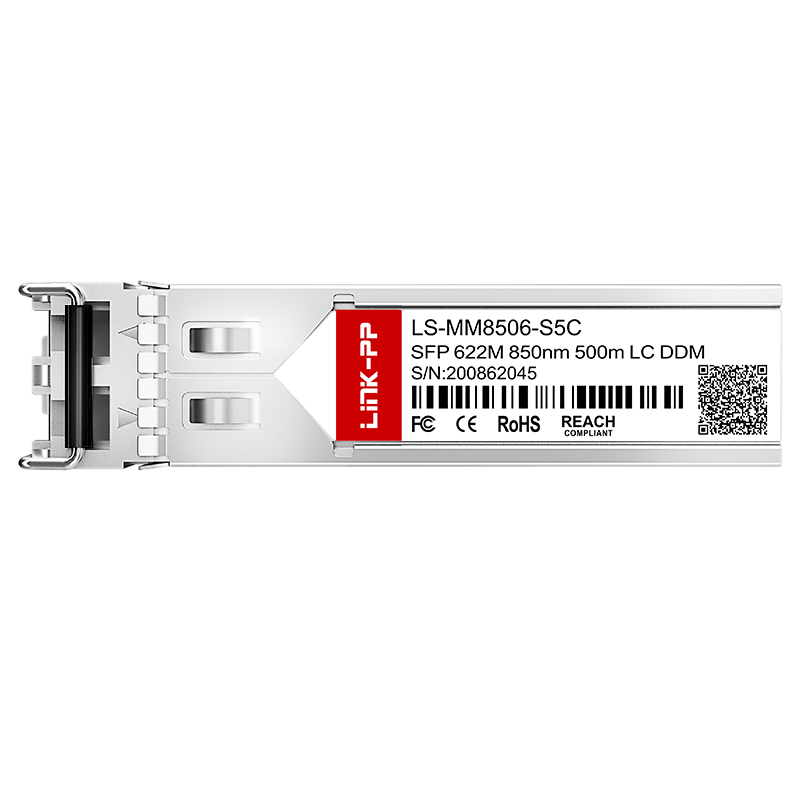

| Form Factor | SFP | Max Data Rate | 622Mbps |
| Wavelength | 850nm | Max Cable Distance | 500m |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| EMC Supported | Yes | DDM/DOM | Supported |
| Protocols | MSA Compliant | Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM8506-S5C | 622Mbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM3106-S5C | 622Mbps | 1310nm | 500m | Single Mode | Yes |
| LS-SM3106-02C | 622Mbps | 1310nm | 2km | Single Mode | Yes |
| LS-MM3106-02C | 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| LS-SM3106-20C | 622Mbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM3106-40C | 622Mbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM5506-80C | 622Mbps | 1550nm | 80km | Single Mode | Yes |
| LS-SM5506-A0C | 622Mbps | 1550nm | 100km | Single Mode | Yes |
| LS-SM5506-A2C | 622Mbps | 1550nm | 120km | Single Mode | Yes |
End-to-end DWDM devices including active modules to passive devices like EDFA, Mux/Demux, and ROADM.
High-speed optical modules ranging from 10G to 800G to meet mass data transmission demands.
Supporting 4G/5G systems with solutions for Dark Fiber, WDM, and high-speed Back-haul.
Total fiber access solutions covering all-optical or copper combined access products.
Optical line protection (OLP) and monitoring systems (OLM) for communication line security.
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROSH, REACH, CE and UL. Our facilities feature advanced manufacturing and testing equipment. Established in 1997, we maintain a production capacity of 3000K per month to ensure timely delivery worldwide.
