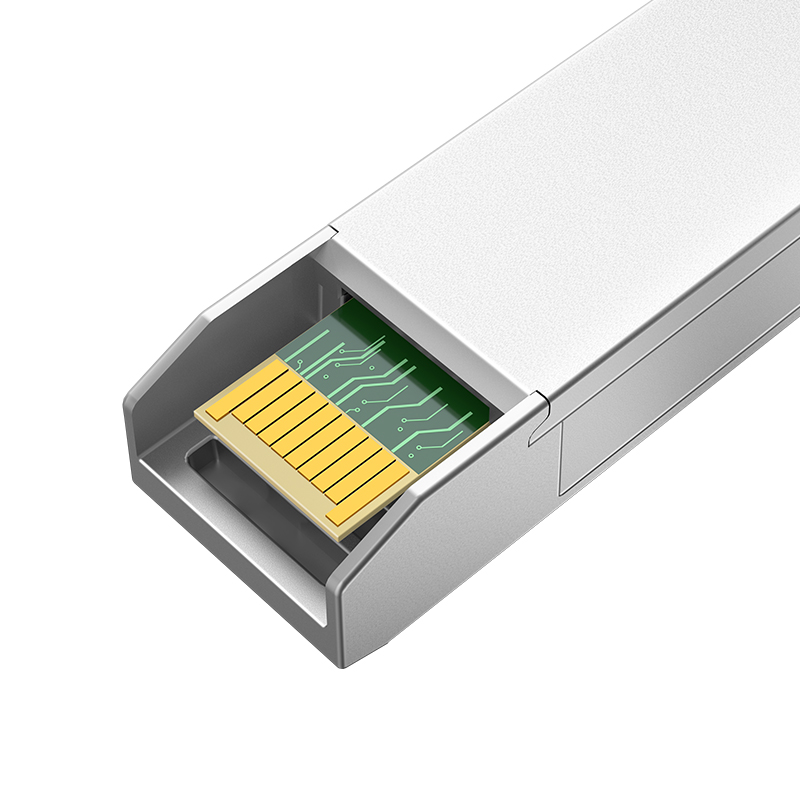

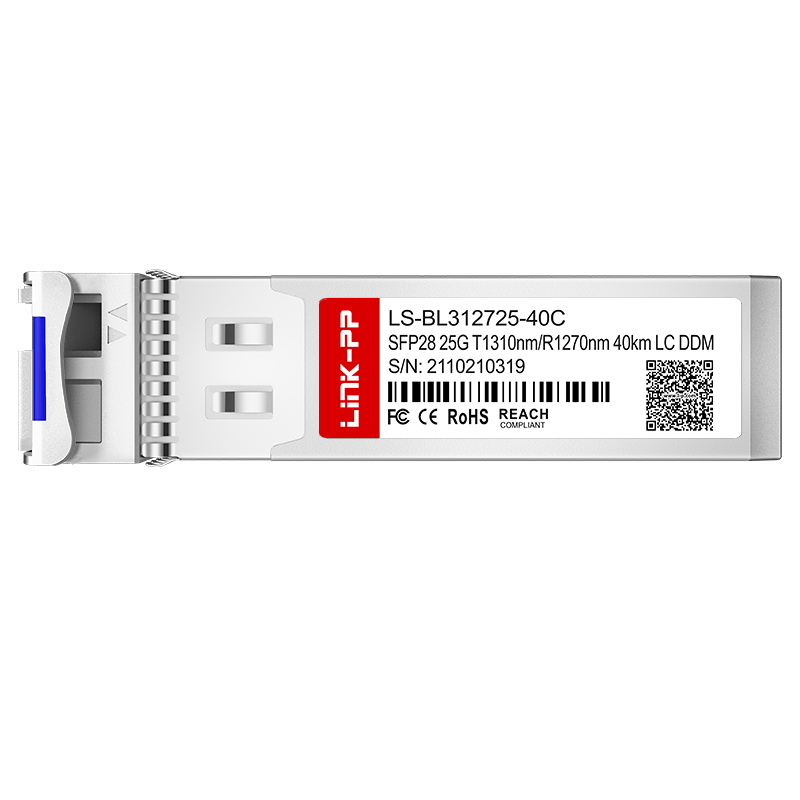

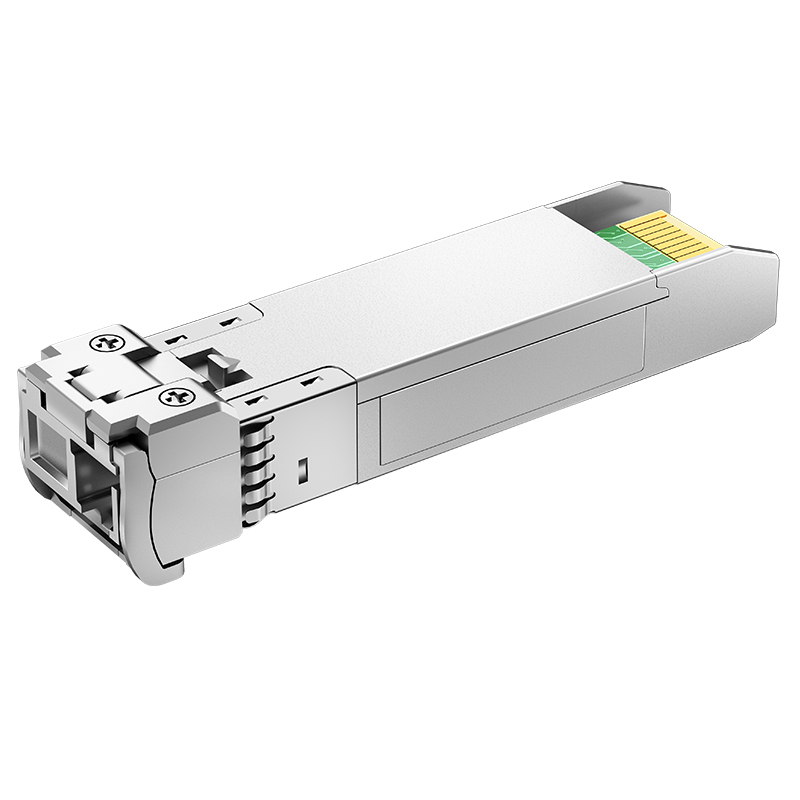

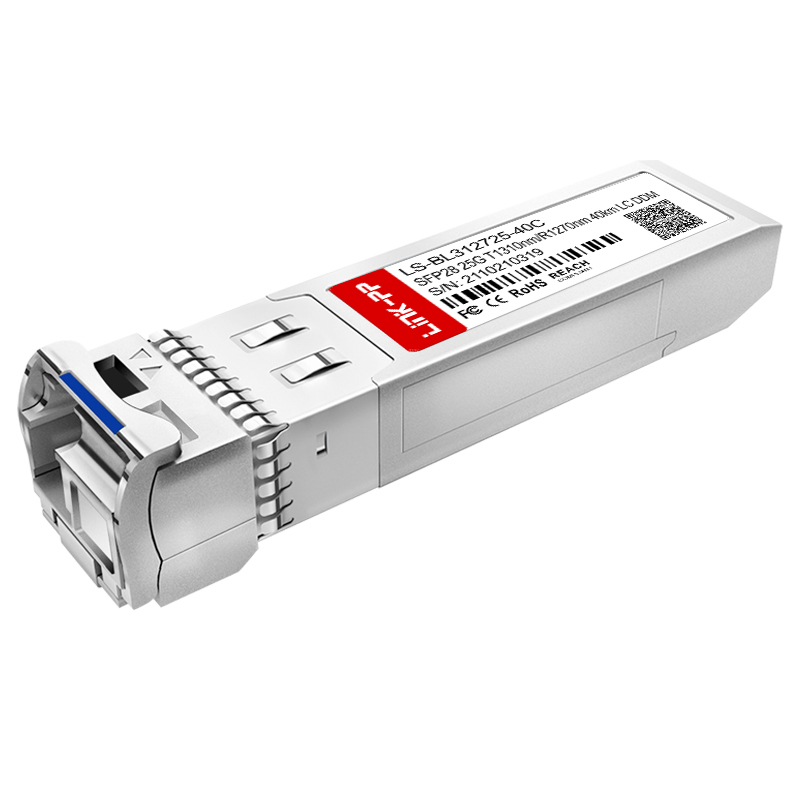

| Item | 25G SFP28 Transceiver |
| Part No. | LS-BL312725-40C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1310nm-TX/1270nm-RX |
| Max Cable Distance | 40km |
| Media | SMF |
| Connector | Simplex LC |
| Optical Component | DFB/APD |
| TX Power | 0~6dBm |
| Receiver Sensitivity | <-18dBm |
| Receiver Overload | 2dBm |
| Power Consumption | 1.2W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0℃ to 70°C / -40℃ to 85℃ |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We provide end-to-end DWDM devices with almost all optical components - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. With an abundant productive capacity of 3000K per month, we ensure timely delivery and high-performance optical interconnection solutions for cloud computing and ultra-broadband networks.
