Product Description

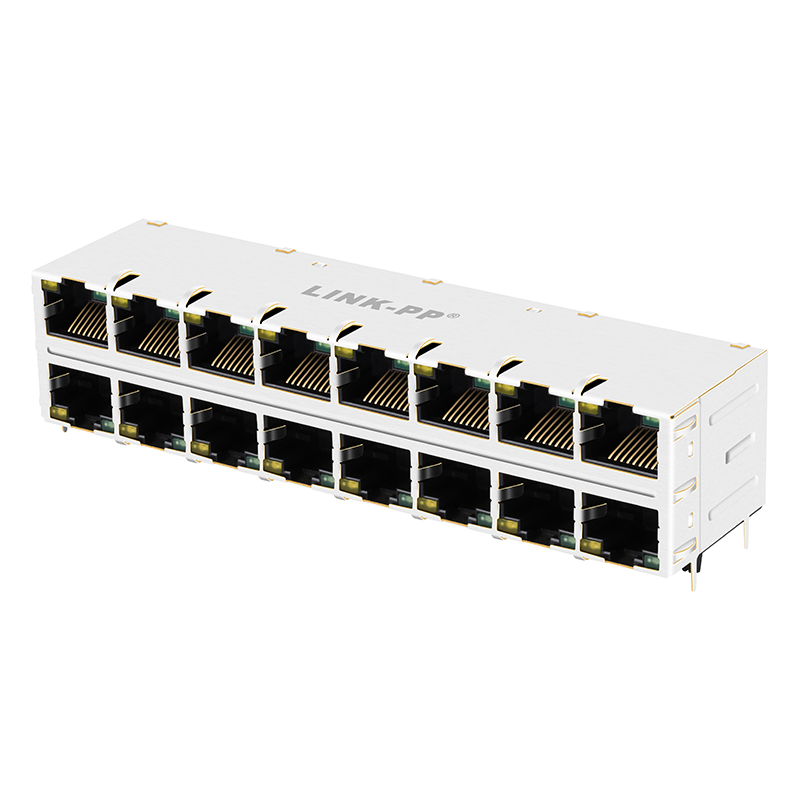

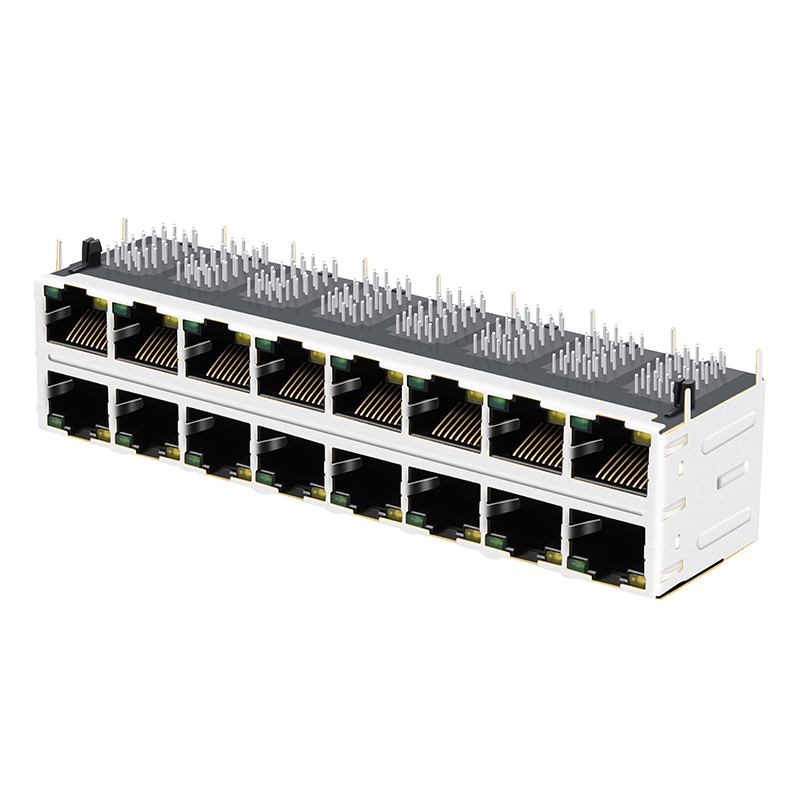

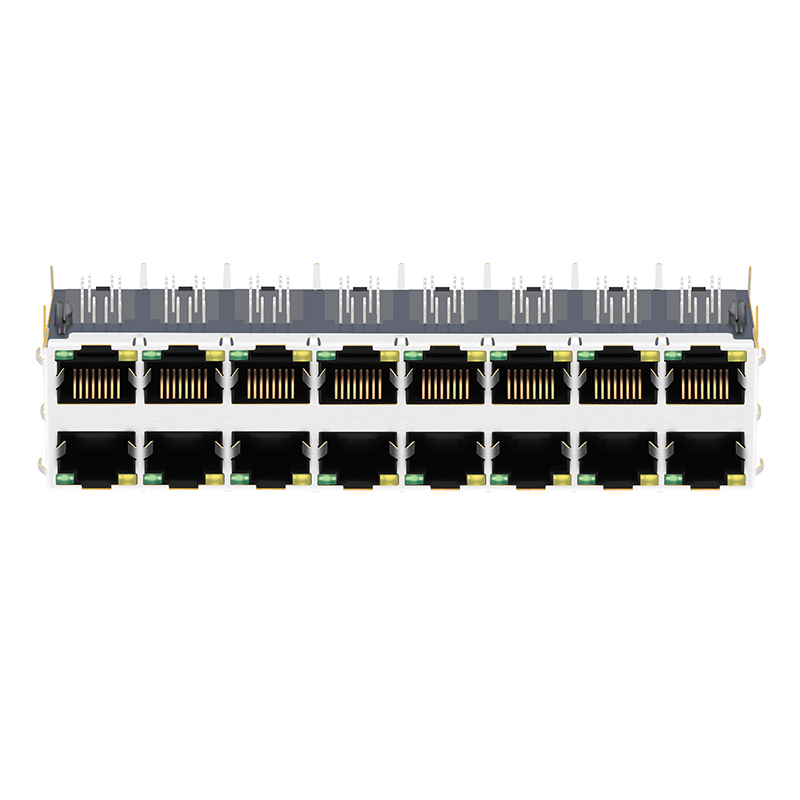

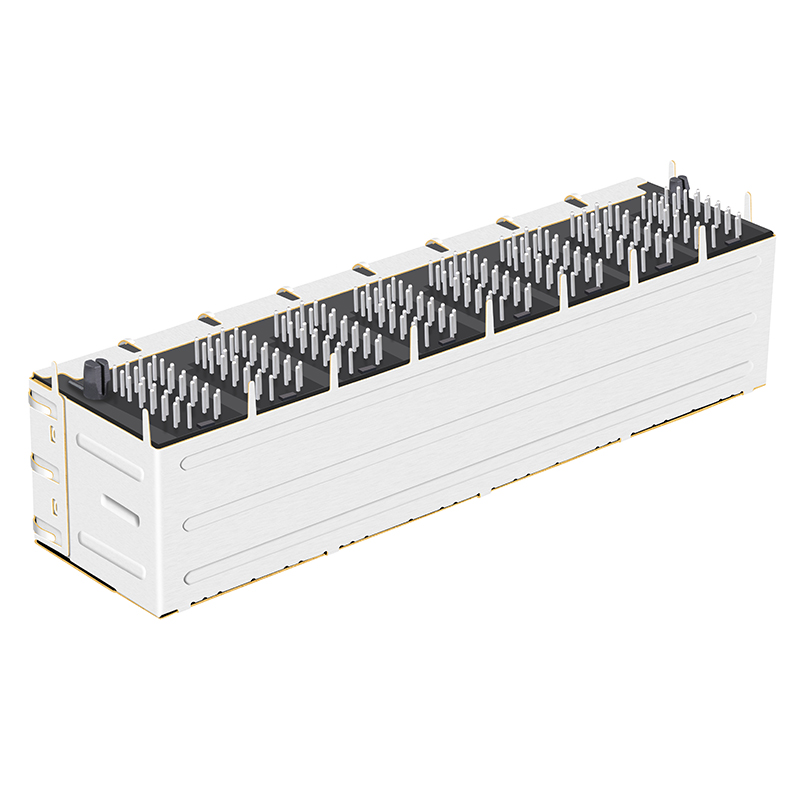

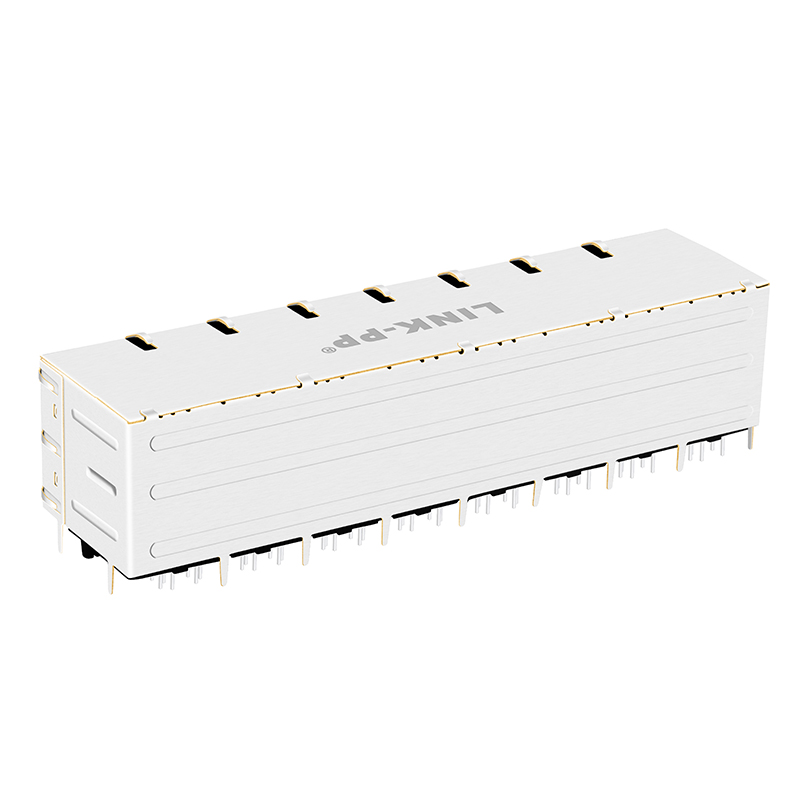

2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69

Part Number	RJ45 connector
Application-LAN	ETHERNET(NON POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	WITH LEDS
Latch	Up/Down
Number of Ports	2x8
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	Shield, EMI Finger
Speed	10/100/1000 Base-T
Temperature	-40°C ~ 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

16port RJ45 Connector Dimensional Diagram

Why Choose Us

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Quality Guarantee

Manufactured Under Strict Controls.
100% Tested (Not Just Batch Tested)
Successful Customer Collaborations: Texas Instruments, Samsung, Cisco, Siemens, Intel...
Quality Guarantee: 6 Years

Competitive Price & Service

More Competitive Price Than Pulse, Tyco, Halo, Wurth, and Amphenol
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
90% Off Shipping Cost By DHL, UPS, FEDEX, Or TNT

RJ45 Jack Mechanical Dimension Specifications

Frequently Asked Questions

What is a 2x8 port RJ45 jack configuration?

A 2x8 port RJ45 jack is a stacked connector layout containing 16 ports in total (2 rows of 8 ports each). This high-density design helps save valuable PCB space in networking devices like hubs, switches, and routers.

What are the benefits of using a shielded RJ45 connector?

Shielded RJ45 connectors feature a metal casing (shield) that provides superior protection against electromagnetic interference (EMI) and radio frequency interference (RFI). This ensures stable data transmission and prevents signal degradation in noisy environments.

What speed standards are supported by this 16-port RJ45 jack?

This connector supports standard Ethernet speeds of 10/100/1000 Base-T, making it compatible with Fast Ethernet and Gigabit Ethernet networks for reliable high-speed data transfer.

Does this RJ45 connector support Power over Ethernet (PoE)?

No, this specific RJ45 connector is designed for standard Ethernet applications and does not support PoE (Non-PoE).

What is the operating temperature range for the J2042H3B / J2045H3C / J2039H3C series?

These connectors are designed to operate reliably within an industrial temperature range of -40°C to +85°C, making them suitable for harsh environmental conditions.

Are these RJ45 jacks RoHS compliant?

Yes, these connectors are RoHS compliant (RoHS-5 with lead-in-solder exemption), meeting environmental safety standards for hazardous substances.
