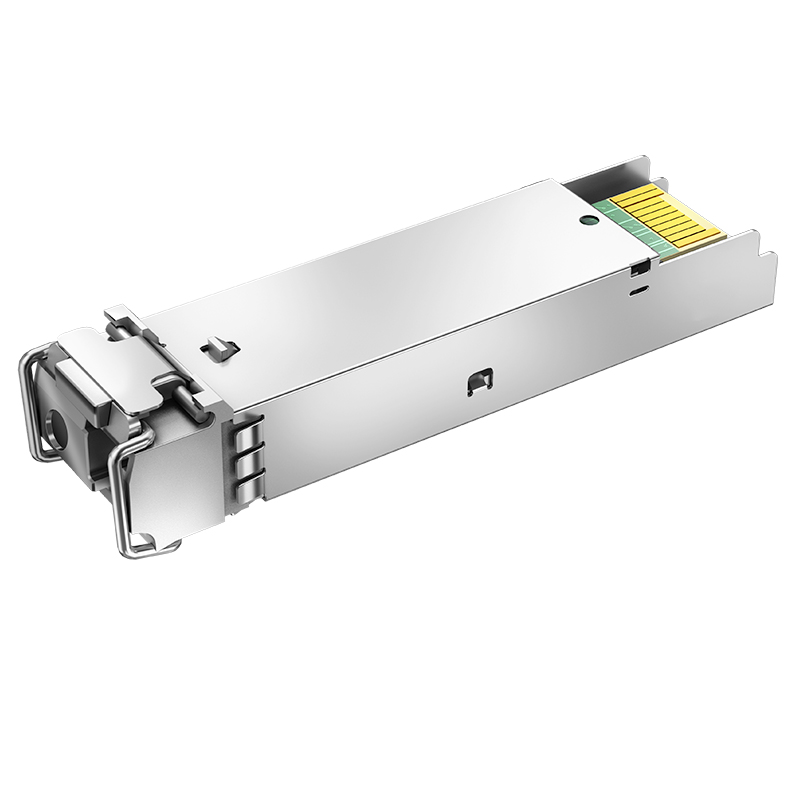

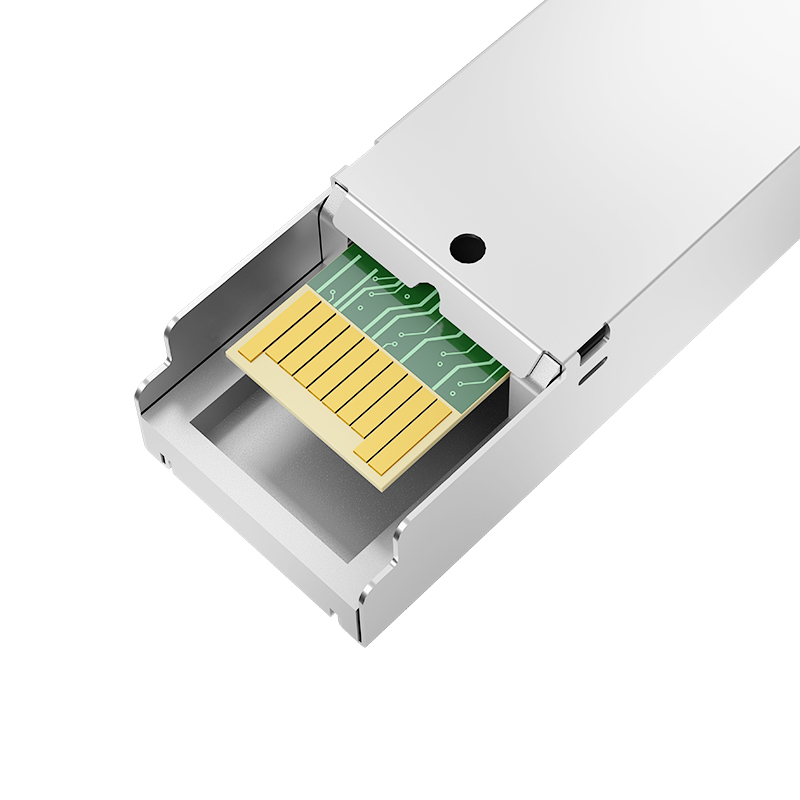

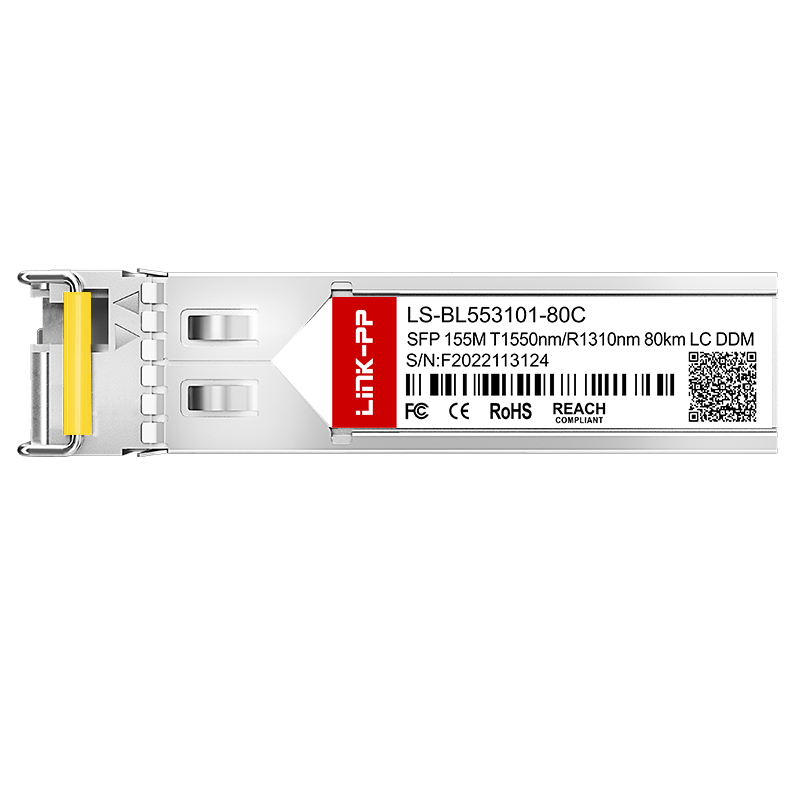

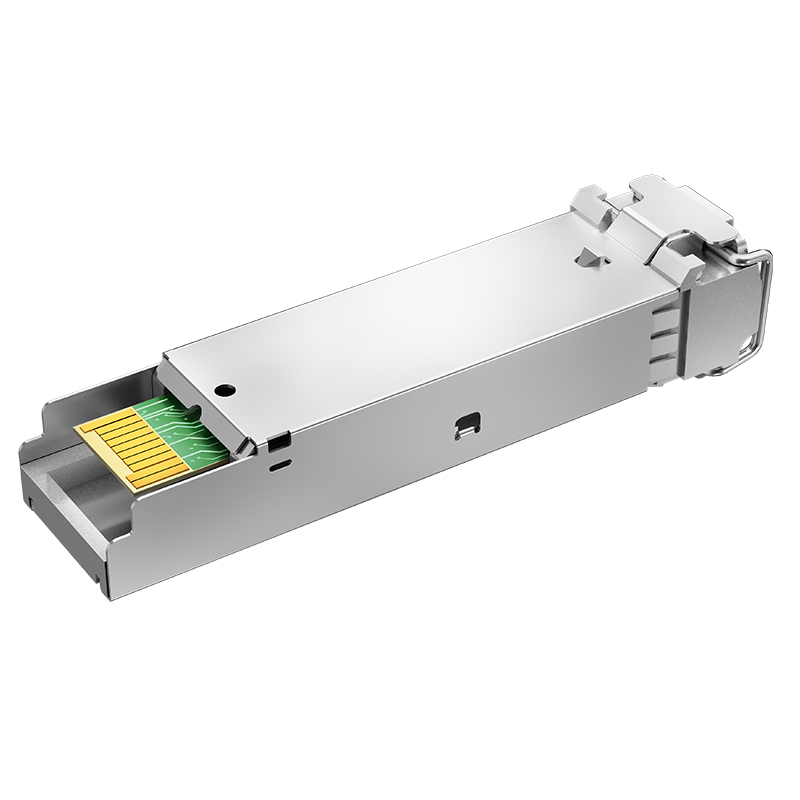

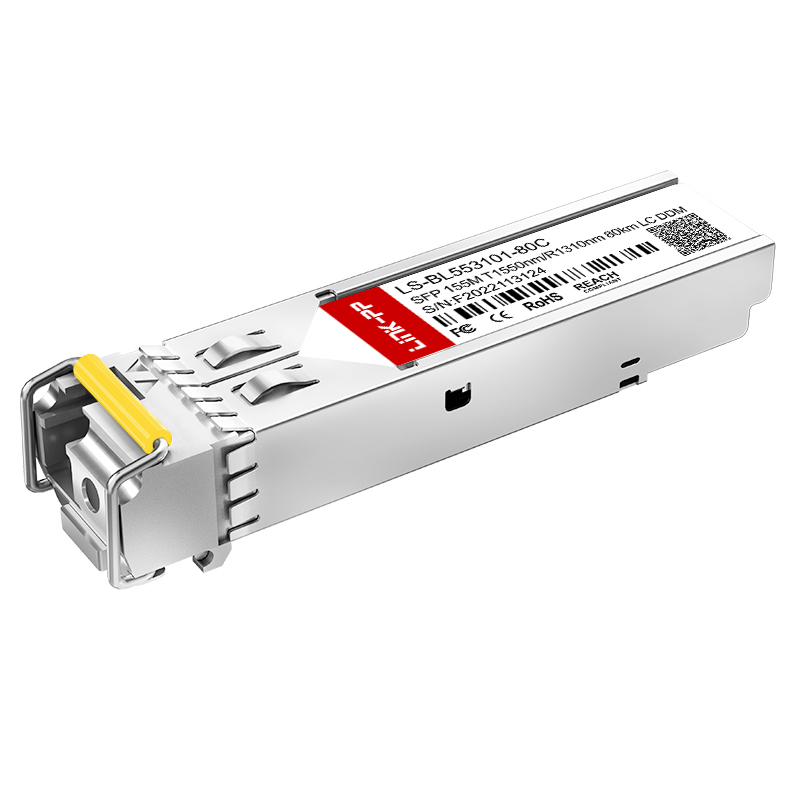

1550nm-TX/1310nm-RX Bidirectional SFP 155M Bidi 80km SMF LC Optic Transceiver Module

Form Factor	SFP
Max Data Rate	155Mbps
Wavelength	1550nm-TX/1310nm-RX
Max Cable Distance	80km
Connector	Simplex LC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-5 ~ 2dBm
Receiver Sensitivity	< -32dBm
DDM/DOM	Supported
Protocols	SFP MSA and SFF-8472
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years

Our Advanced Optical Solutions

Integrating fast speeds, small size, and power savings, our modules are engineered for high performance. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, and data communication networks.

155M BiDi SFP Series Product Range

Part Number	Data Rate	Wavelength	Distance	Components	DDM
LS-BL315501-10C	155Mbps	1310nm-TX/1550nm-RX	10km	FP/PIN	Yes
LS-BL553101-10C	155Mbps	1550nm-TX/1310nm-RX	10km	FP/PIN	Yes
LS-BL315501-15C	155Mbps	1310nm-TX/1550nm-RX	15km	FP/PIN	Yes
LS-BL553101-15C	155Mbps	1550nm-TX/1310nm-RX	15km	FP/PIN	Yes
LS-BL315501-20C	155Mbps	1310nm-TX/1550nm-RX	20km	FP/PIN	Yes
LS-BL553101-20C	155Mbps	1550nm-TX/1310nm-RX	20km	FP/PIN	Yes
LS-BL315501-40C	155Mbps	1310nm-TX/1550nm-RX	40km	FP/PIN	Yes
LS-BL553101-40C	155Mbps	1550nm-TX/1310nm-RX	40km	FP/PIN	Yes
LS-BL315501-80C	155Mbps	1310nm-TX/1550nm-RX	80km	FP/PIN	Yes
LS-BL553101-80C	155Mbps	1550nm-TX/1310nm-RX	80km	FP/PIN	Yes

Industry Applications

Optical Transport Networks
End-to-end DWDM solutions from active modules to passive devices including amplifiers (EDFA & RFA) and Mux/Demux.

Cloud and Enterprise
High-speed optical interconnect solutions ranging from 10G to 800G for mass data transmission in data centers.

Wireless Infrastructure
Solutions for 4G/5G systems including Dark Fiber, WDM, Radio over Fiber, and Back-haul applications.

FTTx Solutions
Total fiber access solutions covering all-optical or combined copper-optical access products.

Manufacturing Excellence

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001, RoHS, REACH, CE, and UL. Our facility utilizes advanced manufacturing and testing equipment to ensure the highest reliability.

Frequently Asked Questions

1. Are you a factory or a trading company? We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.

2. Can I get a sample before mass production? Yes, we can offer samples to test the quality. Please note that shipping fees may apply.

3. What is the standard delivery time? Items in stock are ready to ship immediately. For mass production, the typical lead time is 15-30 days.

4. What kind of after-sales service is provided? We provide a one-year guarantee period along with 24-hour online technical support.

5. Do you accept OEM/ODM orders? Yes, we specialize in OEM/ODM orders. Please contact our team for detailed discussions regarding your specific requirements.

6. What are your primary advantages? With over 19 years of production experience, we have established long-term partnerships with industry leaders and maintain high-capacity production with strict quality control.
