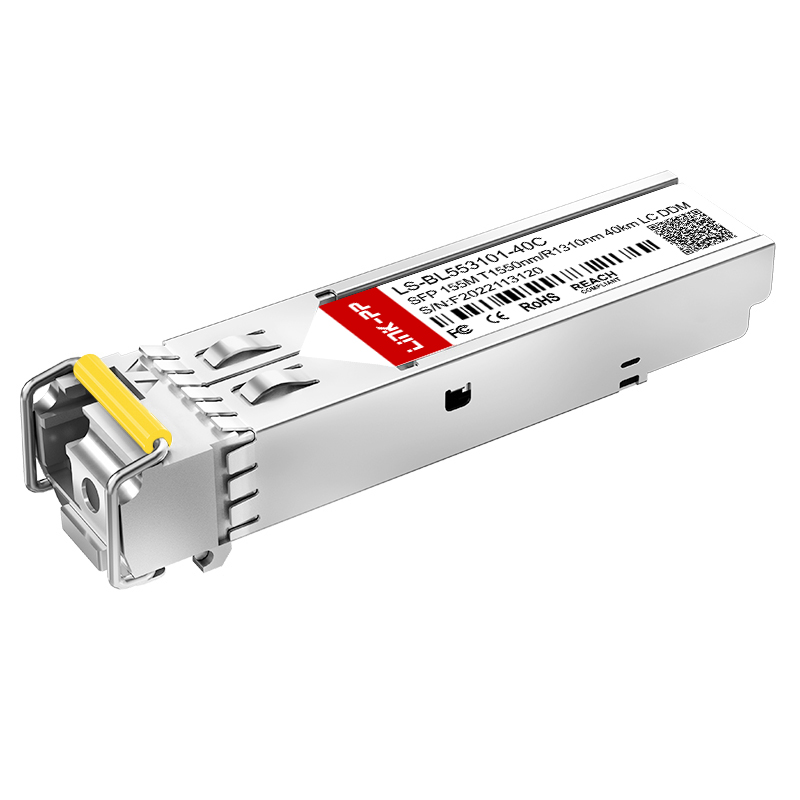

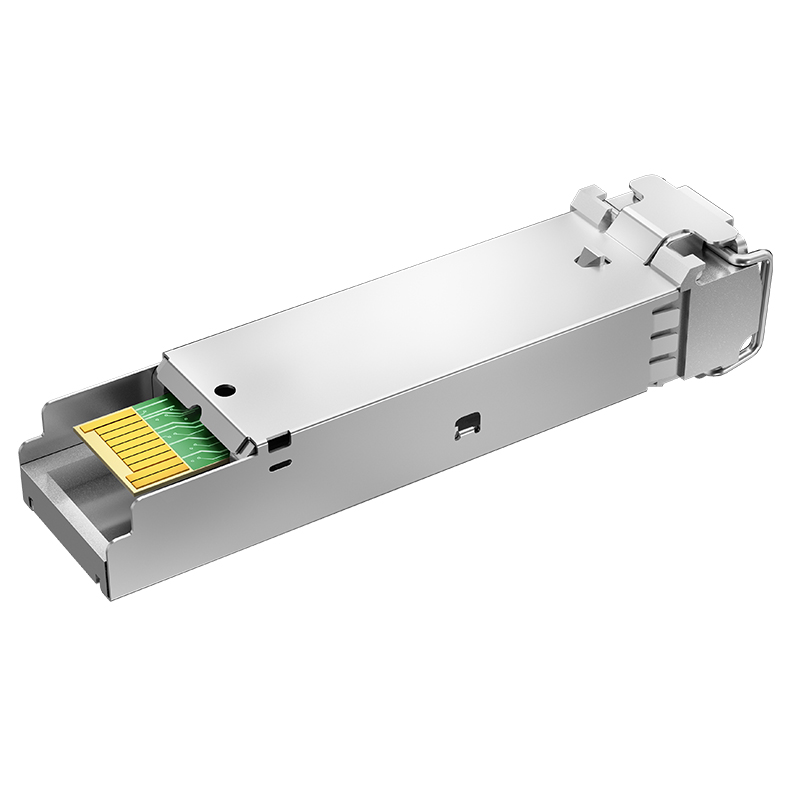

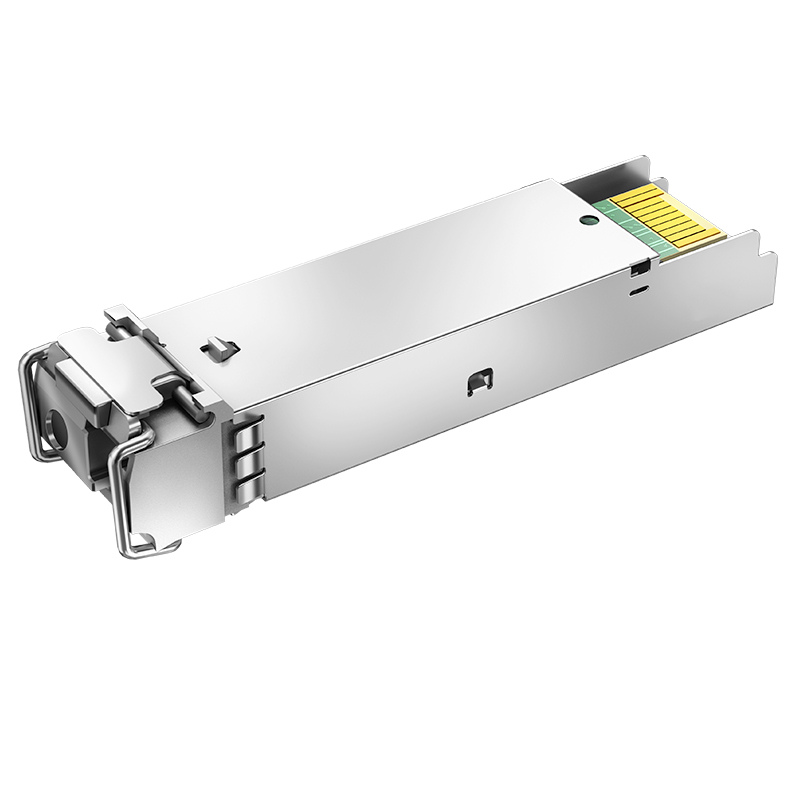

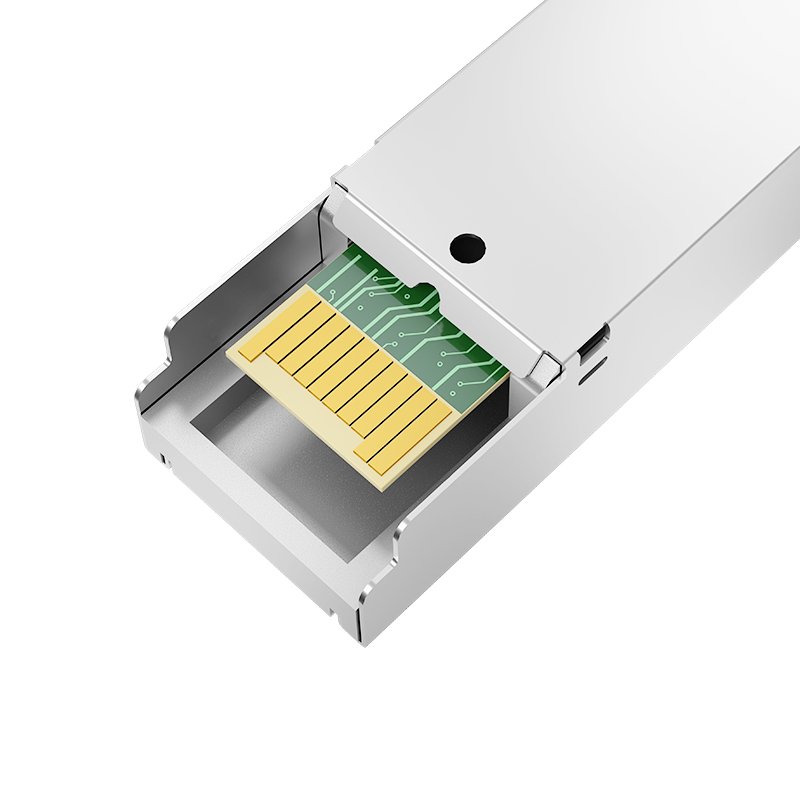

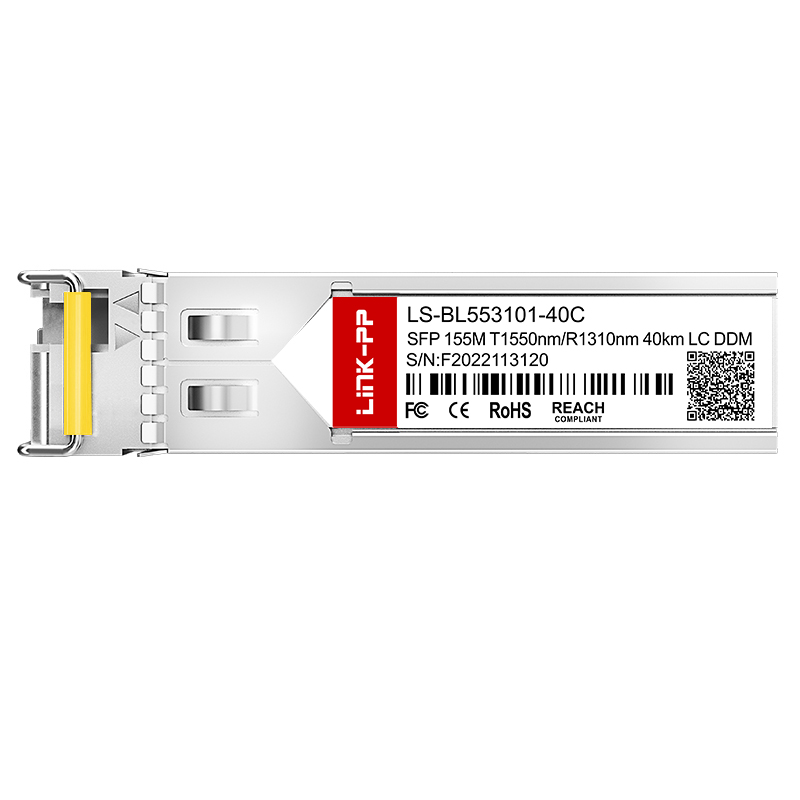

1550nm-TX/1310nm-RX Bidirectional SFP 155M Bidi 40km Simplex LC Optic Transceiver Module
| Product Specifications |
| Part No. |
LS-BL553101-40C |
| Form Factor |
SFP |
| Max Data Rate |
155Mbps |
| Wavelength |
1550nm-TX/1310nm-RX |
| Max Cable Distance |
40km |
| Connector |
Simplex LC |
| Media |
SMF |
| Transmitter Type |
FP |
| Receiver Type |
PIN |
| TX Power |
-8 ~ -1dBm |
| Receiver Sensitivity |
< -32dBm |
| EMC (Electro Magnetic Compatibility) |
Supported |
| DDM/DOM |
Supported |
| Protocols |
SFP MSA and SFF-8472 |
| Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
| Sample |
Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number |
Data Rate |
Wavelength |
Distance |
Components |
DDM |
| LS-BL315501-10C |
155Mbps |
1310nm-TX/1550nm-RX |
10km |
FP/PIN |
Yes |
| LS-BL553101-10C |
155Mbps |
1550nm-TX/1310nm-RX |
10km |
FP/PIN |
Yes |
| LS-BL315501-15C |
155Mbps |
1310nm-TX/1550nm-RX |
15km |
FP/PIN |
Yes |
| LS-BL553101-15C |
155Mbps |
1550nm-TX/1310nm-RX |
15km |
FP/PIN |
Yes |
| LS-BL315501-20C |
155Mbps |
1310nm-TX/1550nm-RX |
20km |
FP/PIN |
Yes |
| LS-BL553101-20C |
155Mbps |
1550nm-TX/1310nm-RX |
20km |
FP/PIN |
Yes |
| LS-BL315501-40C |
155Mbps |
1310nm-TX/1550nm-RX |
40km |
FP/PIN |
Yes |
| LS-BL553101-40C |
155Mbps |
1550nm-TX/1310nm-RX |
40km |
FP/PIN |
Yes |
| LS-BL315501-80C |
155Mbps |
1310nm-TX/1550nm-RX |
80km |
FP/PIN |
Yes |
| LS-BL553101-80C |
155Mbps |
1550nm-TX/1310nm-RX |
80km |
FP/PIN |
Yes |
| LS-BL495501-80C |
155Mbps |
1490nm-TX/1550nm-RX |
80km |
DFB/PIN |
Yes |
| LS-BL554901-80C |
155Mbps |
1550nm-TX/1490nm-RX |
80km |
DFB/PIN |
Yes |
