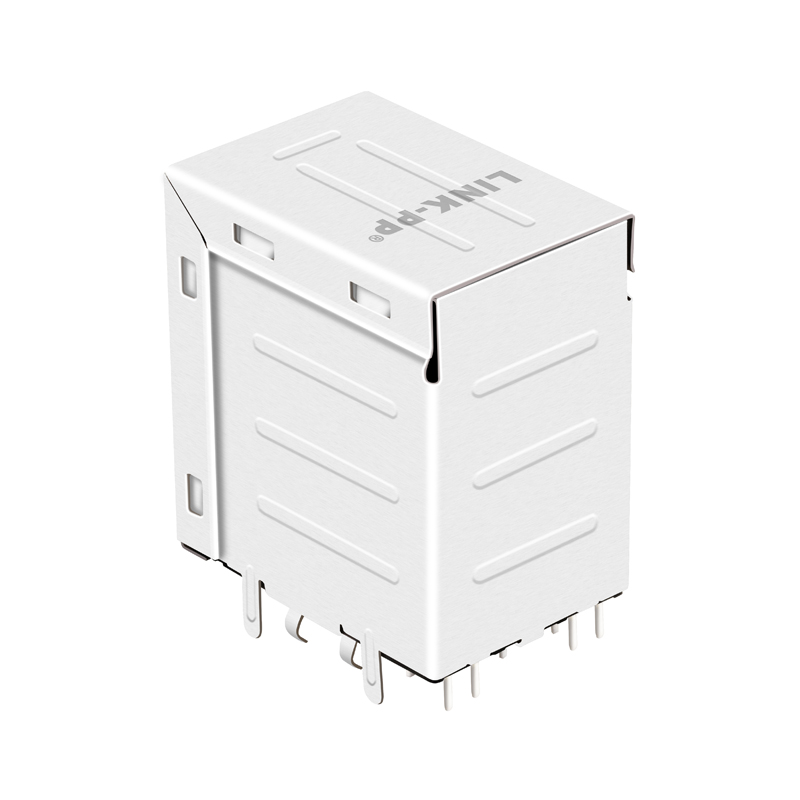

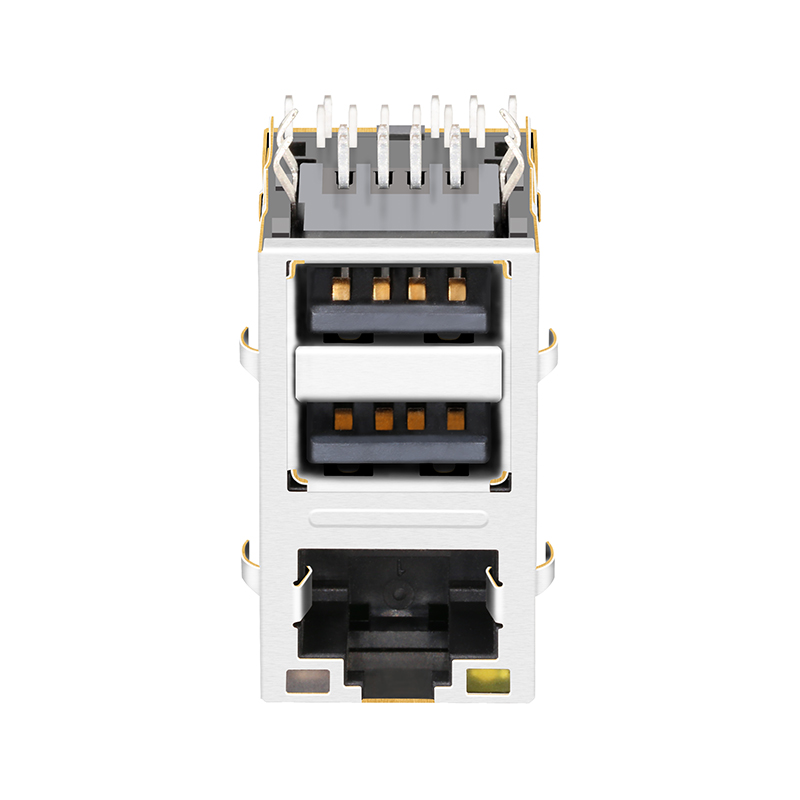

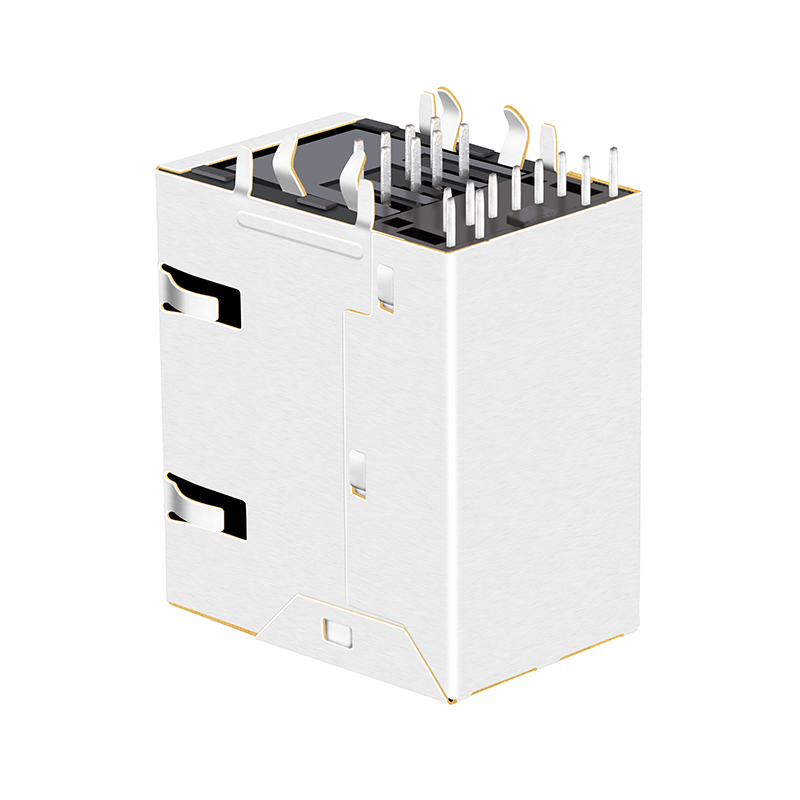

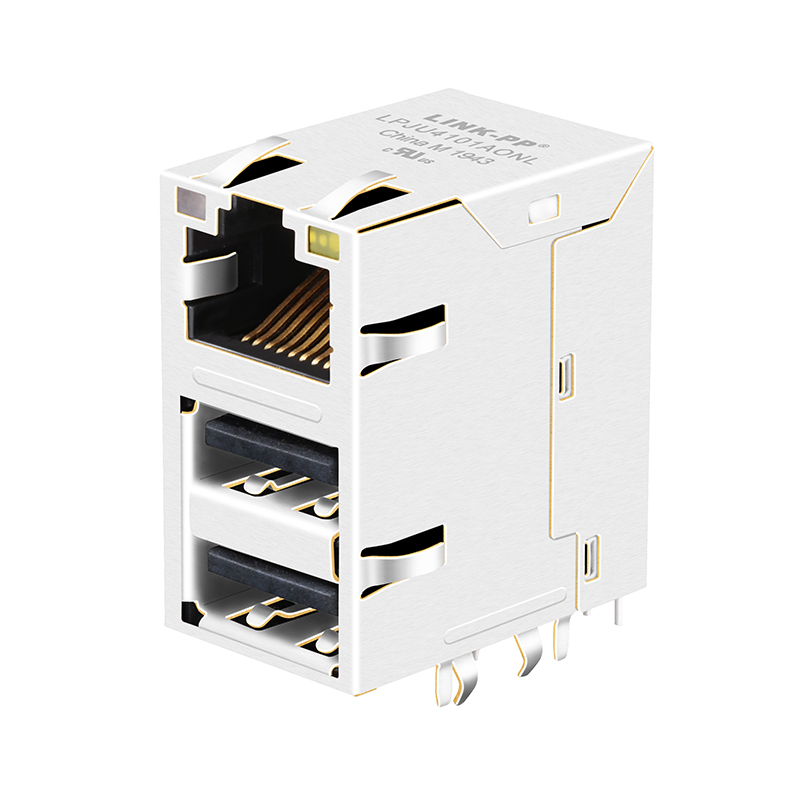

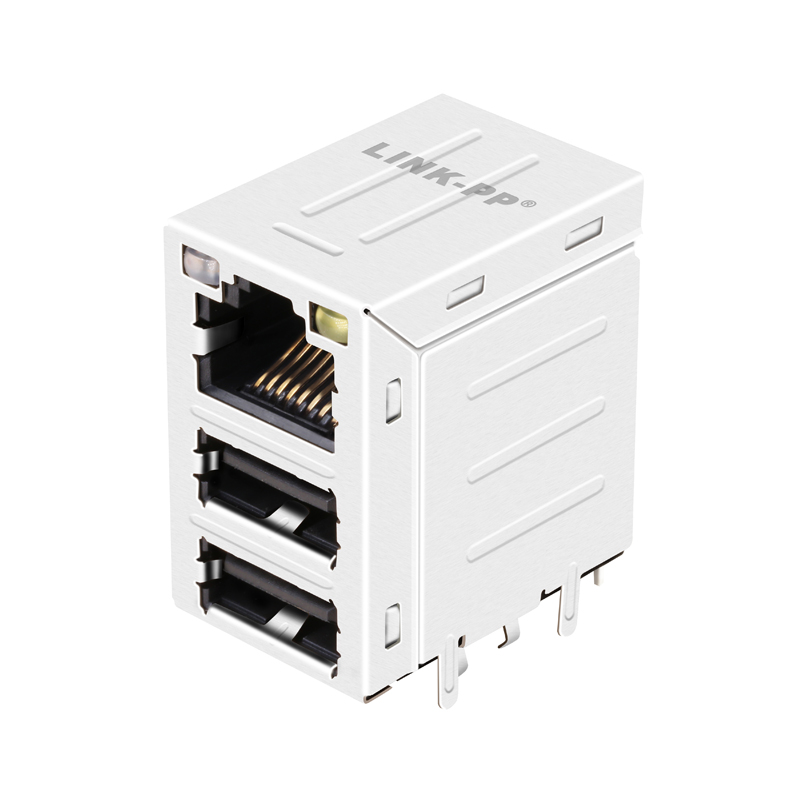

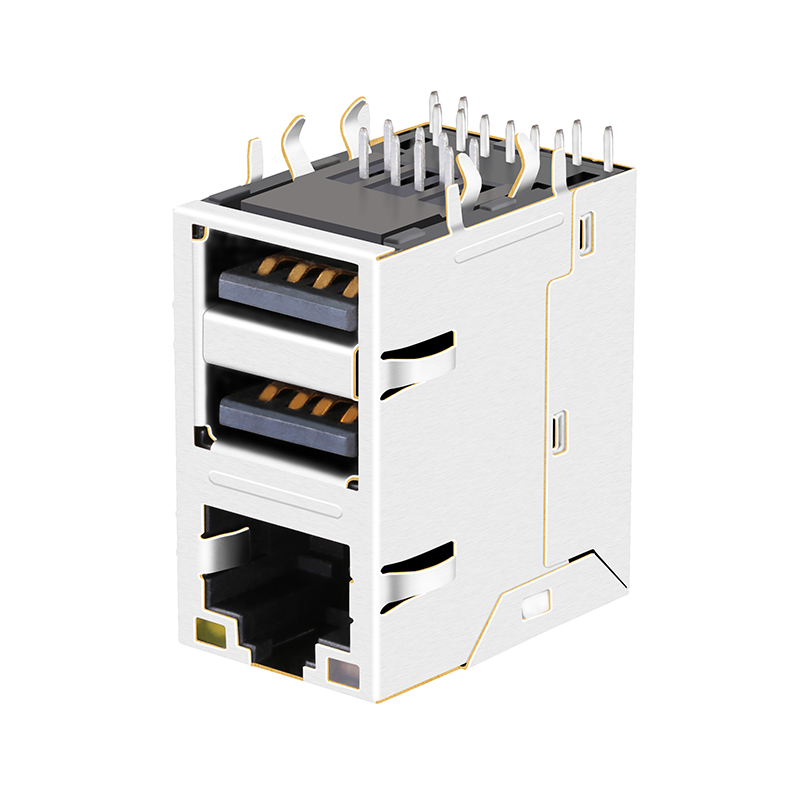

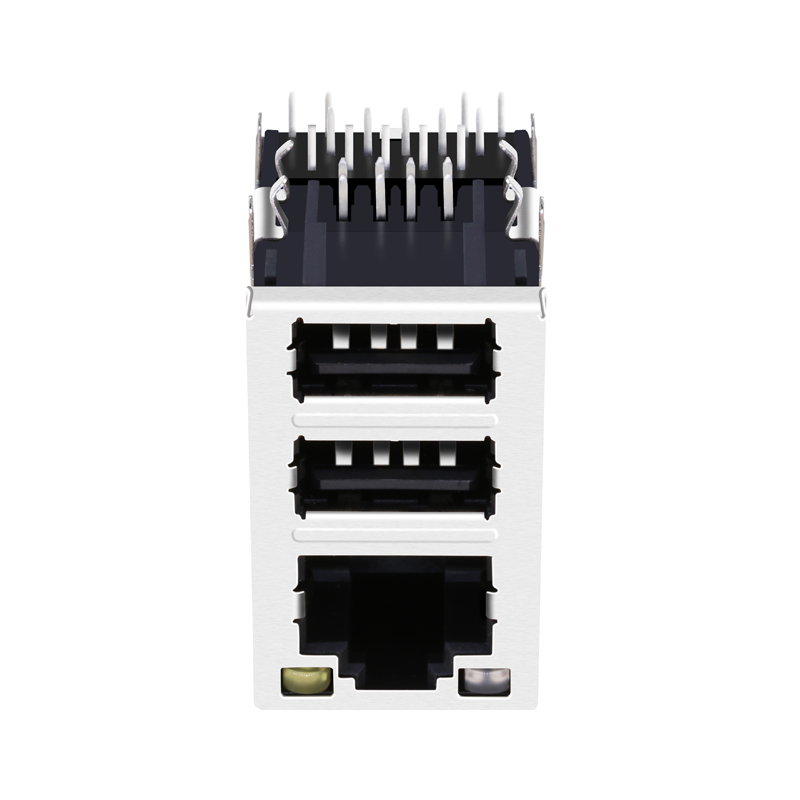

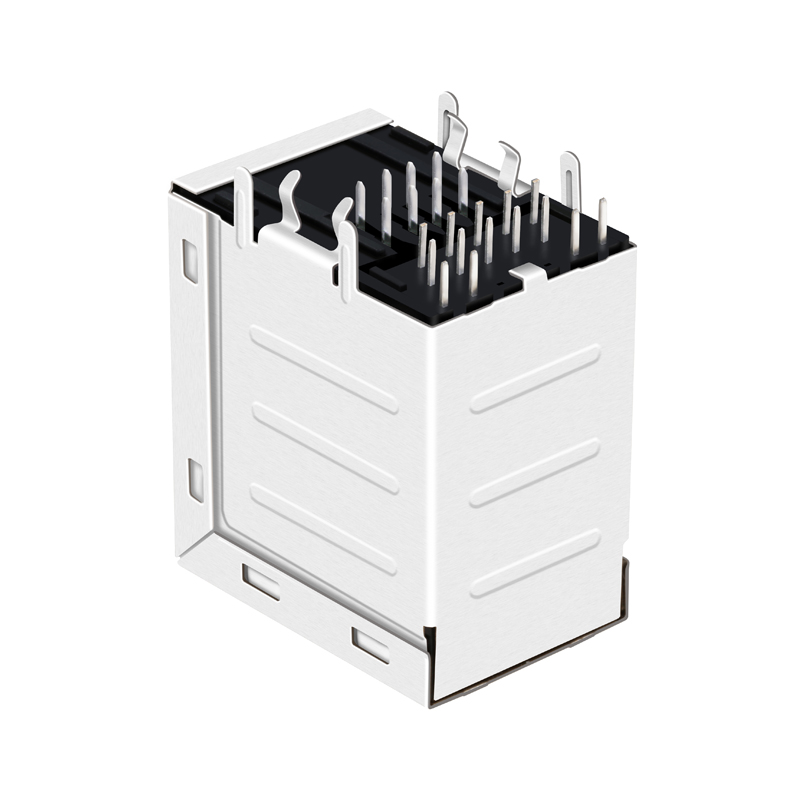

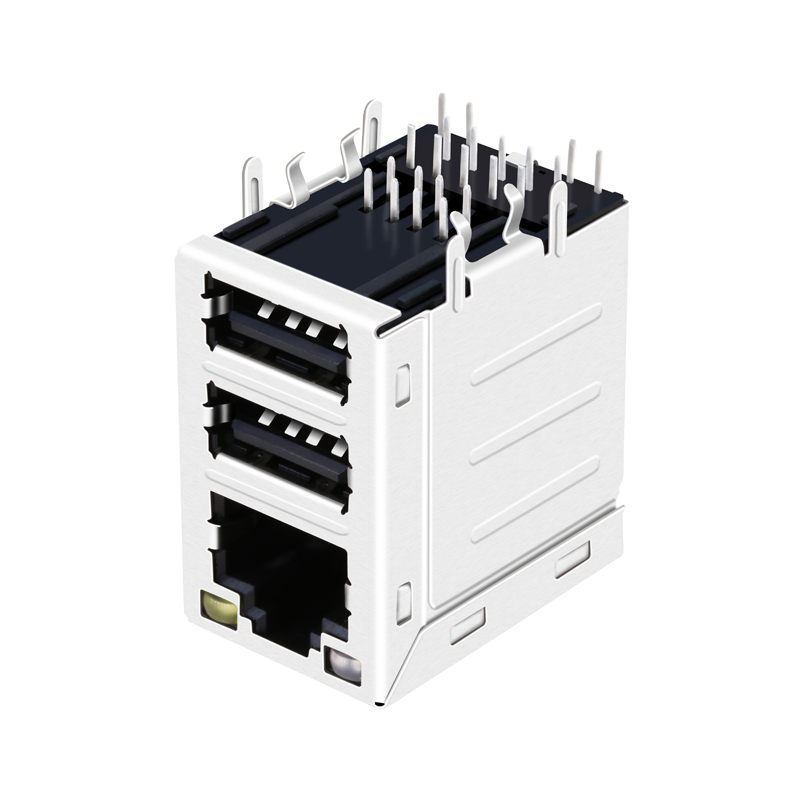

08C2-1X1T-03 08C2-1X1T-03-F 100 Base-T Single Port RJ45 Female Jack WITH Dual USB
Products Description
Item
RJ45 Female Connector
Manufacturer Part Number
LPJU4101AONL
Cross Part Number
JY0-0016NL
Part Status
Active
Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet)
Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 Port
Speed
10/100 Base-T
Latch
Up
Cores per Port
4
Orientation
90° Angle (Right)
PCB Mount Angle
SIDE ENTRY
Shield EMI Tabs
With
LED Option
Green/Yellow
PCB
FR4
PCB Retaining Post
T POST
Temperature
0℃ TO 70℃
Bst Circuit
Yes
AutomDX
YES
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Turns Ratio RX/TX
1CT:1CT
Configuration RX/TX
T,C
